HMT070MEE-D

HMT070MEE-D

LCD Module User Manual

Prepared by:

Checked by:

Approved by:

Chenzhonghua

Date: 2025-03-14

Date:

Rev. Descriptions

Edit

Release Date

0.1

Preliminary release

Chenzhonghua 2025-03-14

URL: www.topwaydisplay.com

Document Name: HMT070MEE-D-Manual-Rev0.1.doc

Page: 1 of 11

TOPWAY

LCD Module User Manual

HMT070MEE-D

Table of Content

1 Basic Specification .......................................................................................................................................... 3

1.1 General Specification..................................................................................................................................3

1.2 Block Diagram.............................................................................................................................................3

1.3 Terminal Function....................................................................................................................................... 4

2 Absolute Maximum Ratings............................................................................................................................4

3 Electrical Characteristics ................................................................................................................................5

3.1 DC Characteristics...................................................................................................................................... 5

4 Function Specifications.................................................................................................................................. 5

4.1 Basic Operation Function Descriptions .......................................................................................................5

4.2 Quick Start Guide........................................................................................................................................6

4.3 Command Descriptions ...............................................................................................................................6

5 Optical Characteristics ....................................................................................................................................7

6 LCD Module Design and Handling Precautions........................................................................................... 8

7 CTP Mounting Instructions.............................................................................................................................9

Warranty......................................................................................................................................................11

URL: www.topwaydisplay.com

Document Name: HMT070MEE-D-Manual-Rev0.1.doc

Page: 2 of 11

TOPWAY

LCD Module User Manual

HMT070MEE-D

1 Basic Specification

TOPWAY HMT070MEE-D is a Smart TFT Module with 32bit MCU on board. Its graphics engine provides

numbers of outstanding features. It supports TOPWAY SGTools for preload and pre-design display

interface that simplify the host operation and development time. Suitable for industry control,

instrumentation, medical electronics, power electric equipment applications.

1.1 General Specification

Screen Size( Diag onal) :

7.0”

Resolution :

1024( RGB) x600

Color Depth :

65k color ( 16bit)

Pixel Configuration :

RGB Stripe

Display Mode :

Transmissive / Normal Black

Viewing Direction :

Full

Outline Dimension :

185.9 x 109.5 x 30.1 (max)(mm)

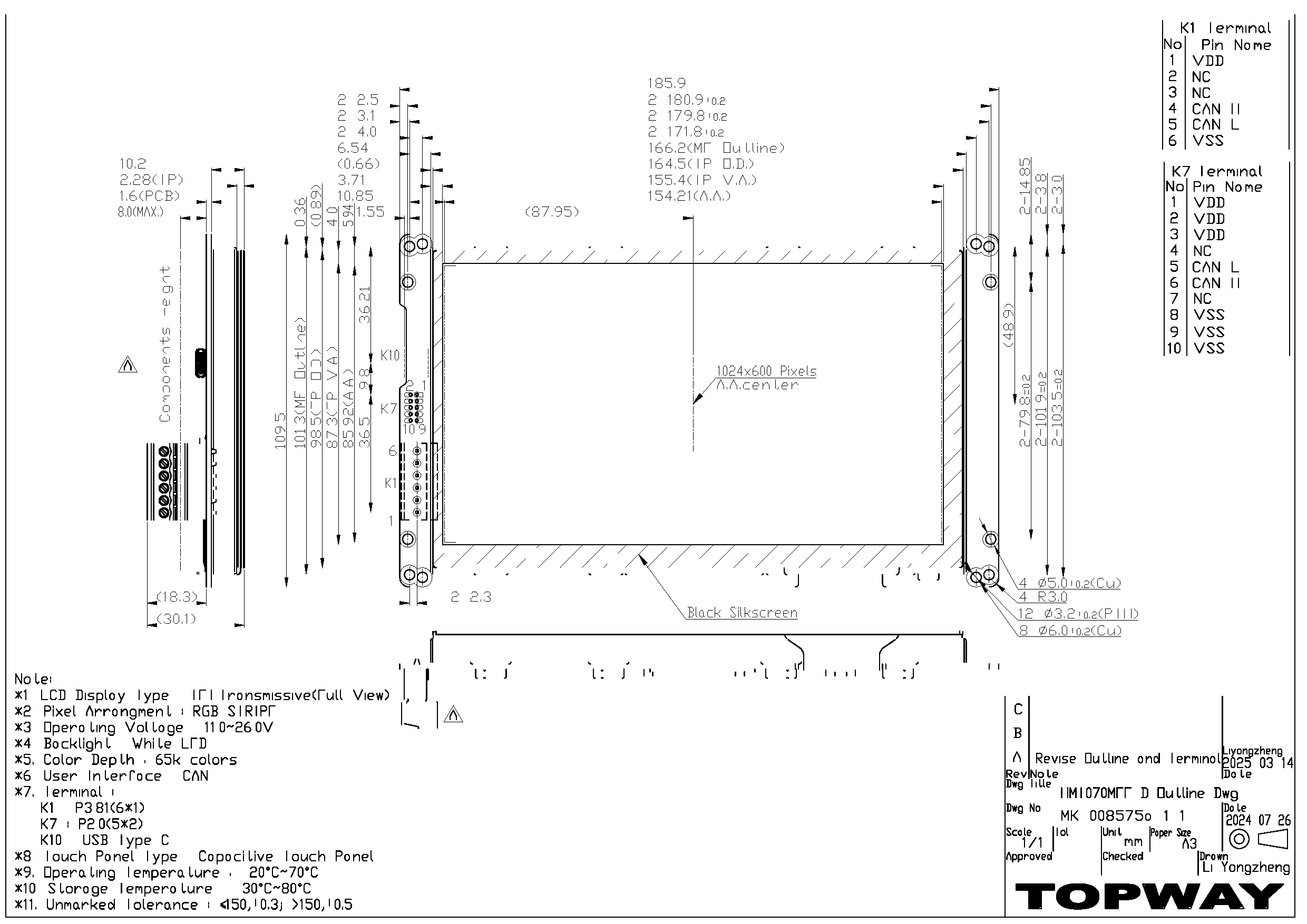

(see attached drawing for details)

Active Area :

154.21 x 85.92 (mm)

Backlig ht :

LED

Surface Treatment :

Anti-Glare Treatment

Touch Panel:

Capacitive Touch

Command I/F:

CAN

Proj ect Download:

by PC( USB) , U-Drive ( with OTG cable)

Operating Temperature :

-20 ~ +70°C

Storage Temperature :

-30 ~ +80°C

Highlight :

RTC without battery, Support 90 degrees rotation,

Lua script engine,Buzzer,256MB flash

Note:

*1. Color tone may slightly change by Temperature and Driving Condition.

1.2 Block Diagram

Cap acitive Touch Panel

7.0” TFT

1024 x600 pixels

K1,K7

CAB_H,CAN_L

Display Function Controller

VDD, VSS

with RTC

K10

D-, D+, ID

Flash

Memory

RAM

VUSB, VSS

URL: www.topwaydisplay.com

Document Name: HMT070MEE-D-Manual-Rev0.1.doc

Page: 3 of 11

TOPWAY

LCD Module User Manual

HMT070MEE-D

1.3 Terminal Function

CAN Interface Terminal (K1)

Pin No.

Pin Name

I/O Descriptions

VDD

Power supply ( 11.0~26.0 V)

Not connected

CAN_H

I/O

CAN Differential sig nal H

CAN_L

I/O

CAN Differential sig nal L

VSS

Ground, (0V)

CAN Interface Terminal (K7)

Pin No.

Pin Name

I/O Descriptions

1,2,3

VDD

Power supply ( 11.0~26.0 V)

4,7

Not connected

CAN_L

I/O

CAN Differential signal L

CAN_H

I/O

CAN Differential signal H

8,9,10

VSS

Ground, (0V)

Note.

*1. User data and commands transfer through this terminal.

USB Interface Terminal (K10)

Pin No.

Pin Name

I/O Descriptions

A1,A12,B1,B12

VSS

Ground, ( 0V)

A4,A9,B4,B9

VUSB

Power supply( 5.0 V)

A5,B5

USB_ID,1:Client,0:HOST

A6,B6

D+

I/O

USB DATA positive sig nal

A7,B7

D-

I/O

USB DATA neg ative sig nal

A8,B8

Not connected

Note.

*1. TML files and image files preload through this terminal.

*2. Standard “USB-drive” functions provided.

*3. During the files transfer, all others display functions will be suspended.

2 Absolute Maximum Ratings

Items

Symbol

Min.

Max.

Unit Condition

Power Supply voltage

V DD

-0.3

28.0

Operating Temperature

T OP

-20

 C

No Condensation

Storage Temperature

T ST

-30

 C

No Condensation

Note:

*1. This rating applies to all parts of the module and should not be exceeded.

*2. The operating temperature only guarantees operation of the circuit. The contrast, response speed,

and the other specification related to electro-optical display quality is determined at the room temperature, T OP =25 ℃

*3. Ambient temperature when the backlight is lit (reference value)

*4. Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional

operation of this device at other conditions beyond those listed in the specification is not implied and prolonged

exposure to extreme conditions may affect device reliability.

URL: www.topwaydisplay.com

Document Name: HMT070MEE-D-Manual-Rev0.1.doc

Page: 4 of 11

TOPWAY

LCD Module User Manual

HMT070MEE-D

3 Electrical Characteristics

3.1 DC Characteristics

VSS=0V, VDD=12.0V,T OP =25  C

Items

Symbol MIN.

TYP. MAX. Unit Applicable Pin/FUNC

Operating Voltag e

V DD

11.0

12.0

26.0

VDD

Operating Current

I DD

315

mA VDD (*2)

Operating Current (USB)

I VUSB

150

mA VUSB(*3)

Note.

*1. Normal display condition

*2.USB-drive(high-speed)

4 Function Specifications

4.1 Basic Operation Function Descriptions

HMT070MEE-D

Touch Panel

TML files

Picture files

ICONS files

Custom

Memories

TFT Display

HOST

VP variables

Control and Draw Engine

- TML files, Picture files, ICON files are stored inside FLASH memory area.

They are preloaded to HMT070MEE-D for stand alone interface use.

- Those files are preloaded via USB interface as an USB drive.

- All the interface flow and the touch response are based on the preloaded TML files

- VP variables memory is inside RAM area,

it provides real time access via CAN by the HOST or display onto the TFT by TML file.

- Custom Memories are inside FLASH memory area

It can be accessed via CAN interface by the HOST.

- Control and Draw Engine executes HOST commands and response respectively

- It also reports the real time Touch Key number to the HOST.

URL: www.topwaydisplay.com

Document Name: HMT070MEE-D-Manual-Rev0.1.doc

Page: 5 of 11

TOPWAY

LCD Module User Manual

HMT070MEE-D

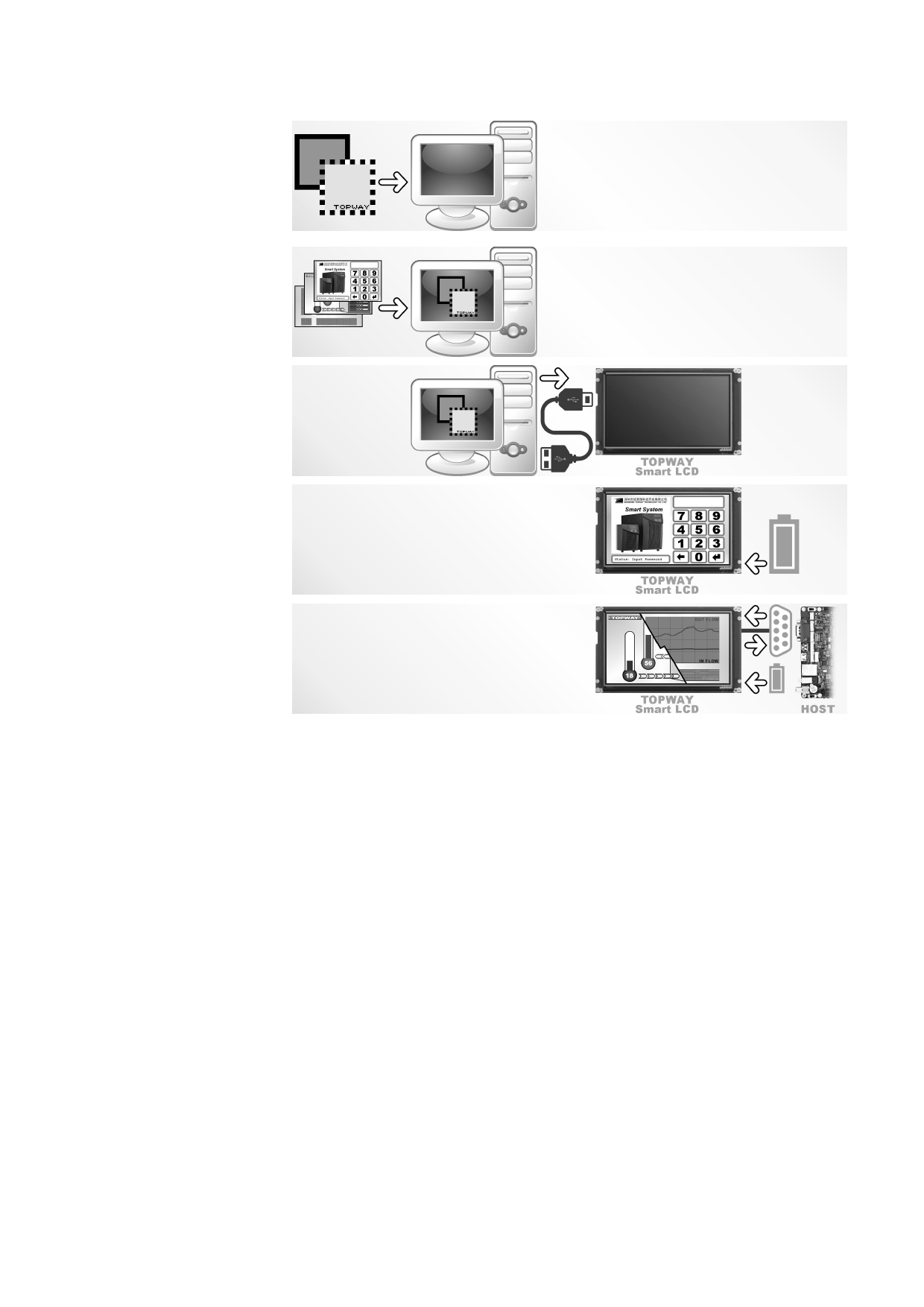

4.2 Quick Start Guide

Install TOPWAY

Graphics Editor

Import pictures

2. design UI flow

Download to

Smart LCD

4. power on &

display

Connect to

host Show

real time

data

4.3 Command Descriptions

Please refer to “SMART LCD CAN Interface Reference Note”.

URL: www.topwaydisplay.com

Document Name: HMT070MEE-D-Manual-Rev0.1.doc

Page: 6 of 11

TOPWAY

LCD Module User Manual

HMT070MEE-D

5 Optical Characteristics

Item

Symbol

Condition

MIN.

TYP.

MAX.

UNIT

Note.

θ L

9 o’clock

Viewing angle

θ R

3 o’clock

(CR ≥ 10)

degree

θ T

12 o’clock

θ B

6 o’clock

T f

Response Time

T r

Contrast ratio

600

800

Normal

W X

0.27

0.33

Color chromaticlty

θ=0 o

W Y

0.27

0.33

Luminance

350

cd/m 2

Luminance uniformity

Y U

Note:

*1. Definition of Contrast Ratio

The contrast ratio could be calculate by the following expression:

Contrast Ratio (CR) = Luminanc with all pixels white / Luminance with all pixels black

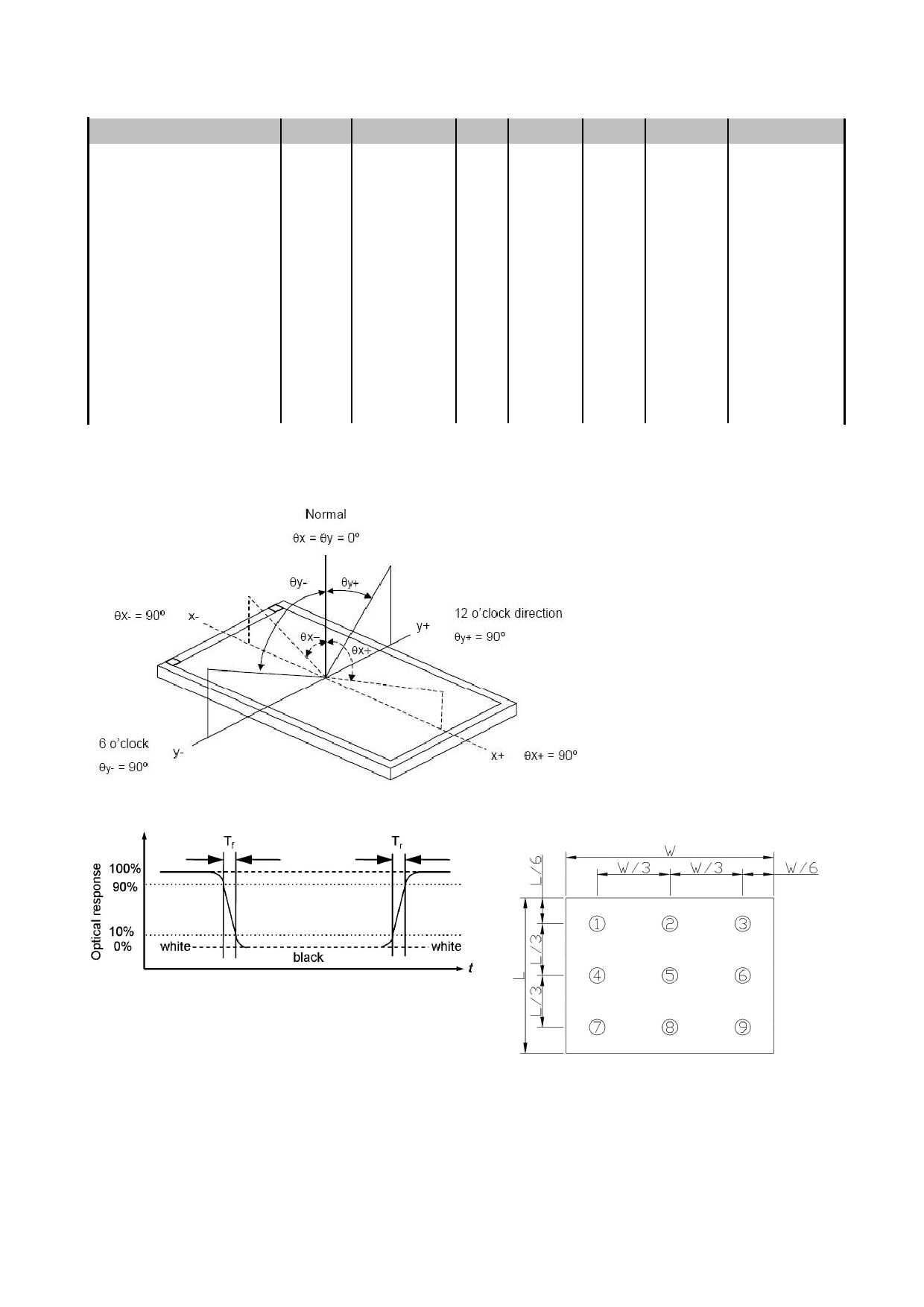

*2 Definition of Viewing Angle

*3 Definition of response time

*4 Definition of Luminance Uniformity

Luminance uniformity (Lu)=

Min. Luminance form pt1~pt9 / Max Luminance form Pt1~pt9

URL: www.topwaydisplay.com

Document Name: HMT070MEE-D-Manual-Rev0.1.doc

Page: 7 of 11

TOPWAY

LCD Module User Manual

HMT070MEE-D

6 LCD Module Design and

6 液晶显示模块设计和使用须知

Handling Precautions

- Please ensure V0, VCOM is adjustable, to enable LCD - 请注意 V0, VCOM 的设定, 以确保液晶显示模块在不同

module get the best contrast ratio under different

的使用温度下以及在不同的视角和位置观察模块显示，

temperatures, view angles and positions.

均能达到最佳对比度，请务必将应用电路上设置为对比

度可调。

- Normally display quality should be judged under the - 请注意液晶显示模块的显示品质判定是指在正常对比度

best contrast ratio within viewable area. Unexpected

下以及视窗(V.A)范围内进行的，非正常对比度下液晶

display pattern may come out under abnormal contrast

可能会出现非预期的显示不良，应注意区分。

ratio.

- Never operate the LCD module exceed the absolute - 请勿在最大额定值以外使用液晶显示模块。

maximum ratings.

- Never apply signal to the LCD module without power - 请勿在没有接通电源的条件下，给液晶显示模块输送信

supply.( No Hot-plugging)

号。(禁止热插拔)

- WARNING! Be aware of (if any) frame grounding of the - 警告!使用前需评估液晶显示模块的金属框架/壳体地

LCD Module connection with the system which may

(如有)与整机关系和安全性(如: 漏电安全性，等)。

cause safety Issue(e.g. electric shock,etc).

- Keep signal line as short as possible to reduce external - 请尽可能缩短信号线的连接，以避免对液晶显示模块的

noise interference.

信号干扰。

- IC chip (e.g. TAB or COG) is sensitive to light. Strong - 集成电路因 IC 芯片(如 TAB 或 COG)对紫外线极为敏

light might cause malfunction. Light sealing structure

感，强光环境下可能会引起液晶显示模块功能失效，故

casing is recommended.

应采用不透光的外壳。

- Make sure there is enough space (with cushion) - 请在液晶显示模块与外壳之间保留足够的空间(可使用

between case and LCD panel, to prevent external force

衬垫)，以缓冲外力对液晶显示模块的损坏或因受力不

passed on to the panel; otherwise that may cause

均而产生的显示不匀等异常现象。

damage to the LCD and degrade its display result.

- Avoid showing a display pattern on screen for a long - 避免液晶显示屏在某一画面下长时间点亮，否则有出现

time (continuous ON segment).

残影的风险；请通过软件每隔一段时间改变一次画面。

- LCD module reliability may be reduced by temperature - 液晶显示模块的可靠性可能因温度冲击而降低。

shock.

- When storing and operating LCD module, avoids - 请勿在阳光直射、高湿、高温或低温下储存和使用液晶

exposure to direct sunlight, high humidity, high or low

显示模块，这将造成液晶显示模块的损坏或失效。

temperature. They may damage or degrade the LCD

module.

- Never leave LCD module in extreme condition - 请勿在极限环境(最大/最小存储/工作温度)下使用或放

(max./min storage/operate temperature) for more than

置液晶显示模块超过 48 小时以上。

48hr.

- Recommend LCD module storage conditions is - 液晶显示模块建议存储条件为: 0 C~40 C <80%RH 。

0 C~40 C <80%RH.

- LCD module should be stored in the room without acid, - 请勿让液晶显示模块存储于带有酸性, 碱性, 有害气

alkali and harmful gas.

体环境之中。

- Avoid dropping & violent shocking during - 在运输过程中, 请勿让液晶显示模块跌落与猛烈震动,

transportation, and no excessive pressure press,

同时避免异常挤压, 高湿度, 与阳光照射.

moisture and sunlight.

- LCD module can be easily damaged by static - 液晶显示模块极易受静电损坏，请务必保证液晶显示模

electricity. Please maintain an optimum anti-static

块在防静电的工作环境中使用或保存。(如: 烙铁正确

working environment to protect the LCD module. (eg.

接地,等)

ground the soldering irons properly)

- Be sure to ground the body when handling LCD - 拿取液晶显示模块时需注意操作人员的接地情况。

module.

- Only hold LCD module by its sides. Never hold LCD - 请手持液晶显示模块的边沿取放模块，防止热压纸或

module by applying force on the heat seal or TAB.

TAB 部位受力。

- When soldering, control the temperature and duration - 焊接液晶模块时，请注意控制烙铁的温度、焊接时间，

avoid damaging the backlight guide or diffuser which

以免烫坏导光板或偏光片，导致显示不匀等不良现象发

might degrade the display result such as uneven

生。

display.

URL: www.topwaydisplay.com

Document Name: HMT070MEE-D-Manual-Rev0.1.doc

Page: 8 of 11

TOPWAY

LCD Module User Manual

HMT070MEE-D

- Never let LCD module contact with corrosive liquids, - 请勿使用洗板水等腐蚀性液体接触液晶模块，以免腐蚀

which might cause damage to the backlight guide or

导光板或模块电路。

the electric circuit of LCD module.

- Only clean LCD with a soft dry cloth, Isopropyl Alcohol - 仅可使用柔软的干布, 异丙醇或乙醇清洁液晶屏表面，

or Ethyl Alcohol. Other solvents (e.g. water) may

其他任何溶剂(如:水)都有可能损坏液晶模块。

damage the LCD.

- Never add force to components of LCD module. It may - 请勿挤压液晶显示模块上的元器件，以避免产生潜在的

cause invisible damage or degrade the module's

损坏或失效而影响产品可靠性。

reliability.

- When mounting LCD module, please make sure it is - 装配液晶显示模块时，请务必注意避免液晶显示模块的

free from twisting, warping and bending.

扭曲或变形。

- Do not add excessive force on surface of LCD, which - 请勿挤压液晶显示屏表面，这将导致显示颜色的异常。

may cause the display color change abnormally.

- LCD panel is made with glass. Any mechanical shock - 液晶屏由玻璃制作而成，任何机械碰撞(如从高处跌落)

(e.g. dropping from high place) will damage the LCD

均有可能损坏液晶显示模块。

module.

- Protective film is attached on LCD screen. Be careful - 液晶屏表面带有保护膜, 揭除保护膜时需要注意可能产

when peeling off this protective film, since static

生的静电。

electricity may be generated.

- Polarizer on LCD gets scratched easily. If possible, do - 因液晶显示屏表面的偏光片极易划伤，安装完成之前请

not remove LCD protective film until the last step of

尽量不要揭下保护膜。

installation.

- When peeling off protective film from LCD, static - 请缓慢揭除保护膜，在此过程中液晶显示屏上可能会产

charge may cause abnormal display pattern. The

生静电线，此为正常情况，可在短时间内消失。

symptom is normal, and it will turn back to normal in a

short while.

- LCD panel has sharp edges, please handle with care.

- 请注意避免被液晶显示屏的边缘割伤。

- Never attempt to disassemble or rework LCD module.

- 请不要试图拆卸或改造液晶显示模块。

- If display panel is damaged and liquid crystal - 当液晶显示屏出现破裂, 内部液晶液体可能流出; 相关

substance leaks out, be sure not to get any in your

液体不可吞吃, 绝对不可接触嘴巴, 如接触到皮肤或衣

mouth, if the substance comes into contact with your

服, 请使用肥皂与清水彻底清洗.

skin or clothes promptly wash it off using soap and

water.

7 CTP Mounting Instructions

7 电容触摸屏安装指导

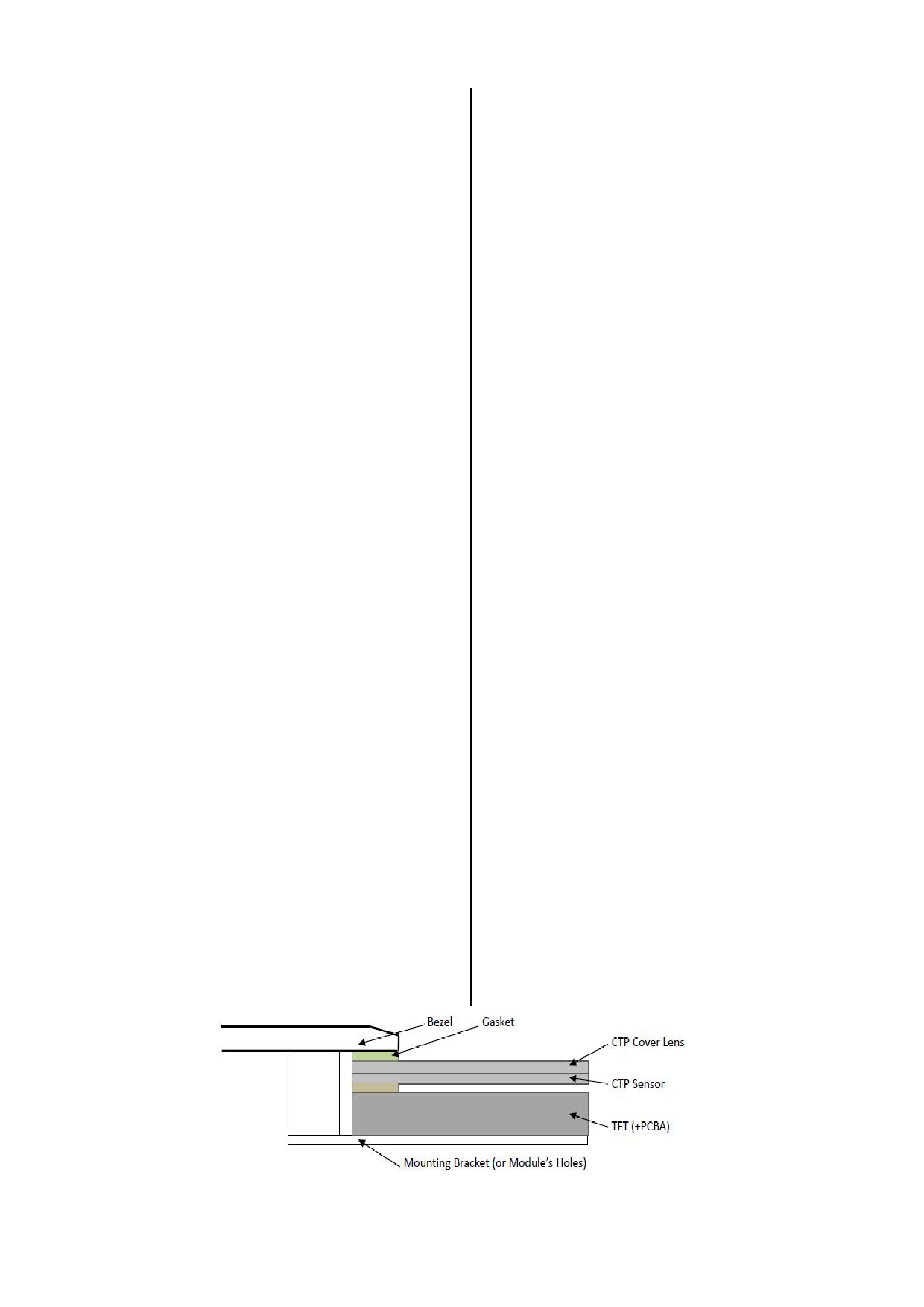

7.1 Bezel Mounting (Figure 1)

7.1 面框安装（附图 1）

- The bezel window should be bigger than the CTP

- 客户面框窗口应大于 CTP 动作区域，各边离动作区应≥

active area. It should be ≥ 0.5mm each side.

0.5mm.

- Gasket should be installed between the bezel and the

- 面框与 CTP 面板间应垫有胶垫，其最终间隙约为 0.5～

CTP surface.

1.0mm.

The final gap should be about 0.5~1.0mm.

- It is recommended to provide an additional support

- 建议必要时在背面提供附加支架(例如无安装结构的薄

bracket for backside support when necessary (e.g. slim

型 TFT 模块)，应仅利用适当支撑以保持模块位置.

type TFT module without mounding structure). They

should only provide appropriate support and keep the

module in place.

- The mounting structure should be strong enough to

- 安装结构应具有足够的强度，以防止外部不均匀力或扭

prevent external uneven force or twist act onto the

曲力作用到模块上.

module.

Figure

URL: www.topwaydisplay.com

Document Name: HMT070MEE-D-Manual-Rev0.1.doc

Page: 9 of 11

TOPWAY

LCD Module User Manual

HMT070MEE-D

7.2 Surface Mounting (Figure 2)

7.2 嵌入安装（附图 2）

- As the CTP assembling on the countersink area with - 客户面框应具有使用双面胶粘贴 CTP 的结构沉台面，其

double side adhesive.

粘贴面要求平整且洁净无污以保证粘贴牢靠.

The countersink area should be flat and clean to

ensure the double side adhesive installation result.

- The Bezel is recommend to keep a gap ( ≥ 0.3mm each - 考虑到制作误差，建议面框与 CTP 盖板之间四周留有≥

side) around the cover lens for tolerance.

0.3mm 间隙.

- It is recommended to provide an additional support - 建议必要时在背面提供垫有胶垫附加支架(例如无安装

bracket with gasket for backside support when

结构的 TFT 模块)，应仅利用适当支撑以保持模块位置.

necessary (e.g.

TFT module without mounding

structure). They should only provide appropriate

support and keep the module in place.

- The mounting structure should be strong enough to - 安装结构应具有足够的强度，以防止外部不均匀力或扭

prevent external uneven force or twist act onto the

曲力作用到模块上。

module

Figure 2

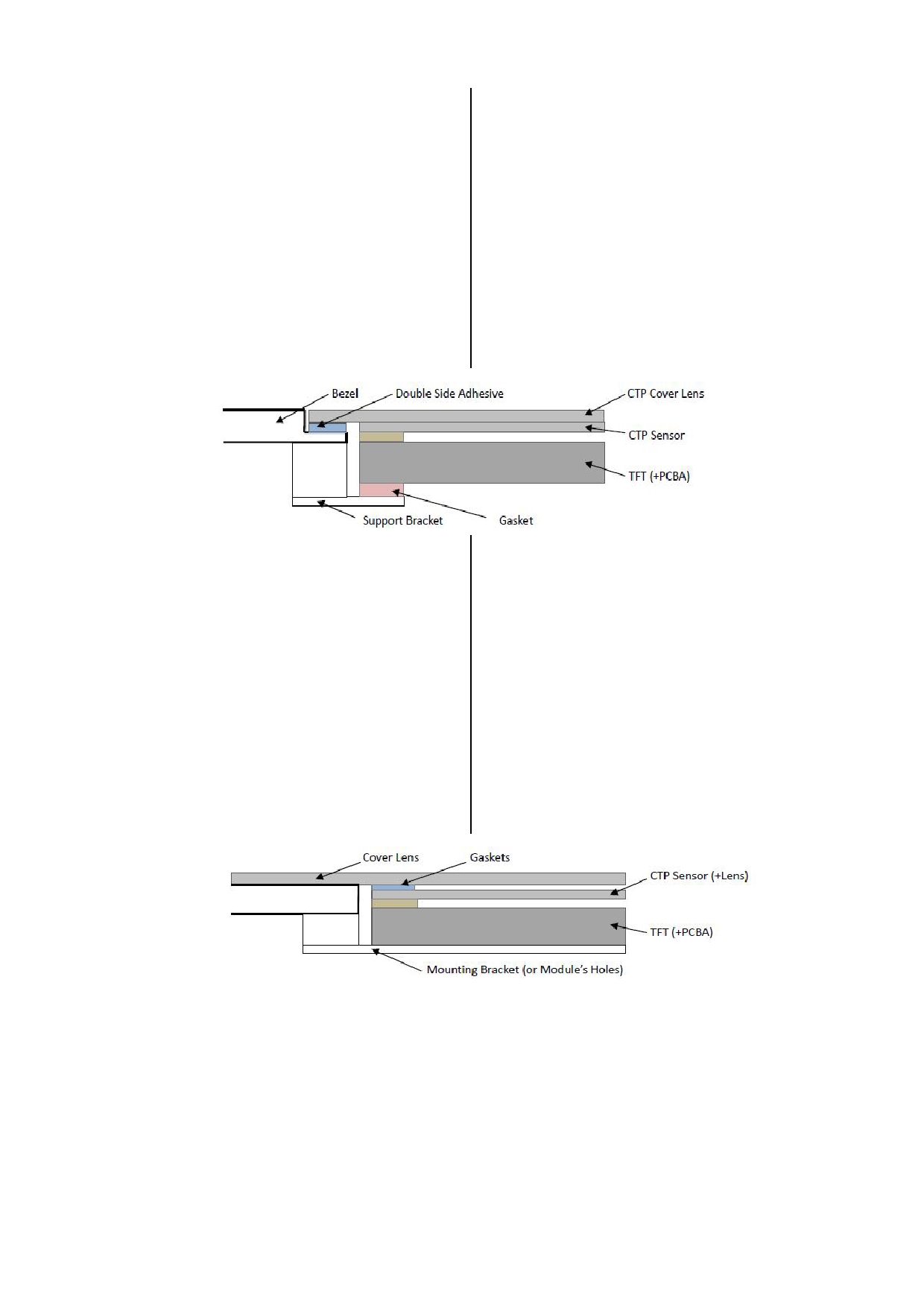

7.3 Additional Cover Lens Mounting (Figure 3)

7.3 覆加盖板（附图 3）

- For the case of additional cover Lens mounting, it is - 需要覆加玻璃盖板的安装，为确保其功能，有必要查看

necessary to recheck with the CTP specification about

产品规格书中有关盖板材料和厚度的说明.

the material and thickness to ensure the functionality.

- It should keep a 0.2~0.3mm gap between the cover - 玻璃盖板与 CTP 表面之间应留有 0.2～0.3mm 间隙.

lens and the CTP surface..

- The cover lens window should be bigger than the active - 玻璃盖板视窗应大于 CTP 动作区域，各边离动作区应≥

area of the CTP.It should be ≥ 0.5mm each side.

0.5mm。

- It is recommended to provide an additional support - 建议必要时在背面提供附加支架(例如无安装结构的薄

bracket for backside support when necessary (e.g. slim

型 TFT 模块)，应仅利用适当支撑以保持模块位置.

type TFT module without mounding structure). They

should only provide appropriate support and keep the

module in place.

- The mounting structure should be strong enough to - 安装结构应具有足够的强度，以防止外部不均匀力或扭

prevent external uneven force or twist act onto the

曲力作用到模块上.

module.

Figure 3

URL: www.topwaydisplay.com

Document Name: HMT070MEE-D-Manual-Rev0.1.doc

Page: 10 of 11

TOPWAY

LCD Module User Manual

HMT070MEE-D

Warranty

This product has been manufactured to our company’s specifications as a part for use in your company’s general

electronic products. It is guaranteed to perform according to delivery specifications. For any other use apart from general

electronic equipment, we cannot take responsibility if the product is used in medical devices, nuclear power control

equipment, aerospace equipment, fire and security systems, or any other applications in which there is a direct risk to

human life and where extremely high levels of reliability are required. If the product is to be used in any of the above

applications, we will need to enter into a separate product liability agreement.

- We cannot accept responsibility for any defect, which may arise form additional manufacturing of the product

(including disassembly and reassembly), after product delivery.

- We cannot accept responsibility for any defect, which may arise after the application of strong external force to the

product.

- We cannot accept responsibility for any defect, which may arise due to the application of static electricity after the

product has passed our company’s acceptance inspection procedures.

- When the product is in CCFL models, CCFL service life and brightness will vary according to the performance of the

inverter used, leaks, etc. We cannot accept responsibility for product performance, reliability, or defect, which may

arise.

- We cannot accept responsibility for intellectual property of a third part, which may arise through the application of our

product to our assembly with exception to those issues relating directly to the structure or method of manufacturing of

our product.

URL: www.topwaydisplay.com

Document Name: HMT070MEE-D-Manual-Rev0.1.doc

Page: 11 of 11

Smart LCD

CAN Interface Protocol Reference

Prepared by:

Checked by:

Approved by:

Date: 2025-03-07

Date:

Rev. Descriptions

Edit

Release Date

0.1

- Preliminary Draft release

liwenming

2025-03-07

URL: www.topwaydisplay.com

Document Name:SMART LCD CAN Interface Reference Note Rev0.1.doc

Page: 1 of 19

TOPWAY

CAN Interface Reference

Table of Content

1 Basic..................................................................................................................................................................3

2 Message Transmission Format......................................................................................................................3

3 Communication Type...................................................................................................................................... 3

3.1 Communication type table.......................................................................................................................... 3

3.2 NMT............................................................................................................................................................ 3

3.2.1 Node Control........................................................................................................................................3

3.2.2 Heartbeat............................................................................................................................................. 4

3.2.3 NMT Boot-up........................................................................................................................................4

3.3 SYNC.......................................................................................................................................................... 4

3.4 PDO ............................................................................................................................................................ 4

3.4.1 PDO communication parameter.......................................................................................................... 4

3.4.2 PDO mapping parameter.....................................................................................................................5

3.4.3 TPDO communication format.............................................................................................................. 5

3.4.4 RPDO communication format..............................................................................................................5

3.5 SDO ............................................................................................................................................................ 6

3.5.1 Expedited transfer................................................................................................................................6

3.5.2 Normal (segmented) transfer...............................................................................................................6

3.5.3 Block transfer....................................................................................................................................... 8

3.6 LSS ........................................................................................................................................................... 10

3.6.1 Switch state global service................................................................................................................ 10

3.6.2 Configuration services ....................................................................................................................... 10

Appendix 1: Object dictionary.........................................................................................................................12

Appendix 2: SDO abort code........................................................................................................................... 19

URL: www.topwaydisplay.com

Document Name:SMART LCD CAN Interface Reference Note Rev0.1.doc

Page: 2 of 19

TOPWAY

CAN Interface Reference

1 Basic

CANopen is a CAN-based communication protocol. Over the CANopen master is able to

communicate with up to 127 slaves. CANopen provides SDO objects and PDO objects for

transferring data and data is stored in object dictionary. The object dictionary is like a table that

holds all network accessible data and it may be read and written to by the master.

The Smart LCD is operated as such a slave device and it uses a standard CANopen protocol (CiA

DS301 v4.02). Appendix 1 provides a description of object dictionary. It allows the adjustment of bit

rates from 10 kbit/s to 1000 kbit/s.

2 Message Transmission Format

CANopen message transmission adopts CAN base frame format (11-bit CAN-ID/COB-ID), which

consist of:

 A 11 bit COB-ID, as the unique identifier for message transmission

 Data field, data to be transmitted (0~8 bytes)

11bit

0~8 Byte

COB-ID

Data

Note.

*1. Numerical data type are transferred using little-endian format.

3 Communication Type

3.1 Communication type table

Communication type

Descriptions

NMT

NMT is used to switch network state and control nodes, these include NMT node

control, heartbeat, and boot up.

SYNC

SYNC message can be used to synchronize the PDO transmissions.

PDO

PDO is used to transmit real-time data, which does not require a response from the

receiving node.

SDO

SDO is used to transmit data and generates a response for each transmission.

LSS

LSS message is used to configure node-ID and Bit rate.

3.2 NMT

3.2.1 Node Control

Node control is used to switch NMT state. The Node control message has the CAN message

identifier and contains 2 bytes. All CANopen slave nodes must be able to receive this message and

act upon its content.

Message issued by the master:

Data

COB-ID

0x000

Node-ID

Note.

*1. zero if addressed at all nodes, or the specific node-ID of the single node addressed with this message.

*2. The switch NMT state descriptions:

Switch NMT state Descriptions

0x01

Switch to Operational

0x02

Switch to stopped

0x80

Switch to Pre-Operational

0x81

Reset application

0x82

Reset communication

URL: www.topwaydisplay.com

Document Name:SMART LCD CAN Interface Reference Note Rev0.1.doc

Page: 3 of 19

TOPWAY

CAN Interface Reference

NMT State Dependent Communication table

Pre-Operational

Operational

Stopped

PDO

YES

SDO

YES

SYNC

YES

EMCY

YES

NMT

YES

LSS

YES

Note.

*1. Yes = executable

3.2.2 Heartbeat

Smart LCD device transmits a heartbeat message cyclically within 1017h Heartbeat Producer Time.

When 1017h is set to a non-zero value, the device sending the packet with one byte of data

indicating the NMT status.

Message issued by Smart LCD:

COB-ID

Data

0x700 + Node-ID

Note.

*1. The default value for heartbeat producer time is 0, it can be configurable via SDO.

*2. The NMT state descriptions:

NMT state Descriptions

0x04

Stopped

0x05

Operational

0x7F

Pre-Operiational

3.2.3 NMT Boot-up

The CANopen Bootup Message is sent by a CANopen device when it starts. This is done to indicate

to host device in the network that it is ready to communicate by other CANopen services.

Message issued by Smart LCD:

COB-ID

Data

0x700 + Node-ID

0x00

3.3 SYNC

Message issued by the master:

COB-ID

Data Length

0x80

Note.

*1. SYNC message can be used to synchronize the PDO transmissions.

3.4 PDO

PDOs (Process data objects) are used to transmit real-time data, typically no larger than 8 bytes.

The transfer of PDO is performed with no protocol overhead. PDO communication is based on a

producer/consumer model, and each PDO has a unique identifier. There are two kinds of use for

PDO: data transmission “TPDO” and the data reception “RPDO”.

Smart LCD provides 4 TPDOs and 4 RPDOs, for each PDO the pair of communication and mapping

parameter is mandatory.

3.4.1 PDO communication parameter

The communication parameters indicate the CAN identifier that is used by this PDO, and the

triggering event that prompts the transmission of the related PDO.

URL: www.topwaydisplay.com

Document Name:SMART LCD CAN Interface Reference Note Rev0.1.doc

Page: 4 of 19

TOPWAY

CAN Interface Reference

The communication parameters for receive PDOs are arranged in the index range from 1400h to

1403h and for transmit PDOs in the range from 1800h to 1803h.

PDO communication parameter table:

Index

Sub_index

Description

Data type

00h

Number of entries

UINT8

01h

COB-ID ： TPDO/RPDO

UINT32

Transmission

RPDO ： 1400h

00h: acyclic Synchronous

UINT8

to 1403h

02h

TPDO ： 1800h

01h~F0h: cyclic Synchronous

to 1803h

FEh/FFh: Asynchronous

03h

Inhibit time(unit: 0.1ms)

UINT16

05h

Event time(unit: ms)

UINT16

06h

SYNC start value

UINT8

If TPDO’s transmission=0, PDO is transmitted during the next "SYNC" after a value change.

If TPDO’s transmission=1~240, PDO is transmitted for each first to 240th "SYNC" regardless of

value changes

If TPDO’s transmission=254/255 and event time > 5ms, PDO is transmitted when every event time

milliseconds

If RPDO’s transmission=254/255, update the received data directly to the application

3.4.2 PDO mapping parameter

The mapping parameters indicate which information of the local object dictionary is supposed to be

transmitted and where the received information is to be stored. The related mapping entries are

managed in the index ranges 1600h to 1603h and 1A00h to 1A03h.

PDO mapping parameter table:

Index

Sub_index

Description

Data type

RPDO ： 1600h

0x00

Number of PDO mapping parameter

UINT8

to 1603h

0x01

PDO Mapping for an application object1 UINT32

TPDO ： 1A00h

...

to 1A03h

0x08

PDO Mapping for an application object8 UINT32

The following table describes the mapping parameters:

bit

…

Description

Index

Sub_index

Object length

Indexes and sub_index determine the location of the mapped object in object dictionary, and the

object length indicates the specific bit length of the object.

Note.

*1. One PDO can map up to 8 objects, and the total bit length of mapping objects is up to 64 bit.

*2. The communication parameter and mapping parameter of TPDO 0 have been defined, it cannot be

changed. It will transmit message containing TPK ID and page ID when touch TPK.

*3. PDO communication can be used only in operational state.

*4. PDO mapping parameters and communication parameters can be configurable via SDO.

3.4.3 TPDO communication format

Message issued by Smart LCD:

COB-ID

Data

TPDO 0 : 0x180 + Node-ID

1~8 Byte

TPDO 1 : 0x280 + Node-ID

1~8 Byte

TPDO 2 : 0x380 + Node-ID

1~8 Byte

TPDO 3 : 0x480 + Node-ID

1~8 Byte

3.4.4 RPDO communication format

Smart LCD receives message issued by the master and update data to object dictionary:

URL: www.topwaydisplay.com

Document Name:SMART LCD CAN Interface Reference Note Rev0.1.doc

Page: 5 of 19

TOPWAY

CAN Interface Reference

COB-ID

Data

RPDO 0 : 0x200 + Node-ID

1~8 Byte

RPDO 1 : 0x300 + Node-ID

1~8 Byte

RPDO 2 : 0x400 + Node-ID

1~8 Byte

RPDO 3 : 0x500 + Node-ID

1~8 Byte

3.5 SDO

SDO (Service data objects) enable access to all entries of a CANopen device's object dictionary.

The SDO transmission is initiated by the client and the server replies. As a server of the SDO, if

Smart LCD receives an SDO message, it will reply an SDO response message. The response

message will indicate if the read/write was successful or not, and will provide an abort code if

unsuccessful.

SDO message format:

COB-ID

Data

0x580+Node-ID/

0x600+Node-ID

Index

Sub_index

(Sub)

Data

Smart LCD support different transmission of the SDO :

 Expedited transfer (data length within 4 bytes)

 Normal (segmented) transfer (data length > 4 bytes)

 Block transfer (data length > 4 bytes)

3.5.1 Expedited transfer

Expedited transfer is used to transfer 4 bytes of data or less.

3.5.1.1 Expedited upload

COB-ID

Master →

0x600+Node-ID 0x40

Index

Sub

0x4F

data

←

0x4B

data

normal

Smart LCD

0x580+Node-ID 0x47

Index

Sub

data

0x43

data

abnormal

0x80

Abort code

Note.

*1. The meaning of the abort code returned is shown in Appendix 2.

*2. “-” = 0x00, the same below

3.5.1.2 Expedited download

COB-ID

0x23

data

0x27

data

Master →

0x600+Node-ID

Index

Sub

0x2B

data

0x2F

data

←

normal

0x60

Smart LCD abnormal

0x580+Node-ID

Index

Sub

0x80

Abort code

3.5.2 Normal (segmented) transfer

The normal (segmented) transfer allows for transmission of data bigger than 4-bytes.

SDO transfer can be split up into:

- Initiate SDO upload / download

- Upload / Download SDO segment

URL: www.topwaydisplay.com

Document Name:SMART LCD CAN Interface Reference Note Rev0.1.doc

Page: 6 of 19

TOPWAY

CAN Interface Reference

3.5.2.1 Normal (segmented) upload

Initiate SDO upload

COB-ID

Master →

0x600+Node-ID

0x40

Index

Sub

←

normal

0x41

Data length

Smart LCD abnormal

0x580+Node-ID

Index

Sub

0x80

Abort code

Note.

*1. Data length is number of bytes to be upload.

Upload segments

COB-ID

Master →

0x600+Node-ID

0x60

←

normal

0x00

Data

Smart LCD abnormal

0x580+Node-ID

0x80

Index

Sub

Abort code

Master →

0x600+Node-ID

0x70

←

normal

0x10

Data

Smart LCD abnormal

0x580+Node-ID

0x80

Index

Sub

Abort code

Note.

*1. the 4 th bit of CS is a flip bit, transmit once for segments and flip once for bits.

Upload the last segment

COB-ID

Master →

0x600+Node-ID 0x60/0x70

0x01/0x11

Data

0x03/0x13

Data

0x05/0x15

Data

←

normal

0x07/0x17

Data

Smart LCD

0x580+Node-ID

0x09/0x19

Data

0x0B/0x1B

Data

0x0D/0x1D Data

abnormal

0x80

Index

Sub

Abort code

Note.

*1. the 4 th bit of byte 0 is a flip bit, transmit once for segments and flip once for bits.

E.g. If 15 bytes of data are uploaded, cs of 1 st segment is 0x00, cs of 2 nd segment is 0x10 and cs of 3 rd

segment is 0x0D.

3.5.2.2 Normal (segmented) download

Initiate SDO download

COB-ID

Master →

0x600+Node-ID

0x21

Index

Sub

Data length

←

normal

0x60

Smart LCD abnormal

0x580+Node-ID

Index

Sub

0x80

Abort code

Note.

*1. data length is number of bytes to be download.

Download segments

COB-ID

Master →

0x600+Node-ID

0x00

Data

←

normal

0x20

Smart LCD abnormal

0x580+Node-ID

0x80

Index

Sub

Abort code

Master →

0x600+Node-ID

0x10

Data

←

normal

0x30

Smart LCD abnormal

0x580+Node-ID

0x80

Index

Sub

Abort code

Note.

*1. the 4 th bit of CS is a flip bit, transmit once for segments and flip once for bits.

URL: www.topwaydisplay.com

Document Name:SMART LCD CAN Interface Reference Note Rev0.1.doc

Page: 7 of 19

TOPWAY

CAN Interface Reference

Download the last segment

COB-ID

0x01/0x11

Data

0x03/0x13

Data

0x05/0x15

Data

Master →

0x600+Node-ID 0x07/0x17

Data

0x09/0x19

Data

0x0B/0x1B

Data

0x0D/0x1D Data

←

normal

0x20/0x30

Smart LCD abnormal

0x580+Node-ID

0x80

Index

Sub

Abort code

Note.

*1. the 4 th bit of byte 0 is a flip bit, transmit once for segments and flip once for bits.

3.5.3 Block transfer

The block transfer allows for transmission of data bigger than 4-bytes. Block transfer is faster than

the segmented transfer for a large set of data.

SDO Block Transfer, which can be split up into

- Initiate block upload / Download

- Upload / Download block

- End block upload / download

3.5.3.1 Block upload

Initiate block upload:

COB-ID

Master →

0x600+Node-ID

0xA0

Index

Sub

←

normal

0xC0

Length

Smart LCD abnormal

0x580+Node-ID

Index

Sub

0x80

Abort code

Master →

0x600+Node-ID

0xA3

Note.

*1. N: number of segments per block (1~127)

*2. Length: number of transmission bytes

Upload blocks(segment 1 ~ segment N):

COB-ID

← Smart LCD

0x580+Node-ID

0x01

Data(segment 1)

← Smart LCD

0x580+Node-ID

0x02

Data(segment 2)

← Smart LCD

0x580+Node-ID

N-1

Data(segment N-1)

← Smart LCD

0x580+Node-ID

Data(segment N)

Master →

0x600+Node-ID

0xA2

Note.

*1. The master send a response at the end of each block.

Upload the last block:

COB-ID

← Smart LCD

0x580+Node-ID

0x01

Data(segment 1)

← Smart LCD

0x580+Node-ID

0x02

Data(segment 2)

← Smart LCD

0x580+Node-ID

m-1

Data(segment m-1)

← Smart LCD

0x580+Node-ID 0x80+m

Data(segment m)

Master →

0x600+Node-ID

0xA2

Note.

*1. The number of segments is m.

*2. The master send a response at the end of each block.

URL: www.topwaydisplay.com

Document Name:SMART LCD CAN Interface Reference Note Rev0.1.doc

Page: 8 of 19

TOPWAY

CAN Interface Reference

End block upload:

COB-ID

←

normal

Smart LCD abnormal

0x580+Node-ID

0x80

Index

Sub

Abort code

Master →

0x600+Node-ID

0xA1

Note.

*1. CS Descriptions:

Descriptions

0xC1

The Number of by tes in last seg ment that do not contain data is 0

0xC5

The Number of by tes in last seg ment that do not contain data is 1

0xC9

The Number of by tes in last seg ment that do not contain data is 2

0xCD

The Number of by tes in last seg ment that do not contain data is 3

0xD1

The Number of by tes in last seg ment that do not contain data is 4

0xD5

The Number of by tes in last seg ment that do not contain data is 5

0xD9

The Number of bytes in last segment that do not contain data is 6

3.5.3.2 Block download

Initiate SDO download:

COB-ID

Master →

0x600+Node-ID

0xC2

Index

Sub Length

←

normal

0xA0

0x10

Smart LCD abnormal

0x580+Node-ID

Index

Sub

0x80

Abort code

Note.

*1. Length: number of transmission bytes

Download blocks(segment 1 ~ segment 16):

COB-ID

Master →

0x600+Node-ID

0x01

Data(segment 1)

Master →

0x600+Node-ID

0x02

Data(segment 2)

Master →

0x600+Node-ID

0x0F

Data(segment 15)

Master →

0x600+Node-ID

0x10

Data(segment 16)

← Smart LCD

0x580+Node-ID

0xA2

0x10 0x10

Note.

*1. Smart LCD send a response at the end of each block.

Download the last block:

COB-ID

Master →

0x600+Node-ID

0x01

Data(segment 1)

Master →

0x600+Node-ID

0x02

Data(segment 2)

Master →

0x600+Node-ID

m-1

Data(segment m-1)

Master →

0x600+Node-ID 0x80+m

Data(segment m)

← Smart LCD

0x580+Node-ID

0xA2

0x10

Note.

*1. The number of segments is m.

*2. Smart LCD send a response at the end of each block.

End block download:

COB-ID

Master →

0x600+Node-ID

←

normal

0xA1

Smart LCD abnormal

0x580+Node-ID

0x80

Index

Sub

Abort code

URL: www.topwaydisplay.com

Document Name:SMART LCD CAN Interface Reference Note Rev0.1.doc

Page: 9 of 19

TOPWAY

CAN Interface Reference

Note.

*1. CS descriptions:

Descriptions

0xC1

The Number of bytes in last segment that do not contain data is 0

0xC5

The Number of bytes in last segment that do not contain data is 1

0xC9

The Number of bytes in last segment that do not contain data is 2

0xCD

The Number of bytes in last segment that do not contain data is 3

0xD1

The Number of bytes in last segment that do not contain data is 4

0xD5

The Number of bytes in last segment that do not contain data is 5

0xD9

The Number of bytes in last segment that do not contain data is 6

3.6 LSS

Smart LCD may be configured node-ID or bit timing parameters via LSS (layer setting services)

communication.

3.6.1 Switch state global service

3.6.1.1 Switch Mode Global

By switch state global service, the LSS master device shall switch all LSS slave devices in the

network into LSS waiting state or LSS configuration state.

Message issued by the master:

COB-ID

0x7E5

0x04

Mode

Mode = 0: switch to waiting state

Mode = 1: switch to configuration state

3.6.1.2 Switch state selective service

By identify the LSS address(1018H), the LSS master device shall switch the Smart LCD into

configuration state.

The master sends messages in turn:

COB-ID

0x7E5

0x40

vendor-ID

0x00

COB-ID

0x7E5

0x41

product-code

0x00

COB-ID

0x7E5

0x42

Revision-number

0x00

COB-ID

0x7E5

0x43

serial-number

0x00

If the sending LSS address attribute equals the Smart LCD LSS address, the Smart LCD replies the

packet and switch to configuration state.

Message issued by Smart LCD:

COB-ID

0x7E4

0x44

CiA reserved

3.6.2 Configuration services

The configuration services are used to configure the node_ID or the bit timing parameters.The

configuration services are supported only in configuration state and the Smart LCD does not support

store the configuration.

3.6.2.1 Configure node_ID service

URL: www.topwaydisplay.com

Document Name:SMART LCD CAN Interface Reference Note Rev0.1.doc

Page: 10 of 19

TOPWAY

CAN Interface Reference

Message issued by the master:

COB-ID

0x7E5

0x11

node-ID

Message issued by Smart LCD:

COB-ID

0x7E4

0x11

Error code

0x00

Error code = 0, success

Error code = 1, failure

Note.

*1. Only one LSS slave device into LSS configuration state before requesting this service.

3.6.2.2 Configure bit timing parameters service

Message issued by the master:

COB-ID

0x7E5

0x13

0x00

index

The following table shows the relationship between bit timing parameter(bit rate) and index

Bit rate

index

1000K Bit

800K Bit

500K Bit

250K Bit

125K Bit

100K Bit

50K Bit

20K Bit

10K Bit

Message issued by Smart LCD:

COB-ID

0x7E4

0x13

error code

0x00

3.6.2.3 Activate bit timing parameters service

The LSS master shall activate the bit timing as defined by the configure bit timing parameters

service.

Message issued by the master:

COB-ID

0x7E5

0x15

switch delay(ms)

The switch delay parameter shall specify the length of two delay periods of equal length, which are

necessary to avoid operating the bus with differing bit timing parameters.

URL: www.topwaydisplay.com

Document Name:SMART LCD CAN Interface Reference Note Rev0.1.doc

Page: 11 of 19

TOPWAY

CAN Interface Reference

Appendix 1: Object dictionary

(1000h~1018h) - General communication objects

Index

Sub_

Data

PDO

index

Description

Type

Access

Mapping

Default value

1000h

Device Typ e

UINT32

0x00000000

1001h

Error Reg ister

UINT8

0x00

1005h

SYNC COB ID

UINT32

0x00000080

1006h

Communication Cy cle Period

UINT32

0x00000000

1008h

Manufacturer Device Name

STR

1009h

Manufacturer Hardware Version

STR

100Ah

Manufacturer Software Version

STR

1014h

Emerg ency COB ID

UINT32

Node ID + 0x80

1017h

Producer Heartbeat Time

UINT16

0x0000

Identity

UINT8

0x04

01h

Vendor ID

UINT32

0x00000000

1018h

02h

Product Code

UINT32

0x00000001

03h

Revision Number

UINT32

0x00000001

04h

Serial Number

UINT32

0x00000000

1200h - SDO parameter object

Index

Sub_

Data

PDO

index

Description

Typ e

Access

Mapp ing

Default value

SDO server p arameter

UINT8

0x02

1200h

Client to server COB-ID

UINT32

Node ID + 0x600

Server to client COB-ID

UINT32

Node ID + 0x580

(1400h~16FFh) - RPDO Parameter objects

Index

Sub_

Data

PDO

index

Description

Typ e

Access

Mapp ing

Default value

RPDO 0 Communication

UINT8

0x06

1400h

Parameter

COB ID

UINT32

Node ID + 0x200

Transmission Typ e

UINT8

0xFE

RPDO 1 Communication

UINT8

0x06

1401h

Parameter

COB ID

UINT32

Node ID + 0x300

Transmission Typ e

UINT8

0xFE

RPDO 2 Communication

UINT8

0x06

1402h

Parameter

COB ID

UINT32

Node ID + 0x400

Transmission Ty pe

UINT8

0xFE

RPDO 3 Communication

UINT8

0x06

1403h

Parameter

COB ID

UINT32

Node ID + 0x500

Transmission Ty pe

UINT8

0xFE

RPDO 0 Mapp ing Parameter

UINT8

0x08

1600h

1~8

RPDO 0 Mapping for an

app lication obj ect 1~8

UINT32

RPDO 1 Mapp ing Parameter

UINT8

0x08

1601h

1~8

RPDO 1 Mapping for an

app lication obj ect 1~8

UINT32

RPDO 1 Mapping Parameter

UINT8

0x08

1602h

1~8

RPDO 1 Mapping for an

application obj ect 1~8

UINT32

RPDO 1 Mapp ing Parameter

UINT8

0x08

1603h

1~8

RPDO 1 Mapping for an

application object 1~8

UINT32

URL: www.topwaydisplay.com

Document Name:SMART LCD CAN Interface Reference Note Rev0.1.doc

Page: 12 of 19

TOPWAY

CAN Interface Reference

(1800h~1AFF) - TPDO parameter objects

Index

Sub_

Data

PDO

index

Description

Ty pe

Access

Mapping

Default value

TPDO 0 Communication

Parameter

UINT8

0x06

COB ID

UINT32

Node ID + 0x180

1800h

Transmission Ty pe

UINT8

0xFE

Inhibit Time

UINT16

0x00C8

Event Timer

UINT16

0x0000

SYNC start Value

UINT8

0x00

TPDO 1 Communication

Parameter

UINT8

0x06

COB ID

UINT32

Node ID + 0x280

1801h

Transmission Typ e

UINT8

0xFE

Inhibit Time

UINT16

0x00C8

Event Timer

UINT16

0x0000

SYNC start Value

UINT8

0x00

TPDO 2 Communication

Parameter

UINT8

0x06

COB ID

UINT32

Node ID + 0x380

1802h

Transmission Typ e

UINT8

0xFE

Inhibit Time

UINT16

0x00C8

Event Timer

UINT16

0x0000

SYNC start Value

UINT8

0x00

TPDO 3 Communication

Parameter

UINT8

0x06

COB ID

UINT32

Node ID + 0x480

1803h

Transmission Ty pe

UINT8

0xFE

Inhibit Time

UINT16

0x00C8

Event Timer

UINT16

0x0000

SYNC start Value

UINT8

0x00

TPDO 0 Mapping Parameter

UINT8

0x08

TPDO 0 Mapping for an

1A00h

app lication obj ect 1

UINT32

0x25002740

2~8

TPDO 0 Mapping for an

app lication obj ect 2~8

UINT32

TPDO 1 Mapping Parameter

UINT8

0x08

1A01h

1~8

TPDO 1 Mapping for an

application obj ect 1~8

UINT32

TPDO 2 Mapp ing Parameter

UINT8

0x08

1A02h

1~8

TPDO 2 Mapping for an

app lication obj ect 1~8

UINT32

TPDO 3 Mapp ing Parameter

UINT8

0x08

1A03h

1~8

TPDO 3 Mapping for an

application object 1~8

UINT32

URL: www.topwaydisplay.com

Document Name:SMART LCD CAN Interface Reference Note Rev0.1.doc

Page: 13 of 19

TOPWAY

CAN Interface Reference

( 2000h~24FFh) - Integer Variable

Index

Sub_

Data

PDO

index

Description

Ty pe

Access

Mapping

Default value

2000~

Number of string variable

UINT8

0x02

21FFh

1~2

string variable

STR

YES

2200~

Number of 16bit Integ er variable

UINT8

0x80

22FFh

1~128

16bit Integ er variable

UINT16

YES

2300~

Number of 32bit Integ er variable

UINT8

0x40

23FFh

1~64

32bit Integ er variable

UINT32

YES

2400~

Number of 64bit Integ er variable

UINT8

0x20

24FFh

1~32

64bit Integer variable

UINT64

YES

The following table gives an overview over the relationship between Index-Sub Index and the Smart

LCD Address space

Index

Index - Sub_index

Smart LCD Address space

Variable Type

2000-01h

0x000000

2000-02h

0x000080

2001-01h

0x000100

2000~21FFh

2001-02h

0x000180

VP_STR

(string variable)

21FF-01h

0x01FF00

21FF-02h

0x01FF80

2200-01h

0x080000

2200-02h

0x080002

2200-80h

0x0800FE

VP_N16

2200~22FFh

(16bit Integer

22FF-01h

0x08FF00

variable)

22FF-02h

0x08FF02

22FF-80h

0x08FFFE

2300-01h

0x020000

2300-02h

0x020004

2300-40h

0x0200FC

VP_N32

2300~23FFh

(32bit Integer

23FF-01h

0x02FF00

variable)

23FF-02h

0x02FF04

23FF-40h

0x02FFFC

2400-01h

0x030000

2400-02h

0x030008

2400-20h

0x0300F8

VP_N64

2400~24FFh

(64bit Integer

24FF-01h

0x03FF00

variable)

24FF-02h

0x03FF08

24FF-20h

0x03FFF8

URL: www.topwaydisplay.com

Document Name:SMART LCD CAN Interface Reference Note Rev0.1.doc

Page: 14 of 19

TOPWAY

CAN Interface Reference

2500h - System Register Variable

Index

Description

Data ty pe

Access

PDO Mapping

Default value

2500h

Reg ister Variable

System register variable

Sub_Index

Description

Data ty pe

Access

PDO Mapping

Default value

01h

Pag e ID

UINT16

YES

Display a pre-stored TML file(page), value = 0~999

Sub_index

Description

Data ty pe

Access

PDO Mapping

Default value

02h

Current Pag e ID

UINT16

YES

The current page ID

Sub_index

Description

Data ty pe

Access

PDO Mapping

Default value

03~0Ah

Timer Ctrl 0~7

UINT8

YES

0 = stop the timer

1 = count down , time down to 0x00000000

3 = count up, time up to 0x7FFFFFFF

Sub_ index

Description

Data ty pe

Access

PDO Mapping

Default value

0Bh

RTC

INT56

YES

By te

Descrip tions

RTC - Year, Value = 0~99( 2000~2099)

RTC - Month, Value = 1~12

RTC - Day , Value = 1~31

RTC - Hour, Value = 0~23

RTC - Minute, Value = 0~59

RTC - Second, Value = 0~59

RTC - Set, Value = 1, SYNC the time

E.g.

By te0

By te1

By te2

By te3

By te4

By te5

By te6

0x18

0x01

0x08

0x20

0x0A

0x01

the time is 2024-01-01 08:32:10

Sub_index

Description

Data ty pe

Access

PDO Mapping

Default value

0Ch

USB Access Lock

STR

YES

Value = password, Unlock the USB drive with pre-stored password

Sub_index

Description

Data ty pe

Access

PDO Mapping

Default value

0Dh

Select p roj ect folder

UINT8

YES

Project ID = 0~9

0: System execute the default project “THMT”

1~9: System execute the project “THMT01”~”THMT09”

Sub_ index

Descrip tion

Data typ e

Access

PDO Mapp ing

Default value

0Eh

Read proj ect folder ID

UINT8

YES

Read the current project

Value = the current project ID

Sub_index

Description

Data ty pe

Access

PDO Mapping

Default value

0Fh

Format the U_ drv

UINT32

YES

0xA55AAA55 = format the USB drive.

All the files (include the security lock file) will be erased

Sub_ index

Descrip tion

Data typ e

Access

PDO Mapp ing

Default value

10h

Reset

UINT32

YES

0xA55AAA55 = restart the Smart LCD

Sub_ index

Descrip tion

Data typ e

Access

PDO Mapp ing

Default value

12h

Buzzer

UINT16

YES

Buzzer touch sound control, sounding time length (in 10ms), value = 0~63, 0x00=disable

Sub_ index

Descrip tion

Data typ e

Access

PDO Mapp ing

Default value

13h

Backlig ht

UINT8

YES

Backlight brightness setting, value = 0~64

Sub_ index

Descrip tion

Data typ e

Access

PDO Mapp ing

Default value

14h

ScreenSaver Backlig ht

UINT8

YES

Screen Saver backlight brightness setting, value = 0~64

URL: www.topwaydisplay.com

Document Name:SMART LCD CAN Interface Reference Note Rev0.1.doc

Page: 15 of 19

TOPWAY

CAN Interface Reference

Sub_index

Description

Data ty pe

Access

PDO Mapping

Default value

15h

Screen Saver Pag e

UINT16

YES

Screen Saver display Page, value = 0~999

Sub_Index

Description

Data ty pe

Access

PDO Mapping

Default value

16h

Screen Saver Timer1

UINT16

YES

17h

Screen Saver Timer2

UINT16

YES

Screen saver delay time, value = 0~65535

Sub_ index

Descrip tion

Data typ e

Access

PDO Mapp ing

Default value

18h

Real time backlig ht

UINT8

YES

Real time backlight brightness, value = 0~64

Sub_ index

Descrip tion

Data typ e

Access

PDO Mapp ing

Default value

19h

Multi_Lang uag e

UINT8

YES

0x00

Multi_Language ID, the value is the language ID of the display

Sub_ index

Descrip tion

Data typ e

Access

PDO Mapp ing

Default value

1Ah

Udisk_Update_Mode

UINT8

YES

0x00

0=Default(display update UI)

1=No files, not display update UI

2=Only starting within 4s, always displaying updated UI

3=Only starting within 4s, no files, not display update UI

4=Disable update

Sub_index

Description

Data ty pe

Access

PDO Mapping

Default value

1Bh

TTF sp ace set

UINT8

YES

0x00

Reserved

Sub_index

Description

Data ty pe

Access

PDO Mapping

Default value

1Ch

Country Code

UINT8

YES

0x00

Country Code table

Country Code

Descrip tions

Country Code

Descrip tions

USA

Sweden

France

Italy

Germany

Spain

Jap an

Denmark Ⅰ

Norway

Denmark Ⅱ

Sub_ index

Descrip tion

Data typ e

Access

PDO Mapp ing

Default value

1Dh

Code Pag e

UINT8

YES

0x00

Code Page table

Code Pag e

Descriptions

Code Pag e

Descriptions

65001 ( UTF - 8)

1252 ( ANSI - Latin Ⅰ )

437 ( OEM - United States)

1253 ( ANSI - Greek)

737 ( OEM - Greek 437G)

1254 ( ANSI - Turkish)

852 ( OEM - Latin Ⅱ )

1255 ( ANSI - Hebrew)

860 ( OEM - Portug uese)

1256 ( ANSI - Arabic)

863 ( OEM - Canadian French)

1257 ( ANSI - Baltic)

865 ( OEM - Nordic)

1258 ( ANSI - Viet Nam)

866 ( OEM - Russian)

Gb2312

874 ( ANSI/OEM - Thai)

GBK

932 ( ANSI/OEM - Japanese Shift JIS)

ECU_KR

1250 ( ANSI - Central Europ e)

Big 5

1251 (ANSI - Cyrillic)

Sub_ index

Descrip tion

Data typ e

Access

PDO Mapp ing

Default value

1Eh

IS CN or EN

UINT8

YES

0x00

PIP Chinese keyboard input is Chinese Input or English Input

0 = Chinese

1 = English

Sub_index

Description

Data ty pe

Access

PDO Mapping

Default value

1Fh

PIP Key Board state

UINT8

YES

0x00

0 = PIP Key Board is not used

1 =PIP Key Board is using

Sub_ index

Descrip tion

Data typ e

Access

PDO Mapp ing

Default value

20h

Screen touch state

UINT8

YES

0x00

URL: www.topwaydisplay.com

Document Name:SMART LCD CAN Interface Reference Note Rev0.1.doc

Page: 16 of 19

TOPWAY

CAN Interface Reference

0 = screen is not touched

1 = touching the screen

Sub_index

Description

Data ty pe

Access

PDO Mapping

Default value

21h

Touch coordinate X

UINT16

YES

0x0000

The value is the last touch coordinate X

Sub_index

Description

Data ty pe

Access

PDO Mapping

Default value

22h

Touch coordinate Y

UINT16

YES

0x0000

The value is the last touch coordinate Y

Sub_index

Description

Data ty pe

Access

PDO Mapping

Default value

23h

Touch_ TPK ID

UINT16

YES

0x0000

The value is TPK ID of the last touch, if value = 0xFFFF, TPK has never been touched

Sub_index

Description

Data ty pe

Access

PDO Mapping

Default value

24h

p ag e ID of TPK

UINT16

YES

0x0000

The value is page ID of TPK that recently touch

Sub_index

Description

Data ty pe

Access

PDO Mapping

Default value

25h

TPK touch state

UINT8

YES

0x00

If value = 0, no touch

If value > 0, touch down

Sub_ index

Descrip tion

Data typ e

Access

PDO Mapp ing

Default value

26h

VP address

UINT32

YES

The value is VP address of TPK that recently touch

Sub_ index

Descrip tion

Data typ e

Access

PDO Mapp ing

Default value

27h

Return parameter

INT64

YES

The value is the return parameter of TPK that recently touch

Byte0 = response code (0x77/0x78/0x79)

By te0

By te1

By te2

By te3

By te4

By te5~7

0x77

Addr0( LSB)

Addr1

Addr2

Addr3( MSB)

0x00

0x78/0x79

page ID_L

page ID_H

TPK ID_L

TPK ID_H

0x00

0x77: Select the “True” options for TPK Properties - “Input VP Return”.

0x78: Touched release Key_ID defined, select the ”Up” option for TPK properties - “Return Value”.

0x79: Touched down Key_ID defined, select the “Down” option for TPK properties - “Return Value”.

URL: www.topwaydisplay.com

Document Name:SMART LCD CAN Interface Reference Note Rev0.1.doc

Page: 17 of 19

TOPWAY

CAN Interface Reference

2501h - VP_G16 Variable

Index

Description

Data ty pe

Access

PDO Mapping

Default value

2501h

VP_ G16 Variable

YES

0x04

16 bit graph Variable

Sub_index

Description

Data ty pe

Access

PDO Mapping

Default value

01h

VP_ G16 address

UINT32

YES

0x060000

The graph variable address, value = 0x060000~0x07FFF8

Sub_index

Description

Data ty pe

Access

PDO Mapping

Default value

02h

Grap h rang e leng th

UINT16

YES

0x0000

The value is graph length and the range is start with VP_G16 address

Sub_index

Description

Data ty pe

Access

PDO Mapping

Default value

03h

Offset

UINT16

YES

0x0000

If the value < graph range length, write graph value to VP_G16 address (address + Offset) and the value is

self-incrementing

If the value = graph range length, write graph value to the last position(address + graph range length) of

VP_G16 array with rotation effect

Sub_index

Description

Data ty pe

Access

PDO Mapping

Default value

04h

Graph value

UINT16

YES

If the value is update, it will write graph value to VP_G16 address, value = 0~65535

URL: www.topwaydisplay.com

Document Name:SMART LCD CAN Interface Reference Note Rev0.1.doc

Page: 18 of 19

TOPWAY

CAN Interface Reference

Appendix 2: SDO abort code

Abort code

name

0503 0000h

Toggle bit not alternated

0504 0000h

SDO p rotocol timed out

0504 0001h

Client/Server command specifier not valid or unknown

0504 0002h

Invalid block size( block mode only)

0504 0003h

Invalid sequence number( block mode only)

0504 0004h

CRC error( block mode only)

0504 0005h

Out of memory

0601 0000h

Unsupp orted access to an obj ect

0601 0001h

Attempt to read a write only obj ect

0601 0002h

Attemp t to write a read only obj ect

0602 0000h

Obj ect does not exist in the obj ect dictionary

0604 0041h

Obj ect cannot be mapp ed to the PDO

0604 0042h

The number and leng th of the obj ects to be mapped would exceed PDO leng th

0604 0043h

General p arameter incomp atibility reason

0604 0047h

General internal incompatibility in the device

0606 0000h

Access failed due to an hardware error

0607 0010h

Data ty pe does not match, leng th of service parameter does not match

0607 0012h

Data typ e does not match, leng th of service p arameter too hig h

0607 0013h

Data ty pe does not match, leng th of service parameter too low

0609 0011h

Sub-index does not exist

0609 0030h

Invalid value for parameter ( download only)

0609 0031h

Value of p arameter written too hig h ( download only)

0609 0032h

Value of parameter written too low ( download only)

0609 0036h

Maximum value is less than minimum value

060A 0023h

Resource not available: SDO connection

0800 0000h

General error

0800 0020h

Data cannot be transferred or stored to the application

0800 0021h

Data cannot be transferred or stored to the app lication because of local control

0800 0022h

Data cannot be transferred or stored to the application because of the present

device state

0800 0023h

Object dictionary dynamic generation fails or no object dictionary is present (e.g.

obj ect dictionary is g enerated from file and g eneration fails because of an file error)

0800 0024h

No data available

URL: www.topwaydisplay.com

Document Name:SMART LCD CAN Interface Reference Note Rev0.1.doc

Page: 19 of 19
