LCD Module User Manual
LM240160SCW
1. Basic Specifications
1.1 Display Specifications
1) LCD Display Mode
: FSTN, Positive, Transflective
2) Display Color
: Display Data = “1” : Dark Gray (*1)
: Display Data = “0” : Light Gray (*2)
3) Viewing Angle
: 6H
4) Driving Method
: 1/160 duty, 1/12 bias
5) Back Light
: White LED backlight
Note:
*1. Color tone may slightly change by Temperature and Driving Condition.
*2. The Color is defined as the inactive / background color
*3. Fine Contrast adjustment function is necessary in the application design for optimal display result
1.2 Mechanical Specifications
1) Outline Dimension
: 97.0 x 64.2 x 9.8 MAX
(See attached Outline Drawing for details)
1.3 Block Diagram
LCD Panel
240 x 160 pixels
DB0 ~ DB7
/CS, /RST, RS, /WR, /RD
ST7586S
VDD
or
VSS
equivalent
Back Light Circuit
BLA
URL: www.topwaydisplay.com
Document Name: LM240160SCW-Manual-Rev0.1
Page: 3 of 12
TOPWAY
LCD Module User Manual
LM240160SCW
1.4 Terminal Functions
Pin No.
Pin Name
I/O
Descriptions
8080 mode
6800 mode
SPI mode
1
VDD
Power Positive Power Supply
2
VSS
Power 0V Supply, Ground (0V)
3
/CS
Input Chip Select
/CS=LOW : Data bus is enabled
4
RS(SCL)
Input Register Select
Serial clock input
RS=HIGH: data on DB0 to DB7 is display data
RS=LOW: data on DB0 to DB7 is control data
5
/WR(R/W)
Input /WR=L H, /RD=H;
R/W=H,E=H;
Not used,
Data or Instruction
Data or Status read connect to VDD
latch into the LCD
from the LCD module
module
R/W=L,E=H  L;
6
/RD(E)
Input /WR=H, /RD=L;
Data or Status latch into
Data or Status read
the LCD module
form the LCD module
7
DB0(SDA)
I/O
8-bit Data bus;
Serial data input
8
DB1(A0)
Three state I/O terminal for display data or
Register Select
instruction data
A0=HIGH: Transferring
when /CS=H, DB0~DB7=High Impedance
the Display Data
A0=LOW: Transferring
the Control Data
:
:
Not used,
14
DB7
connect to VDD
15
/RST
Input Reset:
/RST=LOW: Initialization is executed
/RST=HIGH: Normal
16
BLA
Power Backlight Positive Power Supply
Interface setting:
Setting
8080 mode(Default)
6800 mode
SPI mode
JP1
OPEN
OPEN
CLOSE
JP2
CLOSE
CLOSE
OPEN
JP3
CLOSE
OPEN
CLOSE
JP4
OPEN
CLOSE
OPEN
JP5
CLOSE
CLOSE
OPEN
JP6
OPEN
OPEN
CLOSE
JP 7～JP14
OPEN
OPEN
CLOSE
URL: www.topwaydisplay.com
Document Name: LM240160SCW-Manual-Rev0.1
Page: 4 of 12
TOPWAY
LCD Module User Manual
LM240160SCW
2. Absolute Maximum Ratings
Items
Symbol
Min.
Max.
Unit Condition
Supply Voltage
V DD
-0.3
+3.6
V
V SS = 0V
Input Voltage
V IN
-0.3
V DD +0.3
V
V SS = 0V
Operating Temperature
T OP
-20
+70
 C
No Condensation
Storage Temperature
T ST
-30
+80
 C
No Condensation
Cautions:
Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional
operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure
to extreme conditions may affect device reliability.
3. Electrical Characteristics
3.1 DC Characteristics
V SS =0V, V DD =3.3V, T OP =25  C
Items
Symbol
MIN.
TYP
MAX.
Unit Condition /
.
Application Pin
Operating Voltage
V DD
3.0
3.3
3.6
V
VDD
Input High Voltage
V IH
0.8xV DD
-
V DD
V
/RST, /CS, RS, /WR, /RD,
Input Low Voltage
V IL
0
-
0.2xV DD
V
DB0~DB7
Operating Current
I DD
-
1.3
3.3
mA VDD

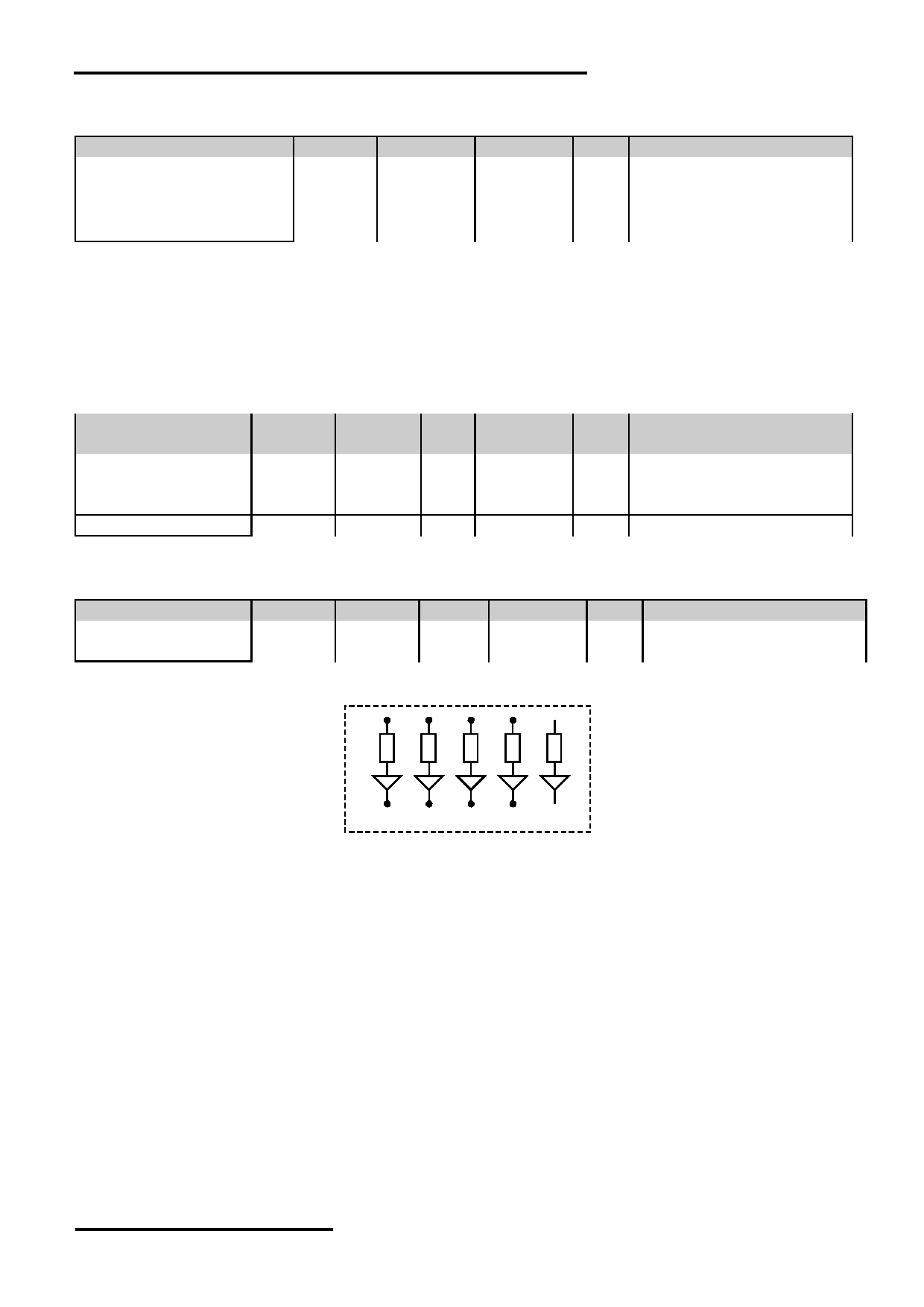

3.2 LED Backlight Circuit Characteristics
V SS =0V, If BLA =100mA, T OP =25  C
Items
Symbol
MIN.
TYP.
MAX.
Unit Applicable Pin
Forward Voltage
Vf BLA
-
3.3
-
V
BLA
Forward Current
If BLA
-
100
125
mA BLA
Cautions:
Exceeding the recommended driving current could cause substantial damage to the backlight and shorten its lifetime.
BLA
VSS
No. of LED = 5pcs
URL: www.topwaydisplay.com
Document Name: LM240160SCW-Manual-Rev0.1
Page: 5 of 12
TOPWAY
LCD Module User Manual
LM240160SCW
3.3 AC Characteristics

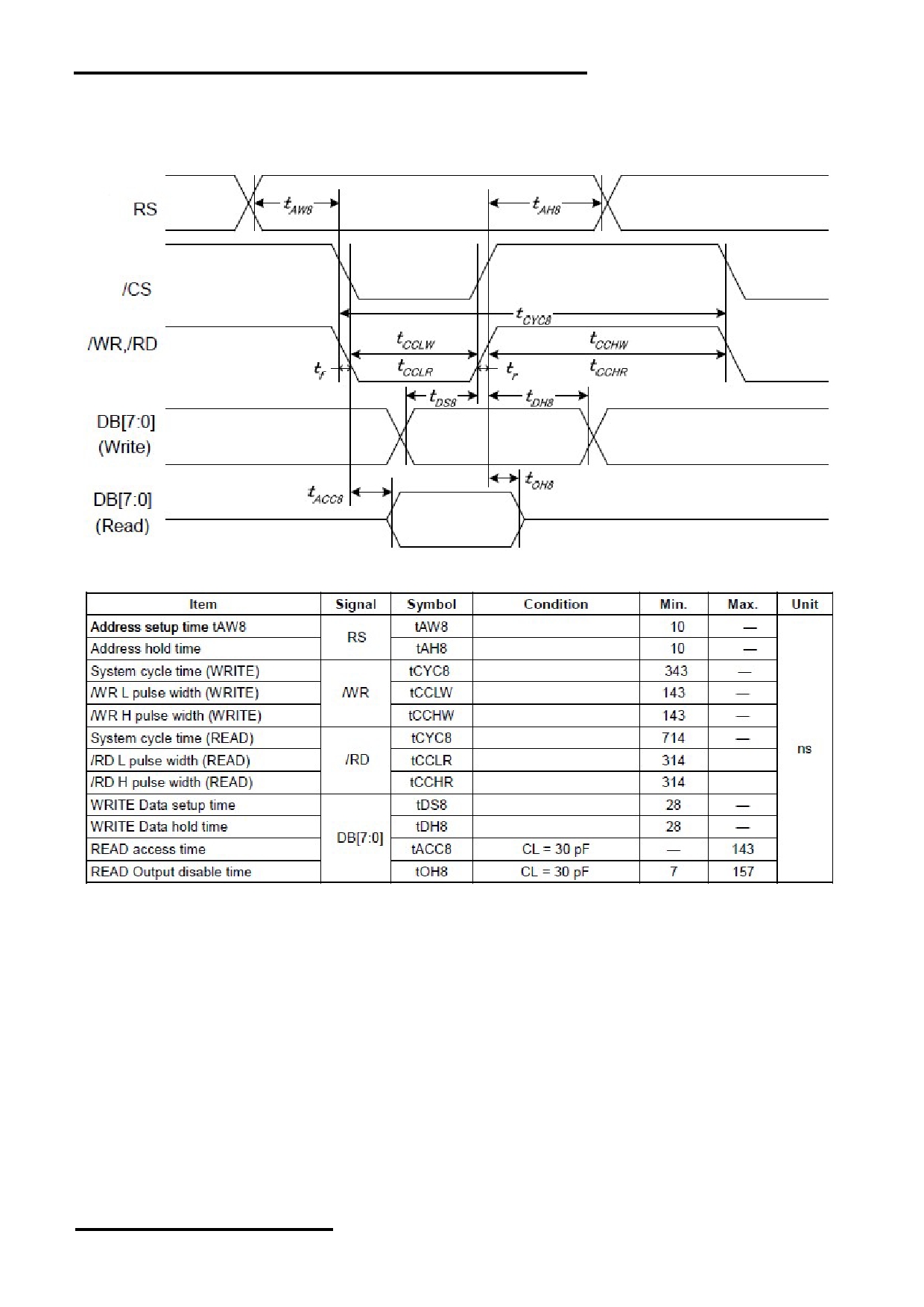

3.3.1 8080 Mode System Bus Timing
V SS =0V, V DD =3.3V, T OP =25  C
Note:
1. The input signal rise time and fall time (tr, tf) is specified at 10 ns or less.
2. Please refer to ST7586S data sheet for details.
URL: www.topwaydisplay.com
Document Name: LM240160SCW-Manual-Rev0.1
Page: 6 of 12
TOPWAY
LCD Module User Manual
LM240160SCW

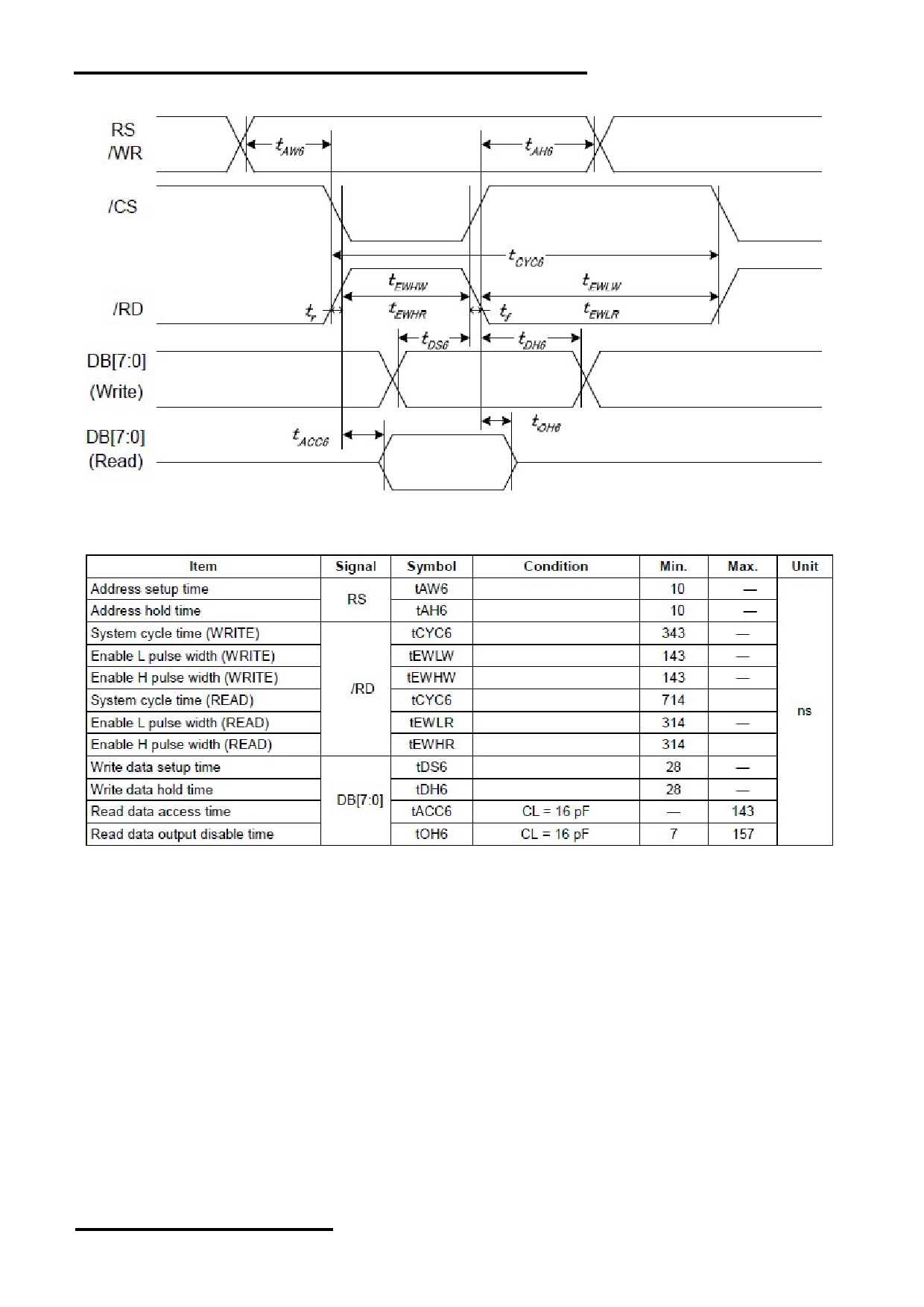

3.3.2 6800 Mode System Bus Timing
V SS =0V, V DD =3.3V, T OP =25  C
Note:
1. The input signal rise time and fall time (tr, tf) is specified at 10 ns or less.
2. Please refer to ST7586S data sheet for details.
URL: www.topwaydisplay.com
Document Name: LM240160SCW-Manual-Rev0.1
Page: 7 of 12
TOPWAY
LCD Module User Manual
LM240160SCW
3.3.3 SPI Mode System Bus Timing
V SS =0V, V DD =3.3V, T OP =25  C
Note:
1. The input signal rise and fall time (tr, tf) are specified at 10 ns or less.
2. Please refer to ST7586S data sheet for details.
3.4 Reset Timing
VSS=0V,VDD=3.3V,Ta=25 °
URL: www.topwaydisplay.com
Document Name: LM240160SCW-Manual-Rev0.1
Page: 8 of 12
TOPWAY
LCD Module User Manual
LM240160SCW
4. Function Specifications
4.1 Adjusting the Display Contrast
- This LCD module equipped with latest digital contrast adjustment function.
- Its display contrast could be adjusted by MCU command. (please see the command tables for details)
- It is recommended to provide a contrast adjustment interface for end-user, where the best display result
could meet the individual preference in mass production.
4.2 Resetting the LCD module
The LCD module should be initialized by using /RST terminal.
While turning on the VDD and VSS power supply, maintain /RST terminal at LOW level.
After the power supply stabilized, release the reset terminal (/RST=HIGH)
4.3 Display Memory Map
Column Add (dec)
0
1
…
78
79
LINE D7, D6 D4, D3 D1, D0 D7, D6 D4, D3 D1, D0
D7, D6
D4, D3
D1, D0
D7, D6
D4, D3
D1, D0
0
1
2
:
:
240x160dot
:
157
158
159
Pixel mapping (Top View)
Note:
*1. Based on the top view of the LCD module
*2. The above is memory map based on:
MX[1:0]=11 , MY=1
Inverse Display = Normal
All Pixel ON/OFF =OFF
Display ON/OFF = ON
Partial Mode = OFF
Start Line =0
Display Mode = Monochrome mode
Display Duty = 1/160
*3. 1Byte data in Column Add relate to 3 pixels
*4. D7D6/D4D3/D1D0=11, on dot ; D7D6/D4D3/D1D0=00, off dot ; D5,D2 has no function
*5. please refer to ST7586s datasheet for details and gray scale operation
URL: www.topwaydisplay.com
Document Name: LM240160SCW-Manual-Rev0.1
Page: 9 of 12
TOPWAY
LCD Module User Manual
LM240160SCW
4.4 Command Table
The following setting should be issue to LCD module after hardware reset.
URL: www.topwaydisplay.com
Document Name: LM240160SCW-Manual-Rev0.1
Page: 10 of 12
TOPWAY
LCD Module User Manual
LM240160SCW
Command Table (continue)
Note:
Please refer to ST7586S data sheet for details
R/W=0 means it is a write function, R/W=1 means it is a read function
RS=0 means it is a control data, RS=1 means it is a display data
URL: www.topwaydisplay.com
Document Name: LM240160SCW-Manual-Rev0.1
Page: 11 of 12
TOPWAY
LCD Module User Manual
LM240160SCW
