LM6069DFW
LCD Module User Manual
Prepared by:
Checked by:
Approved by:
zhou
Date:2012-06-05
Date:
Date:
Rev. Descriptions
Release Date
0.1
Preliminary release
2010-3-5
0.2
Revise Descriptions
2012-06-05
URL: www.topwaydisplay.com
Document Name: LM6069DFW-Manual-Rev0.2
Page: 1 of 12
TOPWAY
LCD Module User Manual
LM6069DFW
Table of Content
1. Basic Specifications .............................................................................................................. 3
1.1
Display Specifications ............................................................................................................................................ 3
1.2
Mechanical Specifications ...................................................................................................................................... 3
1.3
Block Diagram ........................................................................................................................................................ 3
2. Terminal Functions ................................................................................................................ 4
3. Absolute Maximum Ratings .................................................................................................. 5
4. Electrical Characteristics ...................................................................................................... 5
4.1
DC Characteristics ................................................................................................................................................. 5
4.2
LED Backlight Circuit Characteristics ..................................................................................................................... 5
4.3
AC Characteristics ................................................................................................................................................. 6
4.4
Reset Timing .......................................................................................................................................................... 8
5. Function specifications ......................................................................................................... 9
5.1
Basic Setting .......................................................................................................................................................... 9
5.2
Resetting the LCD module ..................................................................................................................................... 9
5.3
Display Memory Map.............................................................................................................................................. 9
5.4
Display Commands .............................................................................................................................................. 10
5.5
Display Commands (continue) ............................................................................................................................. 11
5.6
Design and Handling Precaution .......................................................................................................................... 12
URL: www.topwaydisplay.com
Document Name: LM6069DFW-Manual-Rev0.2
Page: 2 of 12
TOPWAY
LCD Module User Manual
LM6069DFW
1. Basic Specifications
1.1 Display Specifications
1) LCD Display Mode
: STN-Blue, Negative, Transmissive
2) Display Color
: Display Data = “1” : Light Gray (*1)
: Display Data = “0” : Dark Blue (*2)
3) Viewing Angle
: 6H
4) Driving Method
: 1/65 duty, 1/9 bias
5) Backlight
: While LED backlight
Note:
*1. Color tone may slightly change by Temperature and Driving Condition.
*2. The Color is defined as the inactive / background color
*3. Fine Contrast adjustment function is necessary in the application design for optimal display result
1.2 Mechanical Specifications
1) Outline Dimension
: 96.0 x 38.3 x 11.0MAX (mm)
(See attached Outline Drawing for details)

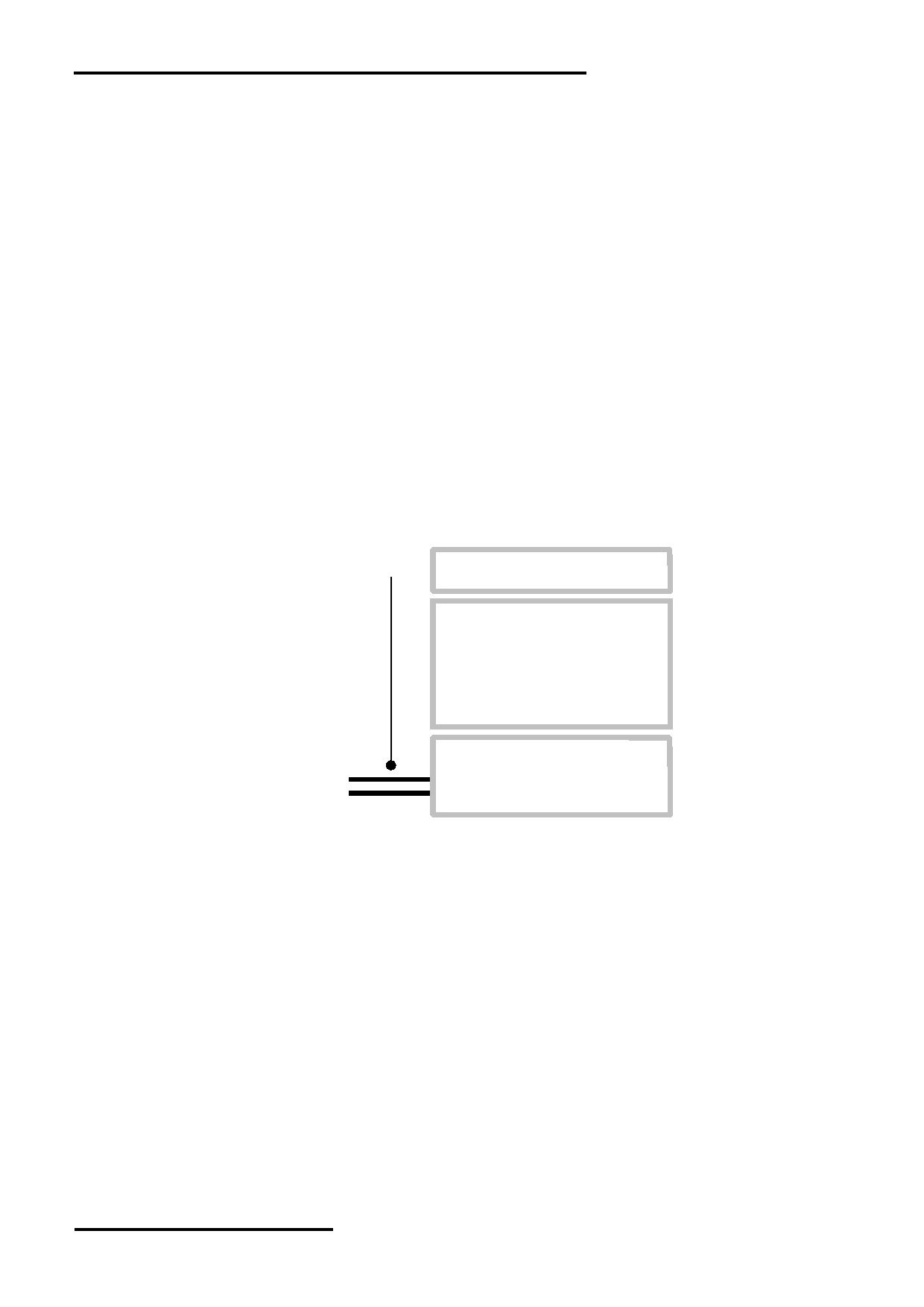

1.3 Block Diagram
BLA
Back light
LCD Panel
216 × 64Pixels
VDD
VSS
/RD, /WR, DB0~DB7
IST3020 or equivalent
/CS1, /RESET, A0
URL: www.topwaydisplay.com
Document Name: LM6069DFW-Manual-Rev0.2
Page: 3 of 12
TOPWAY
LCD Module User Manual
LM6069DFW
2. Terminal Functions
Descriptions
PIN
PIN
8-bit parallel
8-bit parallel
Serial mode
NO.
Name
I/O
8080 mode
6800 mode
1
VSS
Supply
Negative power supply,0V
2
VDD
Supply
Positive power supply
Chip Select
3
/CS1
Input
/CS1=L, enable access to the LCD module
/CS1=H, disable access to the LCD module
Reset signal
4
/RESET
Input
/RESET = L, Initialization is executed
/RESET = H, Normal running.
Register Select
5
A0
Input
A0 = H, Transferring the Display Data
A0 = L, Transferring the Control Data
/WR=L  H, /RD=H;
R/W=H,E=H;
Not used,
6
/WR(R/W)
Input
Data or Instruction
Data or Status read Leave open or pull
latch into the LCD
from the LCD module Hi
module
R/W=L,E=H  L;
7
Input
/WR=H, /RD=L;
Data or Status latch
/RD(E)
Data or Status read
into the LCD module
form the LCD module
8
DB0
I/O
8-bit Data bus;
DB5-DB0 connect to
:
:
I/O
Three state I/O terminal for display data or
VDD
13
DB5
I/O
instruction data
14
DB6(SCL):
I/O
when /CS1=H,
Serial clock input
15
DB7(SI)
I/O
DB0~DB7=High Impedance
Serial data input
16
BLA
Power
Backlight Positive Supply
Interface setting:
Setting
8080 mode(Default)
6800 mode
SPI mode
JP1
OPEN
CLOSE
OPEN
JP2
CLOSE
OPEN
OPEN
JP3
CLOSE
CLOSE
OPEN
JP4
OPEN
OPEN
CLOSE
JP7 ~ JP14
OPEN
OPEN
CLOSE
URL: www.topwaydisplay.com
Document Name: LM6069DFW-Manual-Rev0.2
Page: 4 of 12
TOPWAY
LCD Module User Manual
LM6069DFW

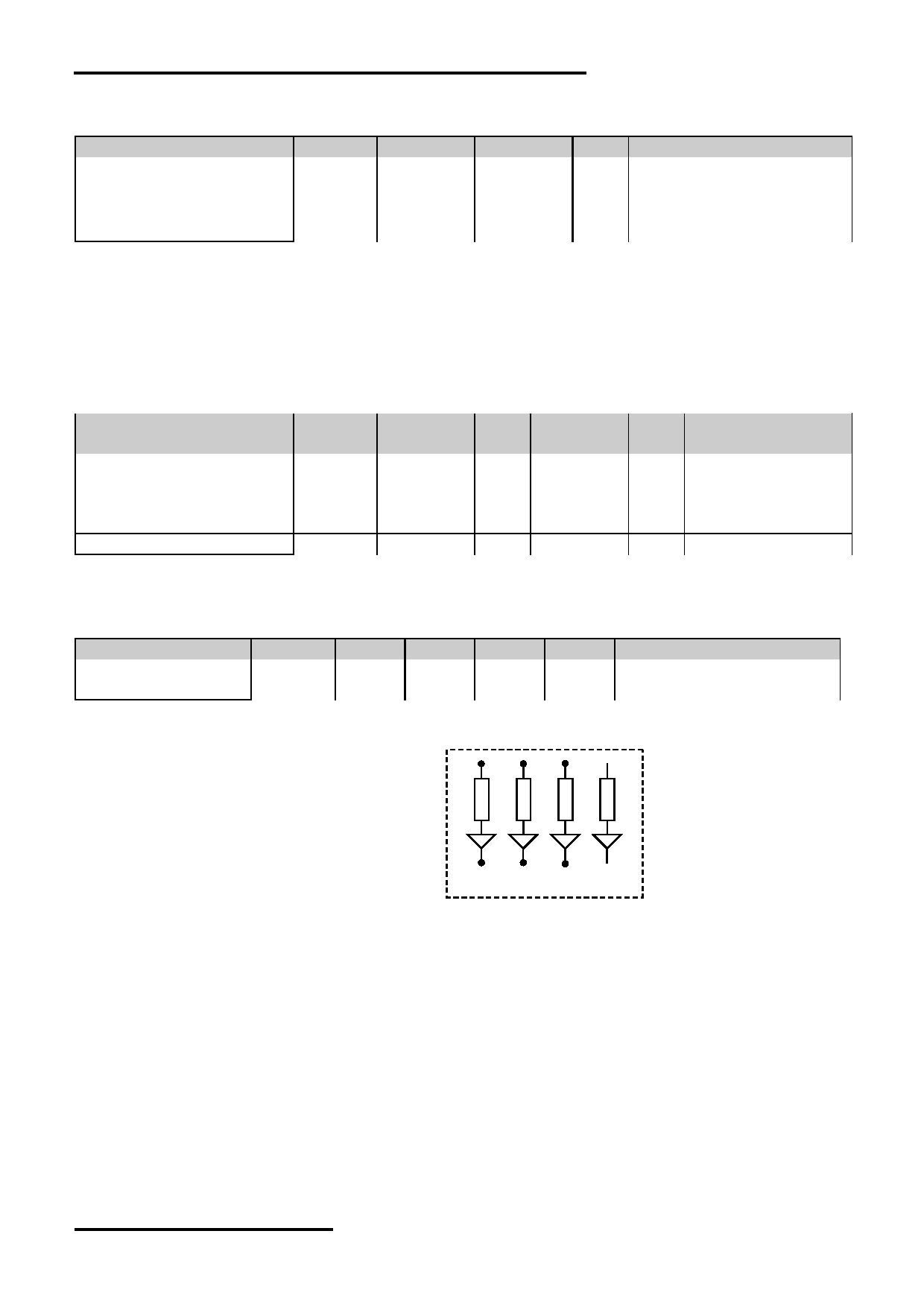

3. Absolute Maximum Ratings
Items
Symbol
Min.
Max.
Unit Condition
Supply Voltage
V DD
-0.3
+3.6
V
V SS = 0V
Input Voltage
V IN
-0.2
V DD +0.2
V
V SS = 0V
Operating Temperature
T OP
-20
+70
 C
No Condensation
Storage Temperature
T ST
-30
+80
 C
No Condensation
Cautions:
Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional
operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure
to extreme conditions may affect device reliability.
4. Electrical Characteristics
4.1 DC Characteristics
V SS =0V, V DD =3.3V, T OP =25  C
Items
Symbol
MIN.
TYP.
MAX.
Unit Condition /
Application Pin
Operating Voltage
V DD
3.0
-
3.6
V
VDD
Input High Voltage
V IH
0.85xV DD
-
V DD
V
/RESET, /CS1, A0,
Input Low Voltage
V IL
V SS
-
0.15xV DD
V
/WR, /RD,
DB0~DB7
Operating Current
I DD
-
0.3
2.3
mA VDD
4.2 LED Backlight Circuit Characteristics
V BLK =0V, If BLA =68mA, T OP =25  C
Items
Symbol
MIN.
TYP.
MAX.
Unit
Applicable Pin
Forward Voltage
Vf BLA
-
3.3
-
V
BLA
Forward Current
If BLA
-
68
80
mA
BLA
BLA
VSS
URL: www.topwaydisplay.com
Document Name: LM6069DFW-Manual-Rev0.2
Page: 5 of 12
TOPWAY
LCD Module User Manual
LM6069DFW
4.3 AC Characteristics

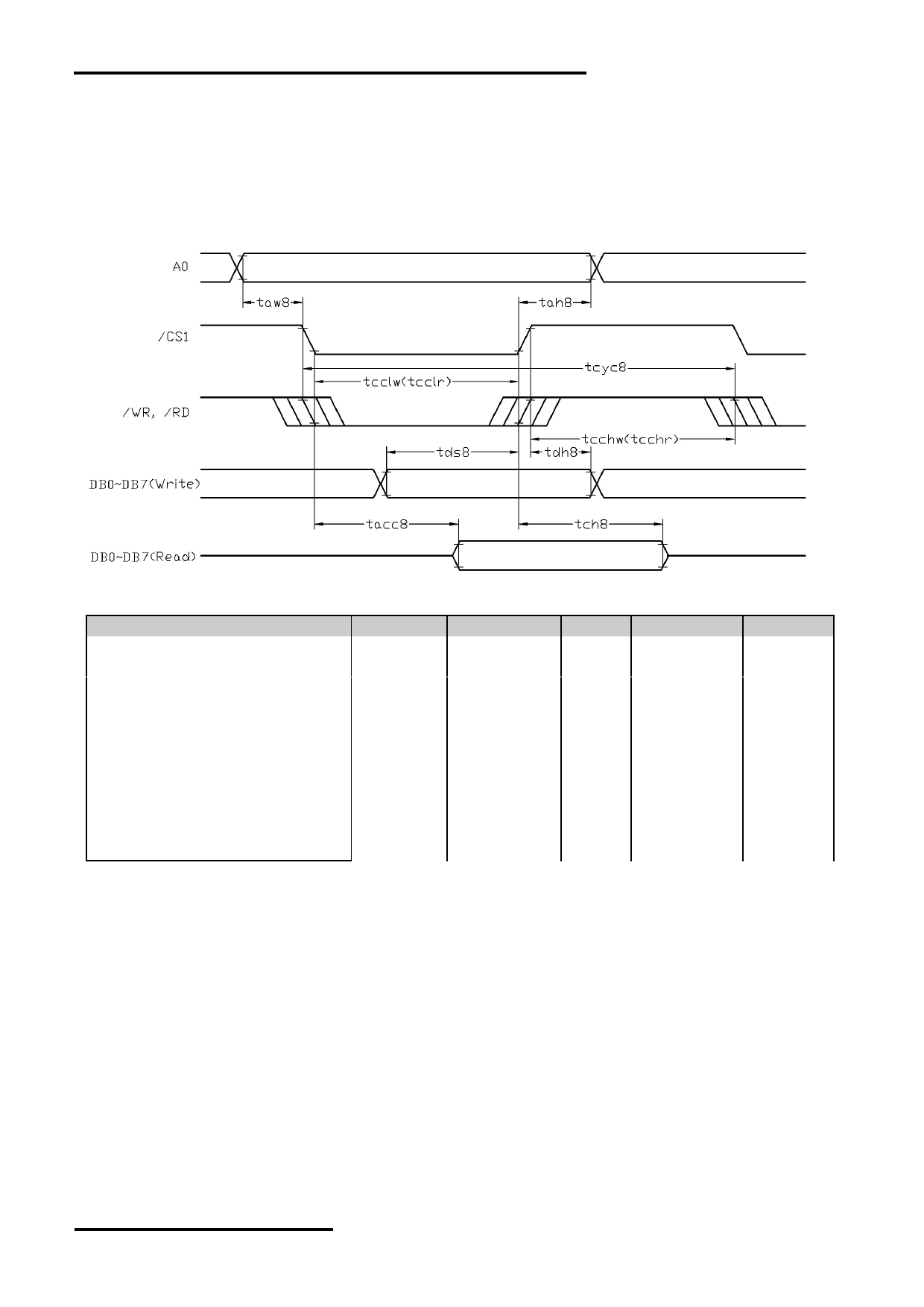

4.3.1 8080 Mode System Bus Timing
V SS =0V, V DD =3.3V, T OP =25  C
Item
Symbol
MIN.
TYP.
MAX.
Unit
System cycle time
tcyc8
430
-
-
ns
Address setup time (A0)
taw8
10
-
-
ns
Address hold time (A0)
tah8
10
-
-
ns
Control LOW pulse width (/RD)
tccl r
86
-
-
ns
Control LOW pulse width (/WR)
tcclw
86
-
-
ns
Control HIGH pulse width (/RD)
tcch r
86
-
-
ns
Control HIGH pulse width (/WR)
tcchw
86
-
-
ns
Data setup time
tds8
58
-
-
ns
Data hold time
tdh8
22
-
-
ns
/RD access time (*2)
tacc8
-
-
200
ns
Output disable time (*2)
tch8
7
-
143
ns
Note:
*1. Input signal rise/fall time should be less than 15ns .
*2.All timing is using 20% and 80% of VDD as the reference.
URL: www.topwaydisplay.com
Document Name: LM6069DFW-Manual-Rev0.2
Page: 6 of 12
TOPWAY
LCD Module User Manual
LM6069DFW

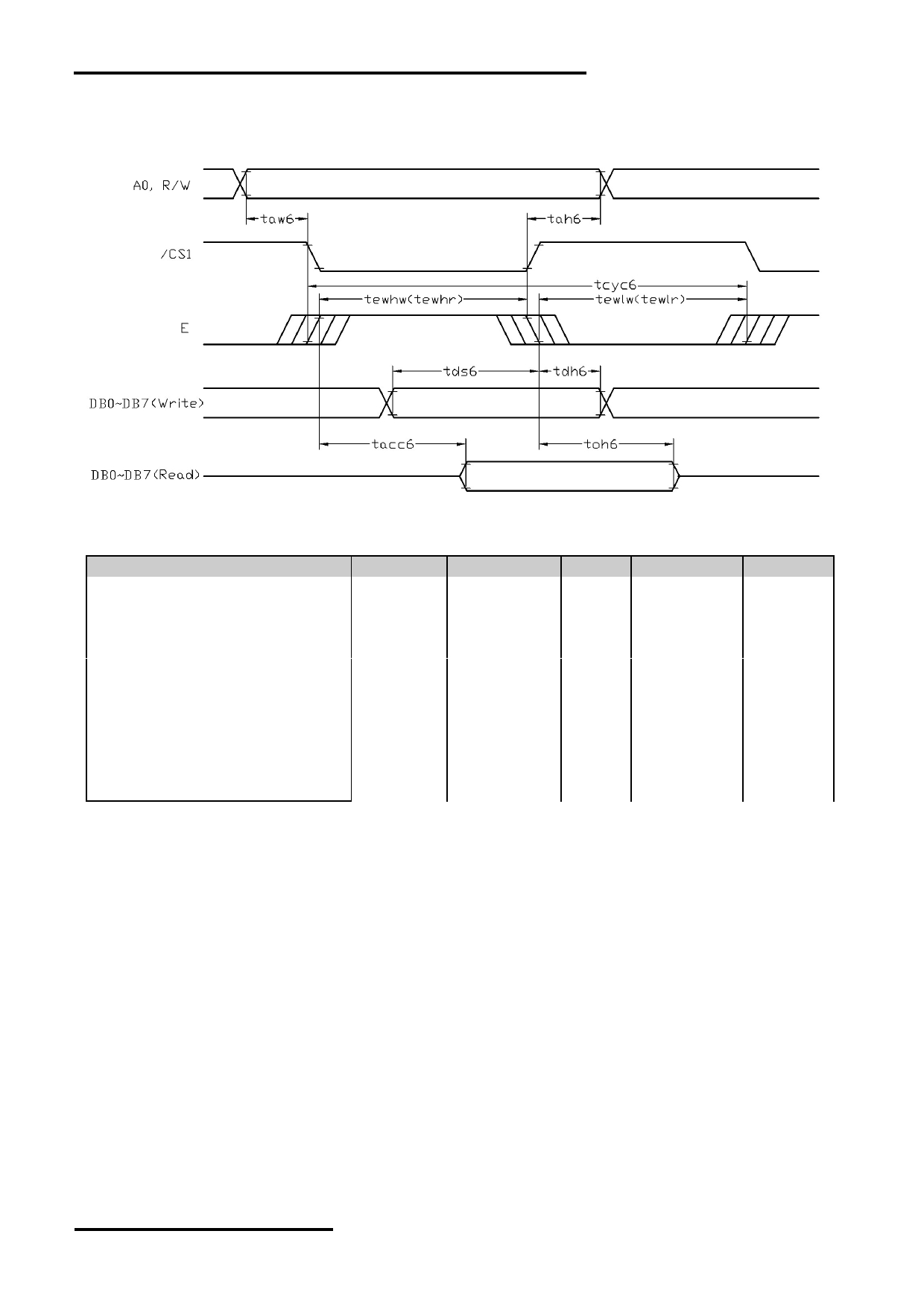

4.3.2 6800 Mode System Bus Timing
V SS =0V, V DD =3.3V, T OP =25  C
Item
Symbol
MIN.
TYP.
MAX.
Unit
System cycle time
tcyc6
430
-
-
ns
Address setup time (A0)
taw6
10
-
-
ns
Address hold time (A0)
tah6
10
-
-
ns
Control LOW pulse width (R/W)
tewlr
-
-
-
ns
Control LOW pulse width (R/W)
tewlw
-
-
-
ns
Control HIGH pulse width (/RD)
tewhr
86
-
-
ns
Control HIGH pulse width (R/W)
tewhw
86
-
-
ns
Data setup time
tds6
58
-
-
ns
Data hold time
tdh6
22
-
-
ns
/RD access time (*2)
tacc6
-
-
200
ns
Output disable time (*2)
toh6
7
-
143
ns
Note:
*1. Input signal rise/fall time should be less than 15ns .
*2. CL=100pF
*3.All timing is using 20% and 80% of VDD as the reference.
URL: www.topwaydisplay.com
Document Name: LM6069DFW-Manual-Rev0.2
Page: 7 of 12
TOPWAY
LCD Module User Manual
LM6069DFW
4.3.3 Serial Mode Interface
V SS =0V, V DD =3.3V, T OP =25  C
Item
Symbol
MIN.
TYP.
MAX.
Unit
Serial Clock Period
tscyc
357
-
-
ns
Address setup time (A0)
tsas
214
-
-
ns
Address hold time (A0)
tsah
214
-
-
ns
SCL “H” pulse width
tshw
143
-
-
ns
SCL “L” pulse width
tslw
143
-
-
ns
Data setup time
tsds
143
-
-
ns
Data hold time
tsdh
143
-
-
ns
CS-SCL time
tcss
214
-
-
ns
CS-SCL time
tcsh
214
-
-
ns
Note:
*1. Input signal rise/fall time should be less than 15ns .
*2. CL=100pF
*3.All timing is using 20% and 80% of VDD as the reference.
4.4 Reset Timing
V SS =0V, V DD =3.3V, T OP =25  C
Item
Symbol
MIN.
TYP.
MAX.
Unit
Reset time
tr
-
-
1.5
μs
Reset LOW pulse width
trw
1.5
-
-
μs
Note:
*1.All timing is using 20% and 80% of VDD as the reference.
URL: www.topwaydisplay.com
Document Name: LM6069DFW-Manual-Rev0.2
Page: 8 of 12
TOPWAY
LCD Module User Manual
LM6069DFW
5. Function specifications
5.1 Basic Setting
Basic Setting
To drive the LCD module correctly and provide normally display, please use the following setting
- ADC = 0 (normal)
- SHL select = 1 (reverse)
- LCD Bias Select = 1/9
- Initial Display Line = 0
- Entire Display ON/OFF = OFF (normal)
- Reverse Display ON/OFF = OFF (normal)
- Set Power Control Set:
voltage follower = ON, voltage converter = ON, voltage regulator = ON
- Built-in OSC = ON
- Display ON/OFF = ON
Note:
*1. These setting/commands should issue the LCD module while start up.
*2. See the Display Commands section for details.
5.2 Resetting the LCD module
The LCD module should be initialized by using /RESET terminal.
While turning on the VDD and VSS power supply, maintain /RES terminal at LOW level. After the
power supply stabilized, release the reset terminal (/RESET=HIGH)

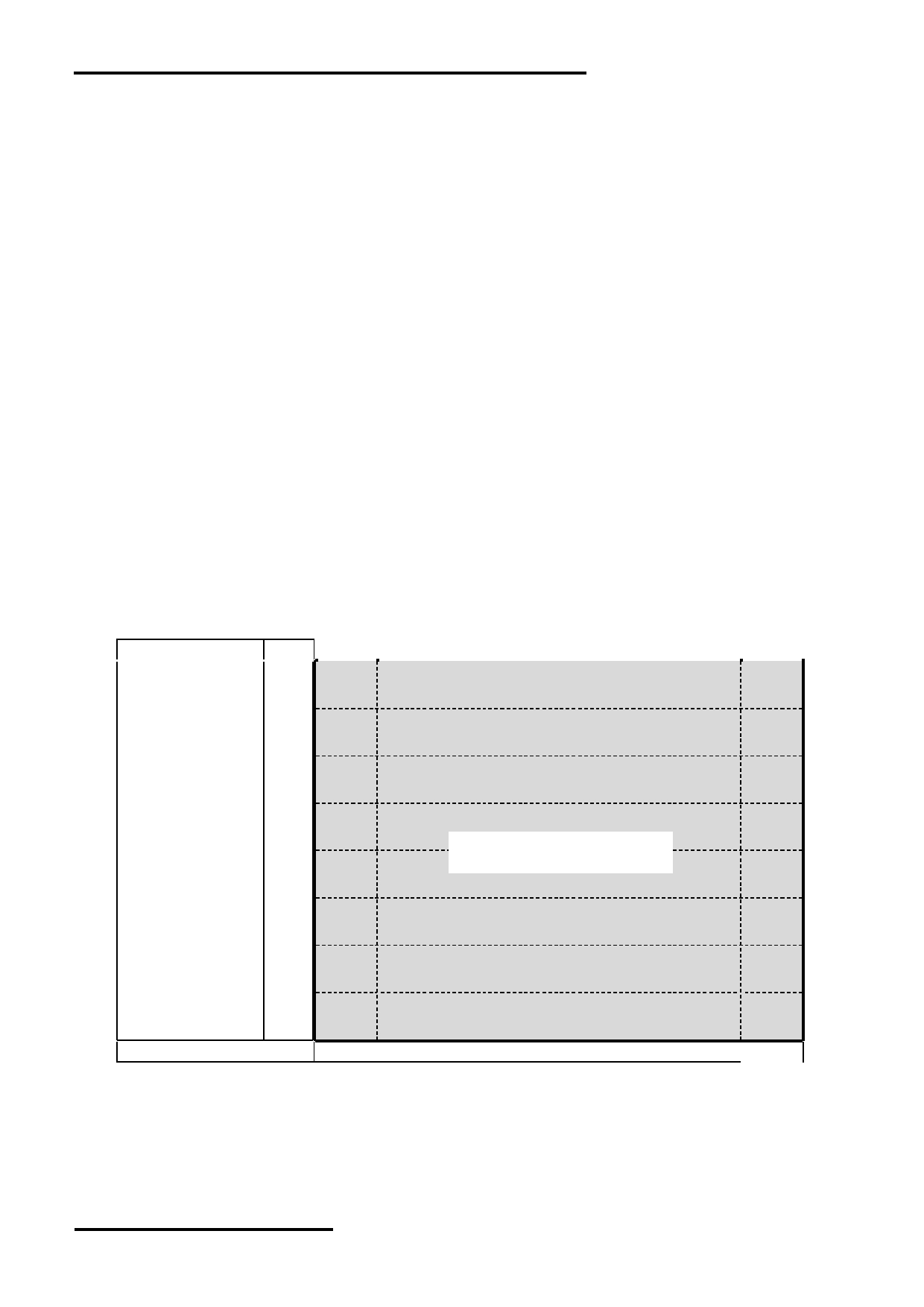

5.3 Display Memory Map
Page address
data
LCD Display (front view)
D0
0
:
D7
D0
1
:
D7
D0
2
:
D7
D0
3
:
D7
D0
4
:
216x64 pixels
D7
D0
5
:
D7
D0
6
:
D7
D0
7
:
D7
Column Address
00H
D7H
Note:
*1. ADC = 0 (normal)
*2. SHL Selection = 1 (reverse)
*3. Initial Display Line = 0
URL: www.topwaydisplay.com
Document Name: LM6069DFW-Manual-Rev0.2
Page: 9 of 12
TOPWAY
LCD Module User Manual
LM6069DFW

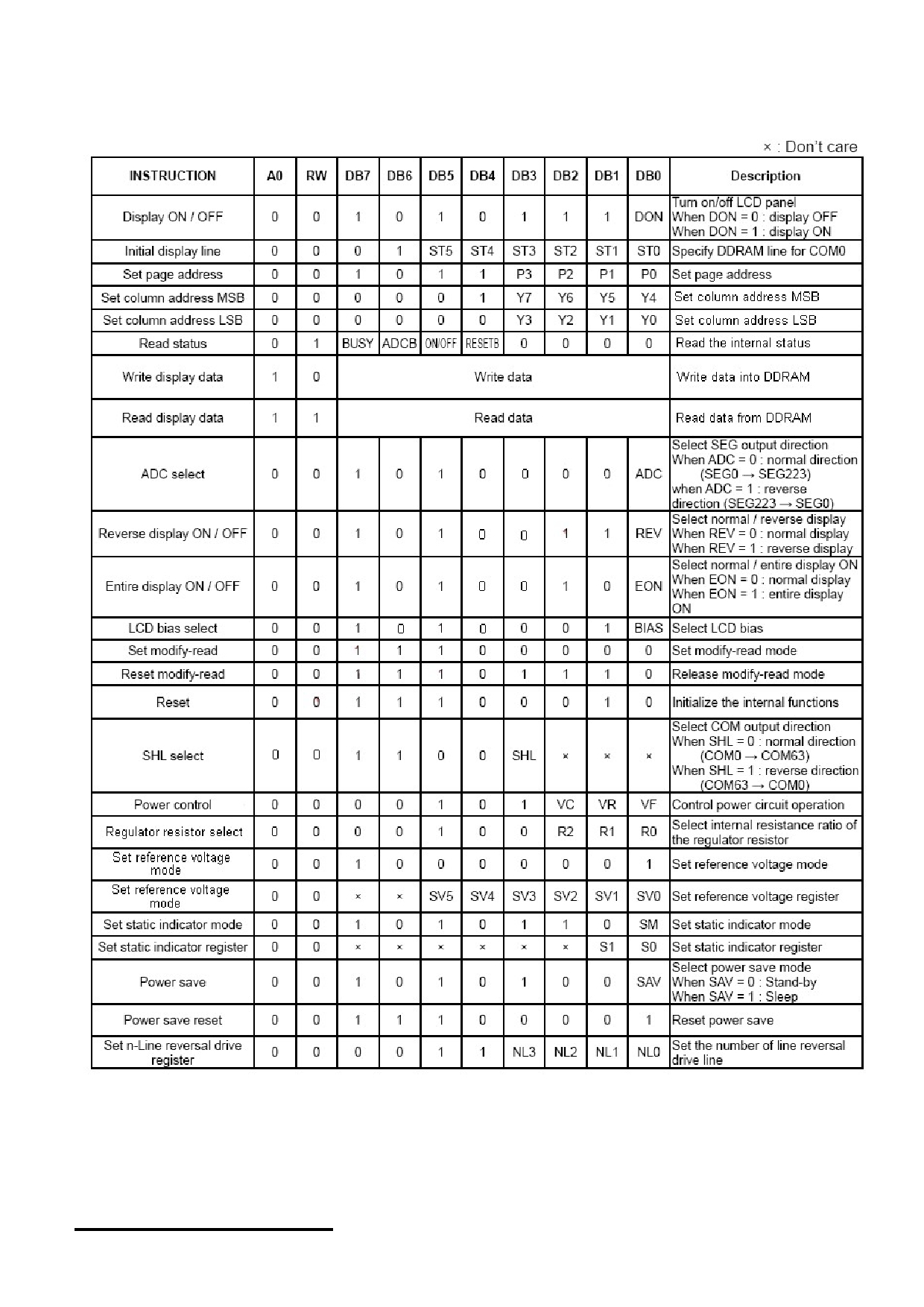

5.4 Display Commands
Note:
*1. Do not use any other command not listed, or the system malfunction may result.
*2. For the details of the Display Commands, please refer to IST3020 data sheet.
URL: www.topwaydisplay.com
Document Name: LM6069DFW-Manual-Rev0.2
Page: 10 of 12
TOPWAY
LCD Module User Manual
LM6069DFW

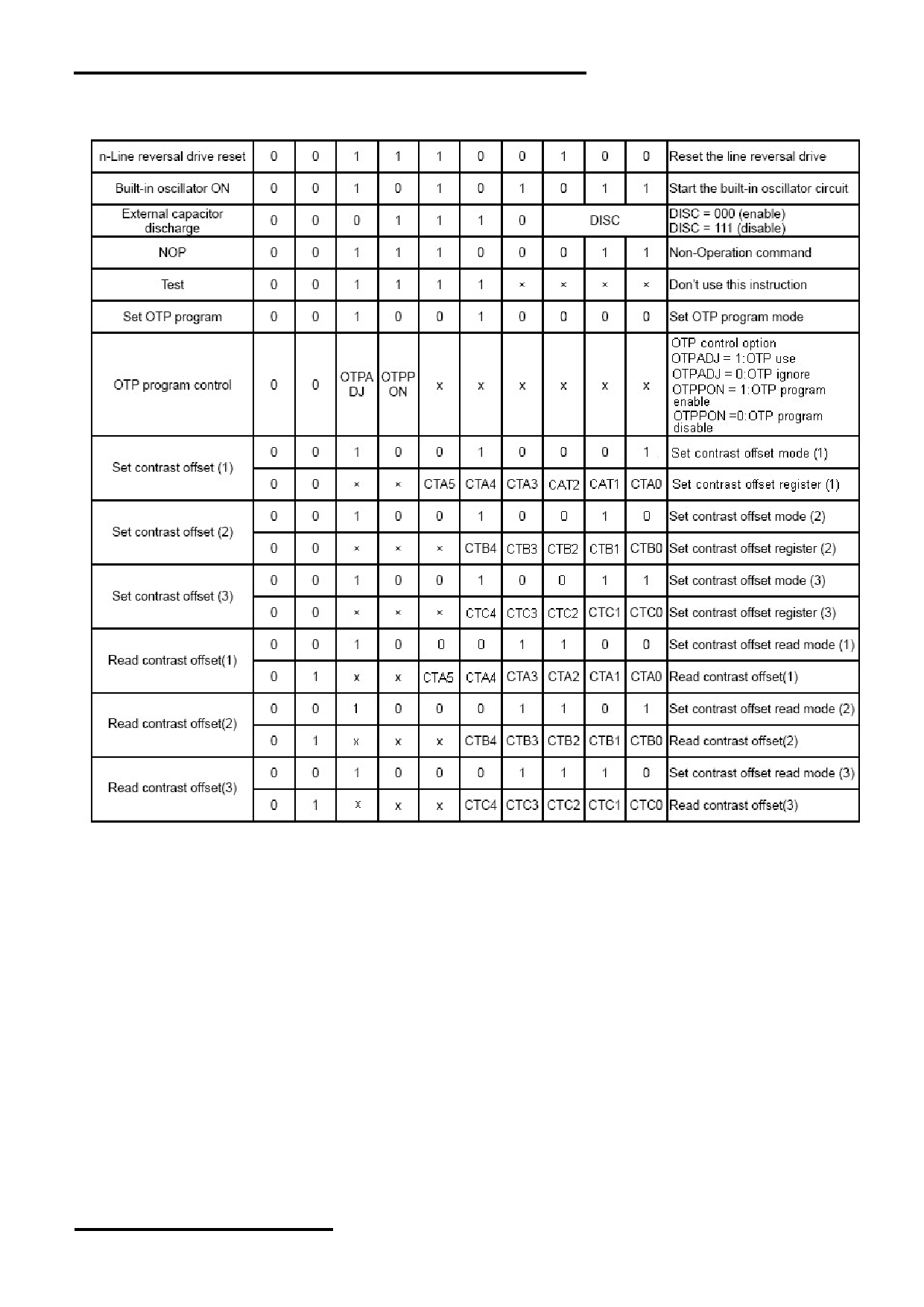

5.5 Display Commands (continue)
Note:
*1. Do not use any other command not listed, or the system malfunction may result.
*2. For the details of the Display Commands, please refer to IST3020 data sheet.
5.5.1 Power off the LCD Module
It recommends that enter Power Save mode before power off the LCD module.
5.5.2 Refreshing The LCD Module
It recommends that the operating modes and display contents be refreshed periodically to prevent
the effect of unexpected noise.
URL: www.topwaydisplay.com
Document Name: LM6069DFW-Manual-Rev0.2
Page: 11 of 12
TOPWAY
LCD Module User Manual
LM6069DFW
5.6 Design and Handling Precaution
Please refer to "LCD-Module-Design-Handling-Precaution.pdf".
URL: www.topwaydisplay.com
Document Name: LM6069DFW-Manual-Rev0.2
Page: 12 of 12
