LM6072ABY
LCD Module User Manual
Prepared by:
Checked by:
Approved by:
Luolailiang
Date:2011-10-25
Date:
Date:
Rev. Descriptions
Release Date
0.1
Preliminary release
2011-10-25
URL: www.topwaydisplay.com
Document Name: LM6072ABY-Manual-Rev0.1
Page: 1 of 10
TOPWAY
LCD Module User Manual
LM6072ABY
Table of Content
1. Basic Specifications .............................................................................................................. 3
1.1
Display Specifications ............................................................................................................................................ 3
1.2
Mechanical Specifications ...................................................................................................................................... 3
1.3
Block Diagram ........................................................................................................................................................ 3
2. Terminal Functions ................................................................................................................ 4
3. Absolute Maximum Ratings .................................................................................................. 5
4. Electrical Characteristics ...................................................................................................... 5
4.1
DC Characteristics ................................................................................................................................................. 5
4.2
LED Backlight Circuit Characteristics ..................................................................................................................... 5
4.3
AC Characteristics ................................................................................................................................................. 6
4.4
Reset Timing .......................................................................................................................................................... 6
5. Function specifications ......................................................................................................... 7
5.1
Adjusting the Display Contrast ............................................................................................................................... 7
5.2
Basic Setting .......................................................................................................................................................... 7
5.3
Resetting the LCD module ..................................................................................................................................... 7
5.4
Display Memory Map.............................................................................................................................................. 7
5.5
Display Commands ................................................................................................................................................ 8
5.6
Display Commands (continue) ............................................................................................................................... 9
6. Design and Handling Precaution ........................................................................................ 10
URL: www.topwaydisplay.com
Document Name: LM6072ABY-Manual-Rev0.1
Page: 2 of 10
TOPWAY
LCD Module User Manual
LM6072ABY
1. Basic Specifications
1.1 Display Specifications
1) LCD Display Mode
: STN-YG, Positive, Transflective
2) Display Color
: Display Data = “1” : Dark Gray (*1)
: Display Data = “0” : Light Gray (*2)
3) Viewing Angle
: 6H
4) Driving Method
: 1/64 duty, 1/9 bias
5) Backlight
: Yellew-Green LED Backlight
Note:
*1. Color tone may slightly change by Temperature and Driving Condition.
*2. The Color is defined as the inactive / background color
*3. Fine Contrast adjustment function is necessary in the application design for optimal display result
1.2 Mechanical Specifications
1) Outline Dimension
: 130.0x 65.0 x 11.5MAX (mm)
(See attached Outline Drawing for details)
1.3 Block Diagram
BLA
Back light
LCD Panel
192 × 64Pixels
VSS
VDD
/CS, /RST, RS,R/W,E
IST3020 or equivalent
DB0~DB7
URL: www.topwaydisplay.com
Document Name: LM6072ABY-Manual-Rev0.1
Page: 3 of 10
TOPWAY
LCD Module User Manual
LM6072ABY
2. Terminal Functions
Descriptions
PIN
PIN
NO.
Name
I/O
Parallel mode
68 mode <default>
80 mode
Serial mode
1
VSS
Power
Negative power supply,0V
2
VDD
Power
Positive power supply
3
NC
-
No connection (leave open)
Register Select
4
RS
Input
RS = H, Transferring the Display Data
RS = L, Transferring the Control Data
In read mode
Write enable
Not used, pull
R/W = H;Data read form the
input, active
high or low
LCD module, data appears at
LOW
5
R/W(/WR)
Input
DB0 – DB7 and can be read by
the host while, E = H and the
device is being selected
In write mode
Read enable
R/W = L;Data write to the LCD
input, active
module, data appears at DB0 –
6
E(/RD)
Input
LOW
DB7 will be written into the LCD
module at E = H  L and device
is being selected
7
DB0
I/O
8
DB1
I/O
:
:
:
8-bit bi-directional data bus
13
DB6(SCLK)
I/O
Serial Clock
Input
14
DB7(SID)
I/O
Serial Data
Input
Chip Select
15
/CS
Input
/CS=L, enable access to the LCD module
/CS=H, disable access to the LCD module
Reset signal
16
/RST
Input
/RST = L, Initialization is executed
/RST = H, Normal running.
17
NC
-
No connection (leave open)
18
NC
-
No connection (leave open)
19
NC
-
No connection (leave open)
20
BLA
Power
Positive Power Supply for LED backlight
Interface setting:
Setting
6800 mode(Default)
8080 mode
SPI mode
JP1
CLOSE
OPEN
CLOSE
JP2
OPEN
CLOSE
OPEN
JP5
CLOSE
CLOSE
OPEN
JP6
OPEN
OPEN
CLOSE
URL: www.topwaydisplay.com
Document Name: LM6072ABY-Manual-Rev0.1
Page: 4 of 10
TOPWAY
LCD Module User Manual
LM6072ABY
3. Absolute Maximum Ratings
Items
Symbol
Min.
Max.
Unit Condition
Supply Voltage
V DD
-0.3
+3.6
V
V SS = 0V
Input Voltage
V IN
-0.2
V DD +0.2
V
V SS = 0V
Operating Temperature
T OP
-20
+70
 C
No Condensation
Storage Temperature
T ST
-30
+80
 C
No Condensation
Cautions:
Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional
operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure
to extreme conditions may affect device reliability.
4. Electrical Characteristics
4.1 DC Characteristics
V SS =0V, V DD =3.3V, T OP =25  C
Items
Symbol
MIN.
TYP.
MAX.
Unit Condition /
Application Pin
Operating Voltage
V DD
3.0
-
3.6
V
VDD
Input High Voltage
V IH
0.85xV DD
-
V DD
V
/RST, /CS, RS
Input Low Voltage
V IL
V SS
-
0.15xV DD
V
DB0~DB7
Operating Current
I DD
-
0.33
1.7
mA VDD
4.2 LED Backlight Circuit Characteristics
V BLA =4.2V, If BLA =51mA, T OP =25  C
Items
Symbol
MIN.
TYP.
MAX.
Unit
Applicable Pin
Forward Voltage
Vf BLA
-
4.2
-
V
BLA
Forward Current
If BLA
-
51
60
mA
BLA
BLA
VSS
URL: www.topwaydisplay.com
Document Name: LM6072ABY-Manual-Rev0.1
Page: 5 of 10
TOPWAY
LCD Module User Manual
LM6072ABY

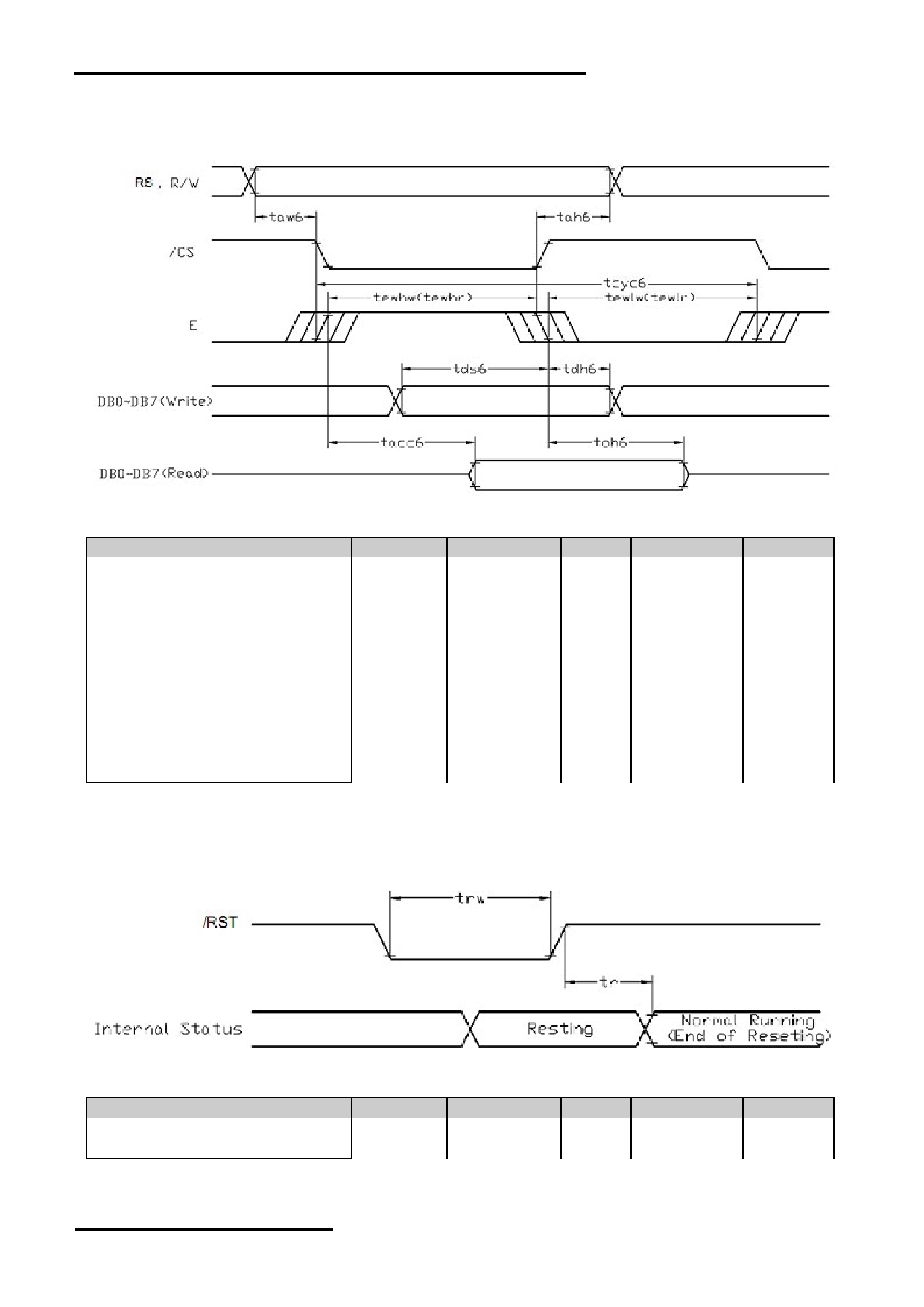

4.3 AC Characteristics
4.3.1 6800 Mode System Bus Timing
V SS =0V, V DD =3.3V, T OP =25  C
Item
Symbol
MIN.
TYP.
MAX.
Unit
System cycle time
tcyc6
430
-
-
ns
Address setup time (RS)
taw6
10
-
-
ns
Address hold time (RS)
tah6
10
-
-
ns
Control LOW pulse width (R/W)
tewlr
-
-
-
ns
Control LOW pulse width (R/W)
tewlw
-
-
-
ns
Control HIGH pulse width (E)
tewhr
86
-
-
ns
Control HIGH pulse width (R/W)
tewhw
86
-
-
ns
Data setup time
tds6
58
-
-
ns
Data hold time
tdh6
22
-
-
ns
E access time (*2)
tacc6
-
-
200
ns
Output disable time (*2)
toh6
7
-
143
ns
Note:
*1. Input signal rise/fall time should be less than 15ns .
*2. CL=100pF
*3.All timing is using 20% and 80% of VDD as the reference.
4.4 Reset Timing
V SS =0V, V DD =3.3V, T OP =25  C
Item
Symbol
MIN.
TYP.
MAX.
Unit
Reset time
tr
-
-
1.5
μs
Reset LOW pulse width
trw
1.5
-
-
μs
Note:
*1.All timing is using 20% and 80% of VDD as the reference.
URL: www.topwaydisplay.com
Document Name: LM6072ABY-Manual-Rev0.1
Page: 6 of 10
TOPWAY
LCD Module User Manual
LM6072ABY
5. Function specifications
5.1 Adjusting the Display Contrast
- This LCD module equipped with latest digital contrast adjustment function.
- Its display contrast could be adjusted by MCU command. (please see the command tables for
details)
- It is recommended to provide a contrast adjustment interface for end-user, where the best
display result could meet the individual preference in mass production.
5.2 Basic Setting
To drive the LCD module correctly and provide normally display, please use the following setting
- ADC = 1 (reverse)
- SHL select = 0 (normal)
- LCD Bias Select = 1/9
- Initial Display Line = 0
- Entire Display ON/OFF = OFF (normal)
- Reverse Display ON/OFF = OFF (normal)
- Set Power Control Set:
voltage follower = ON, voltage converter = ON, voltage regulator = ON
- Built-in OSC = ON
- Display ON/OFF = ON
Note:
*1. These setting/commands should issue the LCD module while start up.
*2. See the Display Commands section for details.
5.3 Resetting the LCD module
The LCD module should be initialized by using /RST terminal.
While turning on the VDD and VSS power supply, maintain /RST terminal at LOW level. After the
power supply stabilized, release the reset terminal (/RST=HIGH)
5.4 Display Memory Map
Page address
data
LCD Display (front view)
DB0
0
:
DB7
DB0
1
:
DB7
DB0
2
:
DB7
DB0
3
:
DB7
DB0
4
:
192x64 pixels
DB7
DB0
5
:
DB7
DB0
6
:
DB7
DB0
7
:
DB7
Column Address
40H
FFH
Note:
*1. ADC = 1 (normal)
*2. SHL Selection = 0 (reverse)
*3. Initial Display Line = 0
URL: www.topwaydisplay.com
Document Name: LM6072ABY-Manual-Rev0.1
Page: 7 of 10
TOPWAY
LCD Module User Manual
LM6072ABY
5.5 Display Commands
Note:
*1. Do not use any other command not listed, or the system malfunction may result.
*2. For the details of the Display Commands, please refer to IST3020 data sheet.
URL: www.topwaydisplay.com
Document Name: LM6072ABY-Manual-Rev0.1
Page: 8 of 10
TOPWAY
LCD Module User Manual
LM6072ABY

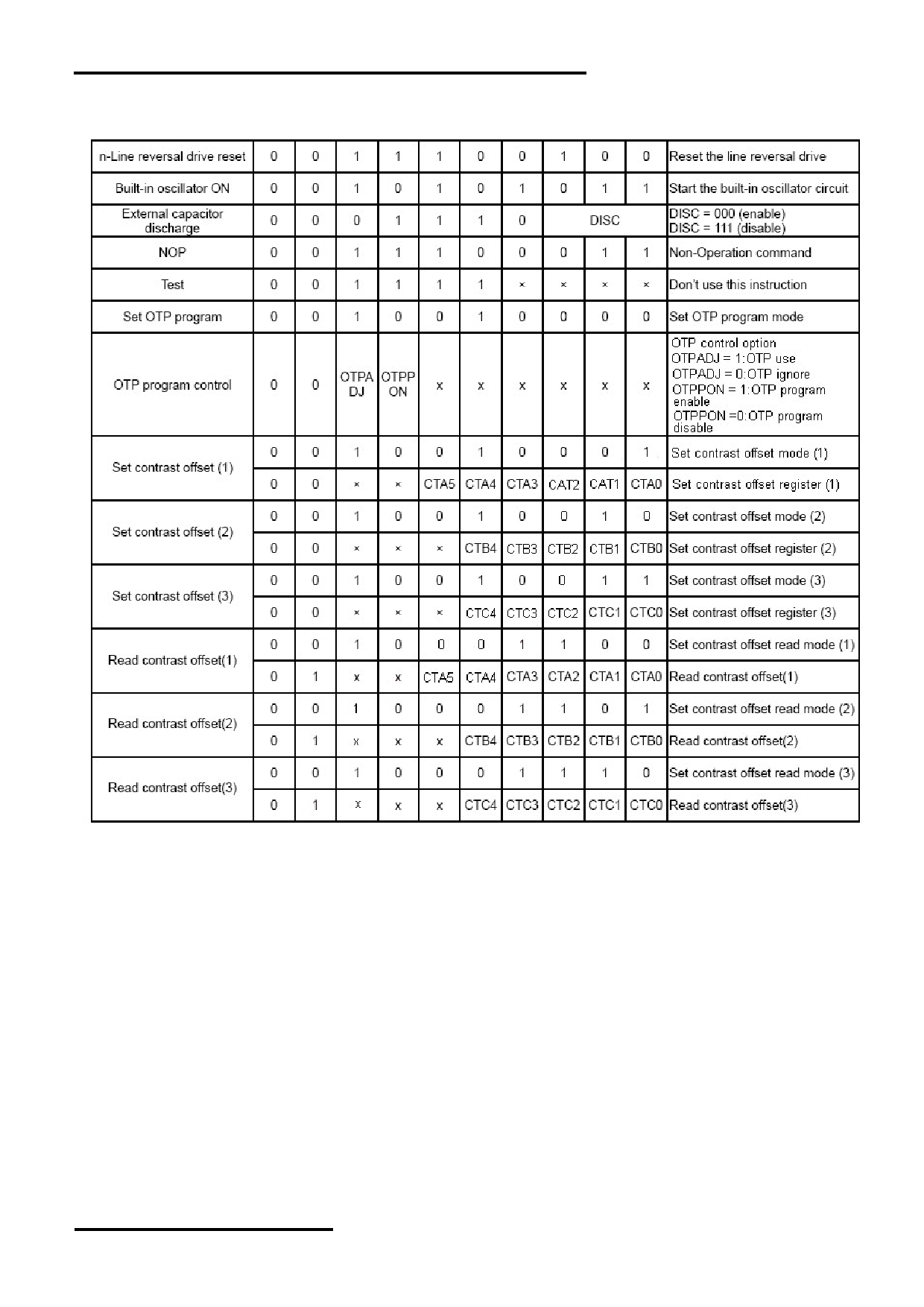

5.6 Display Commands (continue)
Note:
*1. Do not use any other command not listed, or the system malfunction may result.
*2. For the details of the Display Commands, please refer to IST3020 data sheet.
5.6.1 Power off the LCD Module
It recommends that enter Power Save mode before power off the LCD module.
5.6.2 Refreshing The LCD Module
It recommends that the operating modes and display contents be refreshed periodically to prevent
the effect of unexpected noise.
URL: www.topwaydisplay.com
Document Name: LM6072ABY-Manual-Rev0.1
Page: 9 of 10
TOPWAY
LCD Module User Manual
LM6072ABY
6. Design and Handling Precaution
Please refer to "LCD-Module-Design-Handling-Precaution.pdf".
