LCD Module User Manual

LMT056DIDFWD

Table of Content

1. General Specification....................................................................................................................3

2. Block Diagram................................................................................................................................3

3. Terminal Functions........................................................................................................................4

3.1 Interface......................................................................................................................................... 4

4. Absolute Maximum Ratings......................................................................................................... 5

5. Electrical Characteristics..............................................................................................................6

5.1 DC Characteristics.........................................................................................................................6

5.2 Power Sequence............................................................................................................................6

6. AC Characteristics.........................................................................................................................7

6.1 Timing Conditions.......................................................................................................................... 7

6.2 Timing Diagram..............................................................................................................................8

7. Optical Characteristics................................................................................................................10

8. LCD Module Design and Handling Precautions.......................................................................11

9. TFT QA Standard......................................................................................................................... 12

9.1 INSPECTION CONDITION 检验条件 ..........................................................................................12

9.2 Display Pattern 显示缺陷 ............................................................................................................. 12

9.3 Quality Level and Sampling 抽样方法 ......................................................................................... 13

URL: www.topwaydisplay.com

Document Name: LMT056DIDFWD-Manual-Rev0.1.doc

www.topwaysz.com

Page: 2 of 14

TOPWAY

LCD Module User Manual

LMT056DIDFWD

1. General Specification

Screen Size(Diagonal) :

5.6”

Outline Dimension :

126.5 x 100.0 x 5.7 (mm)

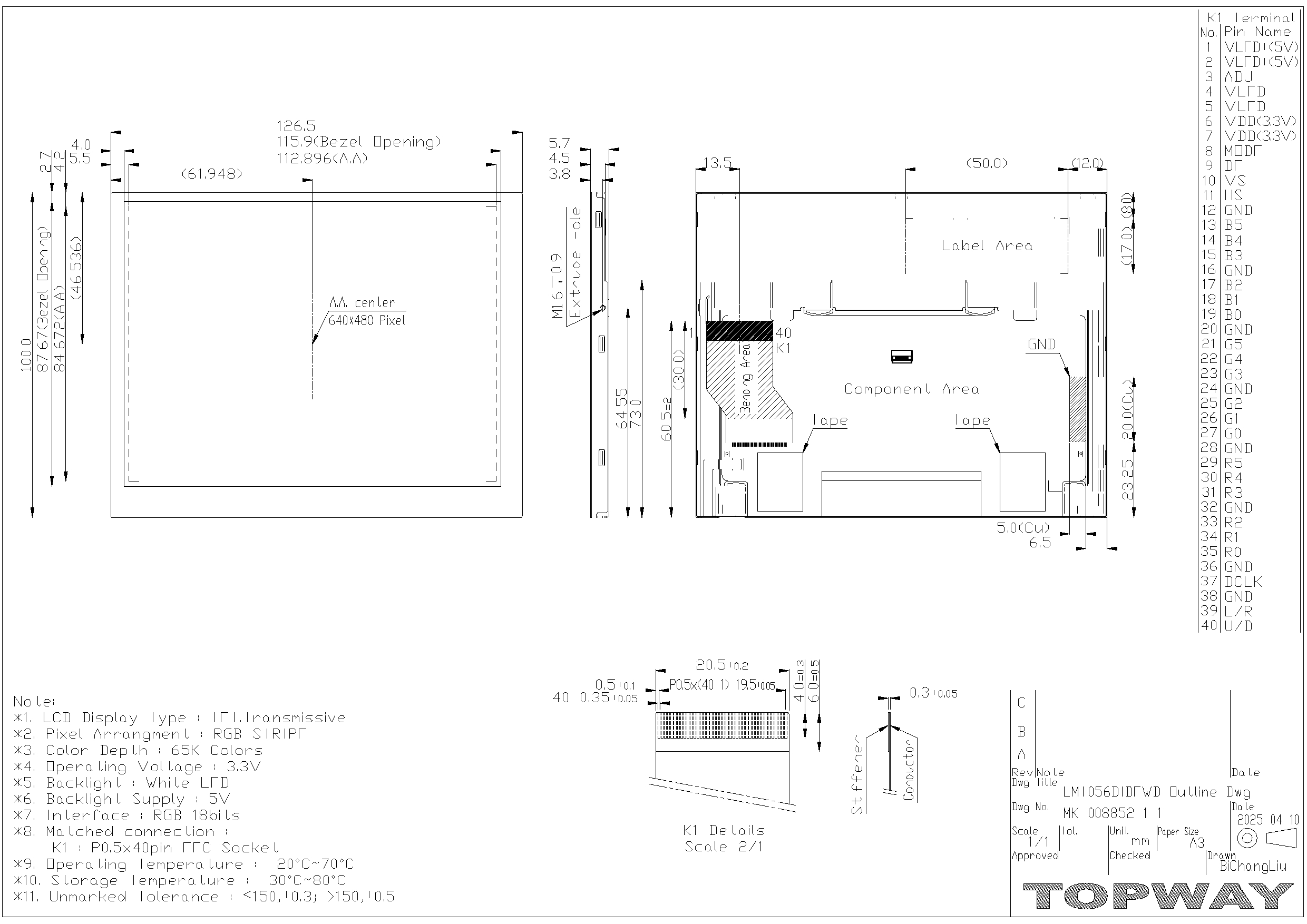

(see attached drawing for details)

Active Area :

112.896 x 84.672 (mm)

Color Depth:

65k

Number of dots :

640 x (RGB) x 480

Pixel Pitch :

0.0588 x 0.1764 (mm)

Pixel Configuration :

RGB Stripe

Backlight :

LED

Surface Treatment :

Anti-Glare Treatment

Viewing Direction :

6H (gray scale inverse)(*2)

12H(*3)

Operating Temperature :

-20 ~ +70°C

Storage Temperature :

-30 ~ +80°C

Note:

*1 Color tune may slightly changed by temperature and driving voltage.

*2. For saturated color display content (eg. pure-red, pure-green, pure-blue, or pure-colors-combinations)

*3. For "color scales" display content

2. Block Diagram

ADJ

VLED-, VLED+

Backlight Circuit

640 x 480 pixels

TFT Panel

R0~R5, G0~G5, B0~B5

VDD, GND

TFT Driver

DCLK, HS, VS, DE

URL: www.topwaydisplay.com

Document Name: LMT056DIDFWD-Manual-Rev0.1.doc

www.topwaysz.com

Page: 3 of 14

TOPWAY

LCD Module User Manual

LMT056DIDFWD

3. Terminal Functions

3.1 Interface

Pin No.

Pin Name

I/O

Descriptions

Remark

1

VLED+(5V)

P

Power Voltage for LED circuit

2

VLED+(5V)

3

ADJ

I

Adjust the LED brightness with PWM Pulse Note 2,3

4

VLED-

P

Ground for LED circuit

5

VLED-

6

VDD(3.3V)

P

Power Voltage for digital circuit

7

VDD(3.3V)

8

MODE

I

DE or HV mode control

Note 4

9

DE

I

Data enable

10

VS

I

Vsync signal input

11

HS

I

Hsync signal input

12

GND

P

Power ground

13

B5

I

Blue data input (MSB)

14

B4

I

Blue data input

15

B3

I

Blue data input

16

GND

P

Power ground

17

B2

I

Blue data input

18

B1

I

Blue data input

19

B0

I

Blue data input (LSB)

20

GND

P

Power ground

21

G5

I

Green data input (MSB)

22

G4

I

Green data input

23

G3

I

Green data input

24

GND

P

Power ground

25

G2

I

Green data input

26

G1

I

Green data input

27

G0

I

Green data input (LSB)

28

GND

P

Power ground

29

R5

I

Red data input (MSB)

30

R4

I

Red data input

31

R3

I

Red data input

32

GND

P

Power ground

33

R2

I

Red data input

34

R1

I

Red data input

35

R0

I

Red data input (LSB)

36

GND

P

Power ground

37

DCLK

I

Sample clock

38

GND

P

Power ground

39

L/R

I

Select left or right scanning direction

Note 5,6

40

U/D

I

Select up or down scanning direction

Note 5,6

URL: www.topwaydisplay.com

Document Name: LMT056DIDFWD-Manual-Rev0.1.doc

www.topwaysz.com

Page: 4 of 14

TOPWAY

LCD Module User Manual

LMT056DIDFWD

Note 1: I: input,O: output,P: Power

Note 2: Pin.3 is used to adjust brightness

Note 3: ADJ signal=0~3.3V,operation frequency: 100~300Hz

Note 4: DE Mode, Mode=”H”,HS floating and VS floating

HV Mode,Mode=”L”,and DE floating

Note 5: Selection of scanning mode

Setting of scan control input

Scanning direction

U/D

L/R

GND

VDD

Up to down, left to right

VDD

GND

Down to up, right to left

GND

GND

Up to down, right to left

VDD

VDD

Down to up, left to right

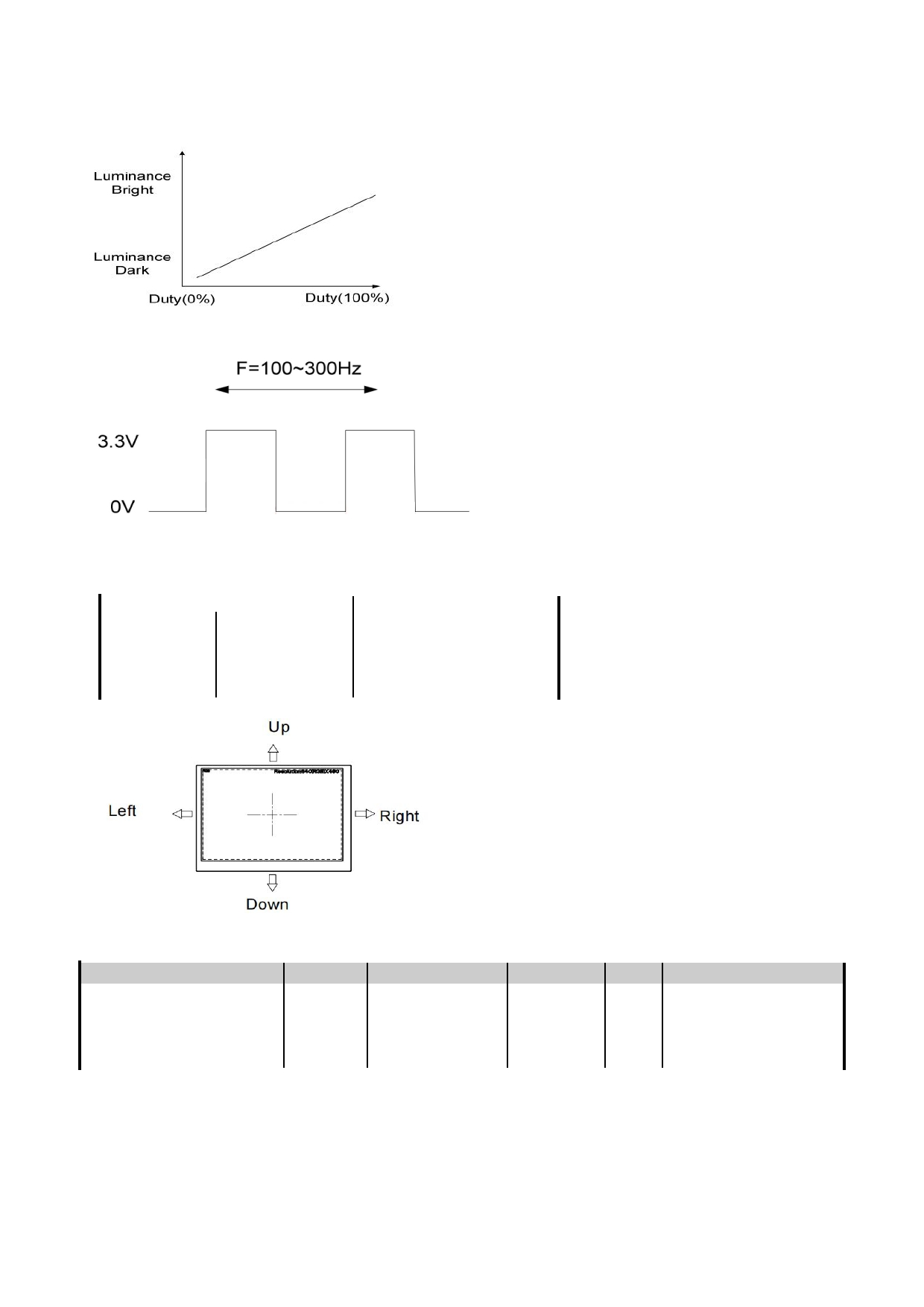

Note 6: Definition of scanning direction,Refer to the figure as below:

4. Absolute Maximum Ratings

Items

Symbol

Min.

Max.

Unit Condition

Power voltage

VDD

-0.3

+6.5

V

VLED

-0.3

+6.5

V

Operating Temperature

T OP

-20

+70

 C

No Condensation

Storage Temperature

T ST

-30

+80

 C

No Condensation

Cautions:

Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the

device. Functional operation of this device at other conditions beyond those listed in the

specification is not implied and prolonged exposure to extreme conditions may affect device

reliability.

URL: www.topwaydisplay.com

Document Name: LMT056DIDFWD-Manual-Rev0.1.doc

www.topwaysz.com

Page: 5 of 14

TOPWAY

LCD Module User Manual

LMT056DIDFWD

5. Electrical Characteristics

5.1 DC Characteristics

VDD=5.0V, VSS=0V, T OP =25  C

Items

Symbol

MIN.

TYP.

MAX.

Unit Applicable Pin

VDD

3.1

3.3

3.5

V

Note 1

Power Voltage

VLED

4.8

5.0

5.2

V

Note 2

I DD

-

200

250

mA

Current Consumption

I LED

-

380

450

mA Note 3

Input logic high voltage

V IH

0.7VDD

-

VDD

V

Note 4

Input logic low voltage

V IL

0

-

0.3VDD

V

LED life time

-

20,000

-

-

Hr

Note 5

Note 1: VCC setting should match the signals output voltage (refer to Note 4) of customer ’ s

system board.

Note 2: LED driving voltage.

Note 3: LED driving current.

Note 4: DCLK,DE,HS,VS,R0~R5,G0~G5,B0~B5.

Note 5: The “ LED life time ” is defined as the module brightness decrease to 50% original

brightness at Ta=25 ℃ and VLED=5.0V. The LED lifetime could be decreased if

operating VLED is larger than 5.0V.

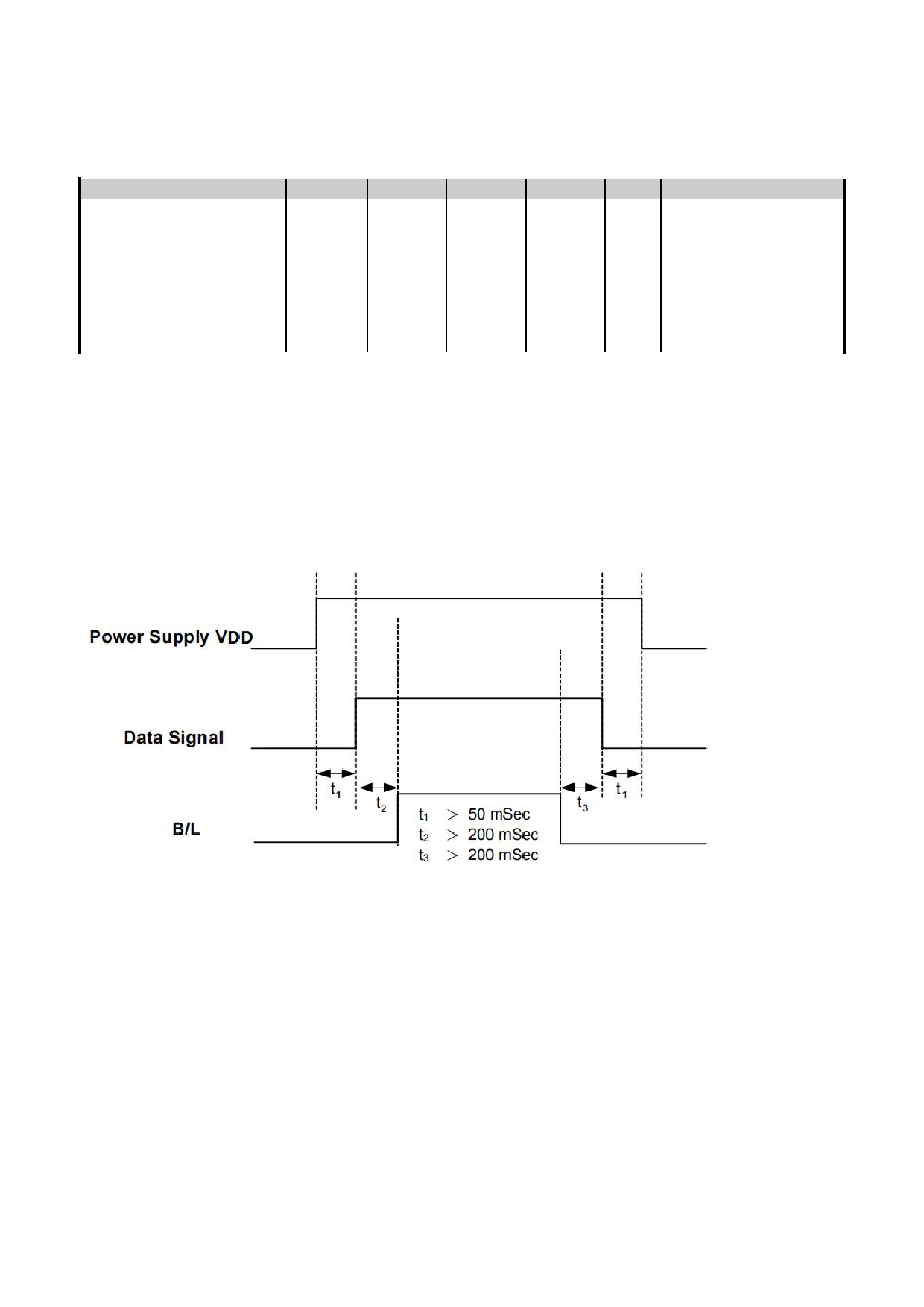

5.2 Power Sequence

Note:Data includes DE, VS ,HS,B0~B5,G0~G5,R0~R5,DCLK.

URL: www.topwaydisplay.com

Document Name: LMT056DIDFWD-Manual-Rev0.1.doc

www.topwaysz.com

Page: 6 of 14

TOPWAY

LCD Module User Manual

LMT056DIDFWD

6. AC Characteristics

6.1 Timing Conditions

Input/Output Timing

Item

Symbol

Values

Unit

Remark

Min.

Typ.

Max.

PXLCLK clock time

Tclk

33.3

39.7

-

ns

PXLCLK pulse duty

Tcwh

40

50

60

% Tclk

DATA set-up time

Tdsu

12

-

-

ns DATA to PXLCLK

DATA hold time

Tdhd

12

-

-

ns DATA to PXLCLK

DE setup time

Tesu

12

-

-

ns DE to PXLCLK

VSYNC setup time

Tvst

12

-

-

ns

VSYNC hold time

Tvhd

12

-

-

ns

HSYNC setup time

Thst

12

-

-

ns

HSYNC hold time

Thhd

12

-

-

ns

HSYNC period time

Th

22.91

31.76

-

ns

HSYNC width

Thwh

1

-

-

Tclk

VSYNC width

Tvwh

1

-

-

Th

HSYNC to CLKIN

Thc

-

-

1

Tclk

DE Mode input Timing Limitation

DE Mode

Values

Unit

Remark

Min.

Typ.

Max.

THC

48

160

765

tclk

THD

640

640

640

tclk

TH

688

800

1405

tclk 1TH=1line

TVC

6

45

255

line

TVD

480

480

480

line

TV

486

525

735

line 1TV=1field

HV Mode input Timing Limitation

HV Mode

Values

Unit

Remark

Min.

Typ.

Max.

Thwh

-

10

-

tclk

Thbp

-

134

-

tclk

Thfp

-

16

-

tclk

THD

-

640

-

tclk

TH

-

800

-

tclk 1TH=1line

Tvwh

-

2

-

line

Tvbp

-

11

-

line

Tvfp

-

32

-

line

TVD

-

480

-

line

TV

-

525

-

line 1TV=1field

URL: www.topwaydisplay.com

Document Name: LMT056DIDFWD-Manual-Rev0.1.doc

www.topwaysz.com

Page: 7 of 14

TOPWAY

LCD Module User Manual

LMT056DIDFWD

6.2 Timing Diagram

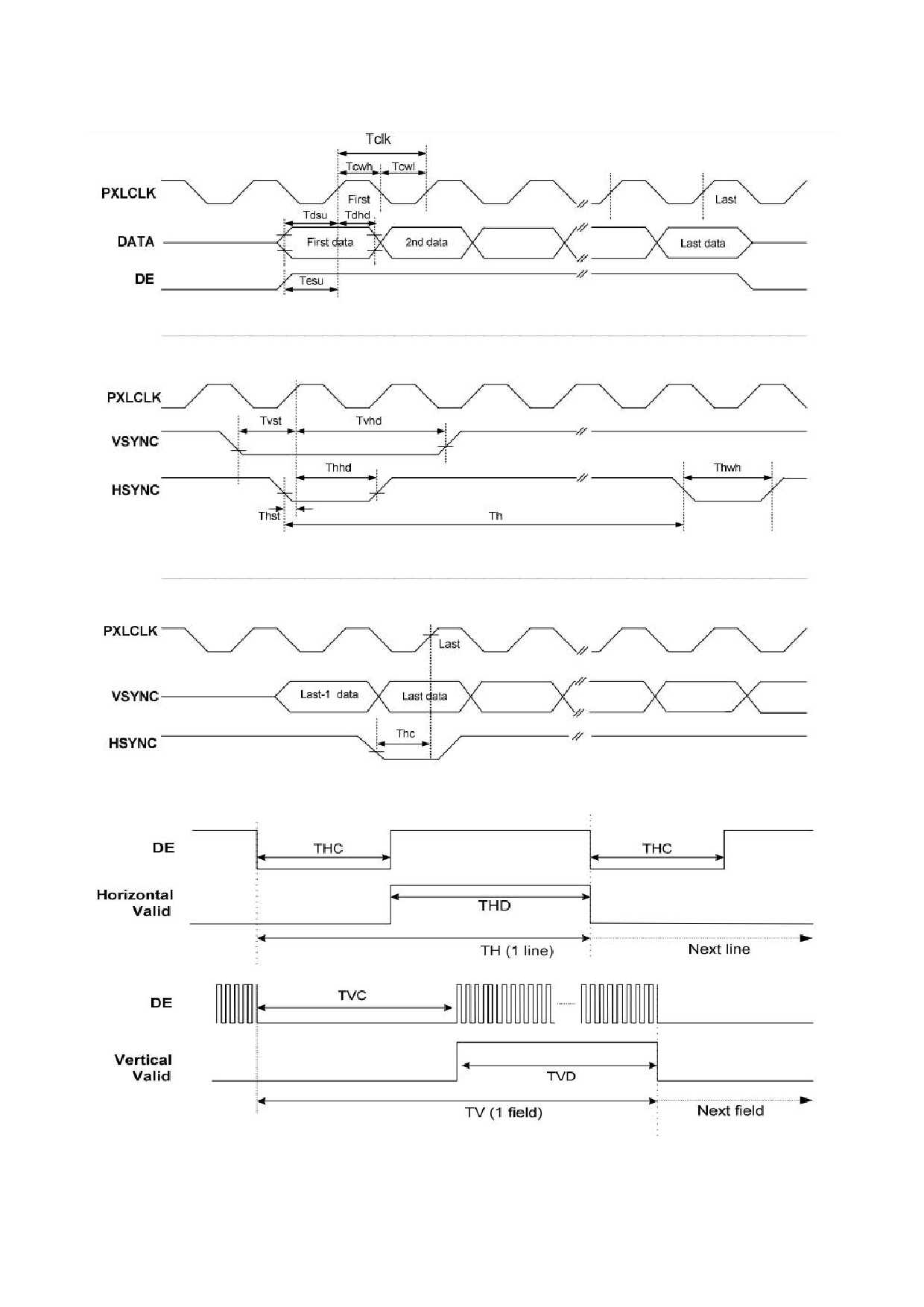

Fig.6.2-1 Clock and Data Input Timing Diagram

Fig.6.2-2 DE Mode Input Timing

URL: www.topwaydisplay.com

Document Name: LMT056DIDFWD-Manual-Rev0.1.doc

www.topwaysz.com

Page: 8 of 14

TOPWAY

LCD Module User Manual

LMT056DIDFWD

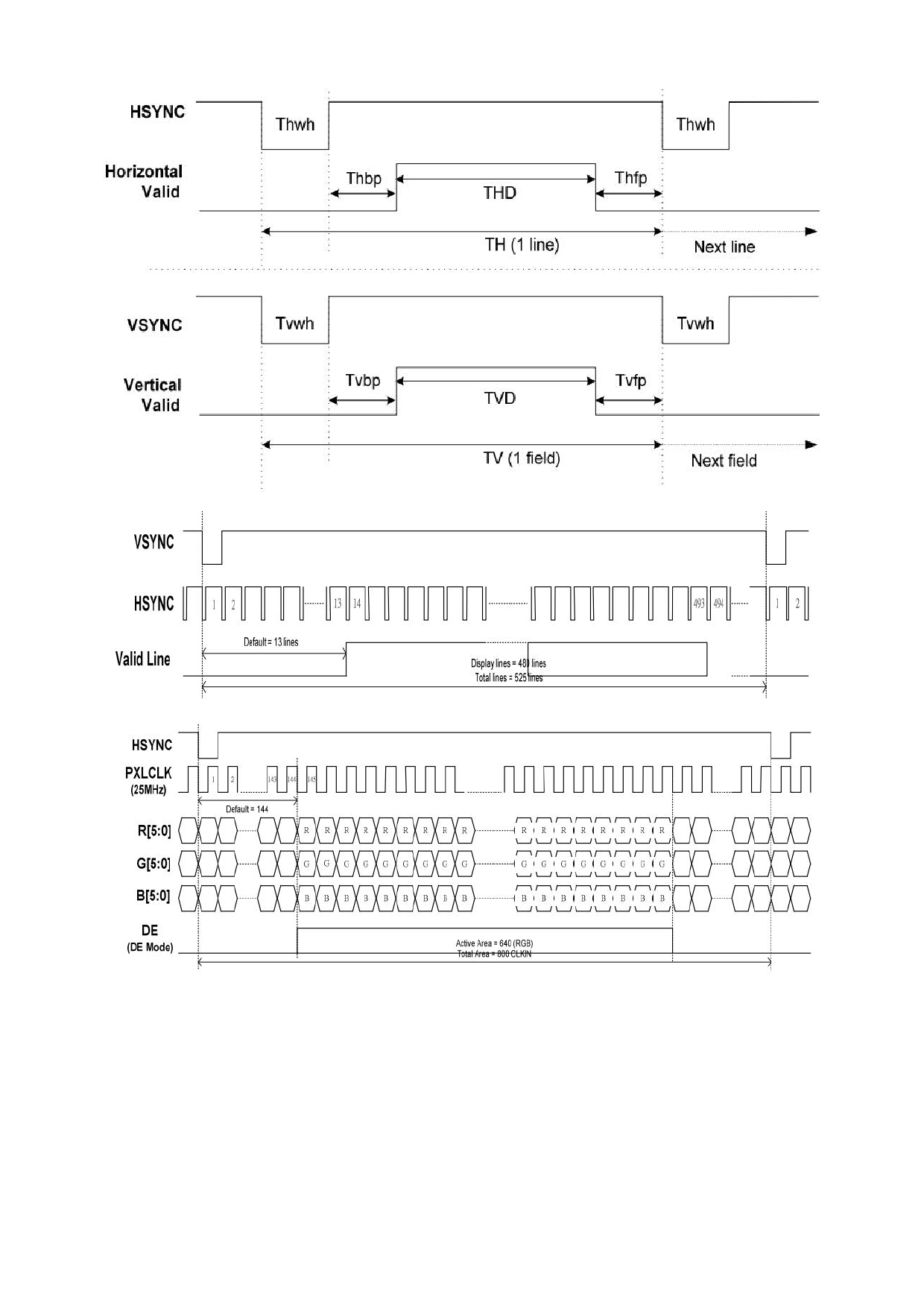

Fig.6.2-3 HV Mode Input Timing

Fig.6.2-4 18 bit RGB mode for 640 x (RGB) x 480

URL: www.topwaydisplay.com

Document Name: LMT056DIDFWD-Manual-Rev0.1.doc

www.topwaysz.com

Page: 9 of 14

TOPWAY

LCD Module User Manual

LMT056DIDFWD

7. Optical Characteristics

Item

Symbol

Condition

MIN.

TYP.

MAX.

UNIT

Note.

θ L

9 o’clock

60

70

-

Viewing angle

θ R

3 o’clock

60

70

-

degree

*2

(CR ≥ 10)

θ T

12 o’clock

40

50

-

θ B

6 o’clock

60

70

-

T f

-

10

20

msec

Response Time

*3

T r

-

15

30

msec

Contrast ratio

CR

Normal

400

500

-

-

W X

0.26

0.31

0.36

-

*1

Color chromaticlty

θ=0 °

W Y

0.28

0.33

0.38

-

Luminance

L

300

350

-

cd/m 2

*4

Luminance uniformity

Y U

70

75

-

%

*4

Note:

*1. Definition of Contrast Ratio

The contrast ratio could be calculate by the following expression:

Contrast Ratio (CR) = Luminanc with all pixels white / Luminance with all pixels black

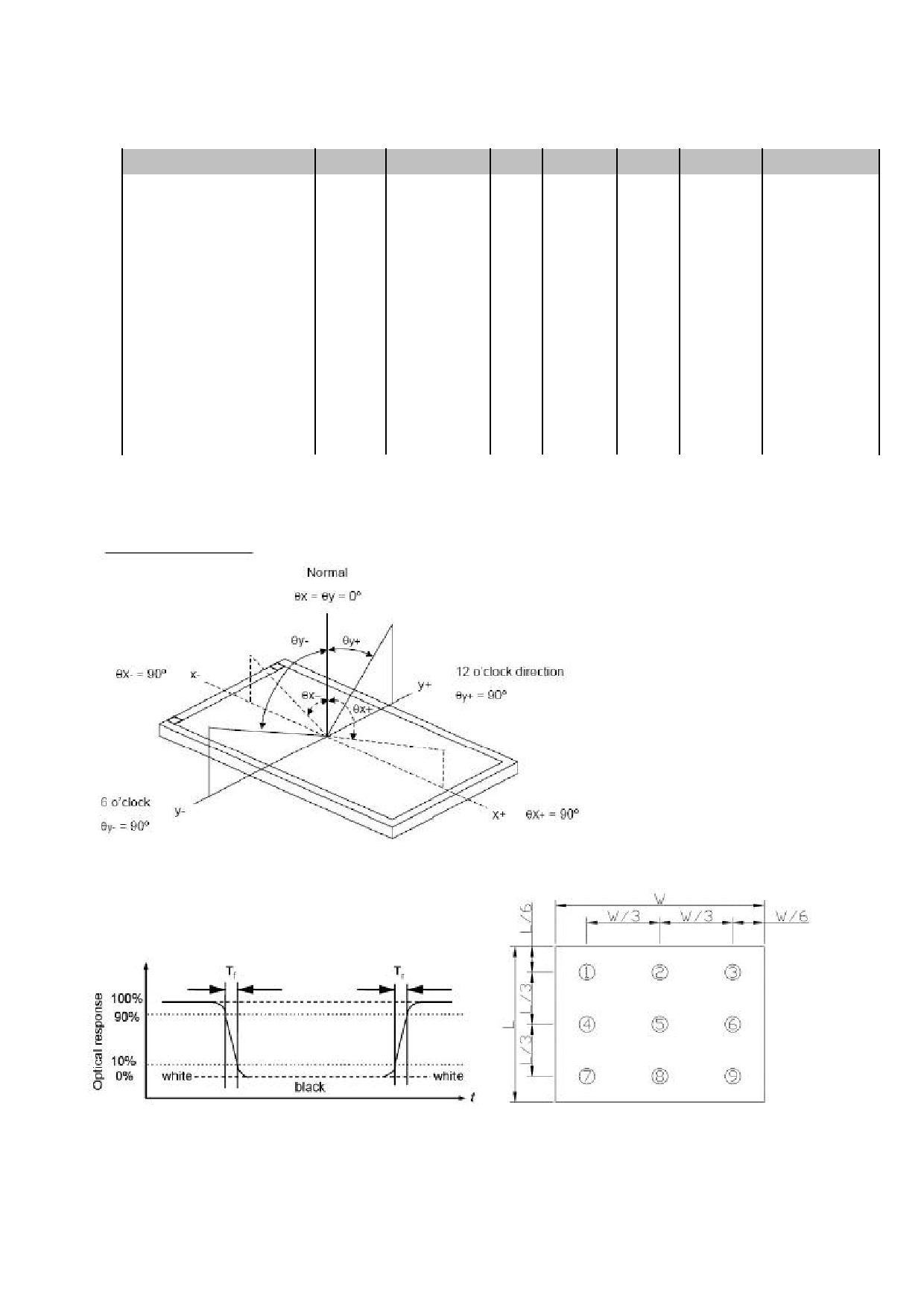

*2 Definition of Viewing Angle

*3 Definition of response time

*4 Definition of Luminance Uniformity

Luminance uniformity (Lu)=

Min. Luminance form pt1~pt9 / Max Luminance form Pt1~pt9

URL: www.topwaydisplay.com

Document Name: LMT056DIDFWD-Manual-Rev0.1.doc

www.topwaysz.com

Page: 10 of 14

TOPWAY

LCD Module User Manual

LMT056DIDFWD

8. LCD Module Design and Handling Precautions 8. 液晶显示模块设计和使用须知

- Please ensure V0, VCOM is adjustable, to enable LCD module get the - 请注意 V0, VCOM 的设定, 以确保液晶显示模块

best contrast ratio under different temperatures, view angles and

在不同的使用温度下以及在不同的视角和位置观

positions.

察模块显示，均能达到最佳对比度，请务必将应

用电路上设置为对比度可调。

- Normally display quality should be judged under the best contrast ratio - 请注意液晶显示模块的显示品质判定是指在正常

within viewable area. Unexpected display pattern may come out under

对比度下以及视窗(V.A)范围内进行的，非正常对

abnormal contrast ratio.

比度下液晶可能会出现非预期的显示不良，应注

意区分。

- Never operate the LCD module exceed the absolute maximum ratings.

- 请勿在最大额定值以外使用液晶显示模块。

- Never apply signal to the LCD module without power supply. (No Hot- - 请勿在没有接通电源的条件下，给液晶显示模块

plugging)

输送信号。(禁止热插拔)

- Keep signal line as short as possible to reduce external noise

- 请尽可能缩短信号线的连接，以避免对液晶显示

interference.

模块的信号干扰。

- IC chip (e.g. TAB or COG) is sensitive to light. Strong light might cause

- 集成电路因 IC 芯片(如 TAB 或 COG)对紫外线极为

malfunction. Light sealing structure casing is recommended.

敏感，强光环境下可能会引起液晶显示模块功能

失效，故应采用不透光的外壳。

- Make sure there is enough space (with cushion) between case and LCD

- 请在液晶显示模块与外壳之间保留足够的空间(可

panel, to prevent external force passed on to the panel; otherwise that

使用衬垫)，以缓冲外力对液晶显示模块的损坏或

may cause damage to the LCD and degrade its display result.

因受力不均而产生的显示不匀等异常现象。

- 避免液晶显示屏在某一画面下长时间点亮，否则

- Avoid showing a display pattern on screen for a long time (continuous ON

有出现残影的风险；请通过软件每隔一段时间改

segment).

变一次画面。

- LCD module reliability may be reduced by temperature shock.

- 液晶显示模块的可靠性可能因温度冲击而降低。

- When storing and operating LCD module, avoids exposure to direct

- 请勿在阳光直射、高湿、高温或低温下储存和使

sunlight, high humidity, high or low temperature. They may damage or

用液晶显示模块，这将造成液晶显示模块的损坏

degrade the LCD module.

或失效。

- Never leave LCD module in extreme condition (max./min storage/operate

- 请勿在极限环境(最大/最小存储/工作温度)下使

temperature) for more than 48hr.

用或放置液晶显示模块超过 48 小时以上。

- Recommend LCD module storage conditions is 0 C~40 C <80%RH.

- 液 晶 显 示 模 块 建 议 存 储 条 件 为 : 0 C~40 C

<80%RH 。

- LCD module should be stored in the room without acid, alkali and harmful

- 请勿让液晶显示模块存储于带有 酸性, 碱性, 有

gas.

害气体环境之中。

- Avoid dropping & violent shocking during transportation, and no

- 在运输过程中, 请勿让液晶显示模块跌落与猛烈

excessive pressure press, moisture and sunlight.

震动, 同时避免 异常挤压, 高湿度, 与阳光照

射.

- LCD module can be easily damaged by static electricity. Please maintain

- 液晶显示模块极易受静电损坏，请务必保证液晶

an optimum anti-static working environment to protect the LCD module.

显示模块在防静电的工作环境中使用或保存。

(eg. ground the soldering irons properly)

(如: 烙铁正确接地,等)

- Be sure to ground the body when handling LCD module.

- 拿取液晶显示模块时需注意操作人员的接地情

况。

- Only hold LCD module by its sides. Never hold LCD module by applying

- 请手持液晶显示模块的边沿取放模块，防止热压

force on the heat seal or TAB.

纸或 TAB 部位受力。

- When soldering, control the temperature and duration avoid damaging the

- 焊接液晶模块时，请注意控制烙铁的温度、焊接

backlight guide or diffuser which might degrade the display result such as

时间，以免烫坏导光板或偏光片，导致显示不匀

uneven display.

等不良现象发生。

- Never let LCD module contact with corrosive liquids, which might cause

- 请勿使用洗板水等腐蚀性液体接触液晶模块，以

damage to the backlight guide or the electric circuit of LCD module.

免腐蚀导光板或模块电路。

- Only clean LCD with a soft dry cloth, Isopropyl Alcohol or Ethyl Alcohol.

- 仅可使用柔软的干布, 异丙醇或乙醇清洁液晶屏

Other solvents (e.g. water) may damage the LCD.

表面，其他任何溶剂(如:水)都有可能损坏液晶模

块。

- Never add force to components of LCD module. It may cause invisible

- 请勿挤压液晶显示模块上的元器件，以避免产生

damage or degrade the module's reliability.

潜在的损坏或失效而影响产品可靠性。

- When mounting LCD module, please make sure it is free from twisting,

- 装配液晶显示模块时，请务必注意避免液晶显示

warping and bending.

模块的扭曲或变形。

- Do not add excessive force on surface of LCD, which may cause the

- 请勿挤压液晶显示屏表面，这将导致显示颜色的

display color change abnormally.

异常。

URL: www.topwaydisplay.com

Document Name: LMT056DIDFWD-Manual-Rev0.1.doc

www.topwaysz.com

Page: 11 of 14

TOPWAY

LCD Module User Manual

LMT056DIDFWD

- LCD panel is made with glass. Any mechanical shock (e.g. dropping from - 液晶屏由玻璃制作而成，任何机械碰撞(如从高处

high place) will damage the LCD module.

跌落)均有可能损坏液晶显示模块。

- Protective film is attached on LCD screen. Be careful when peeling off - 液晶屏表面带有保护膜, 揭除保护膜时需要注意

this protective film, since static electricity may be generated.

可能产生的静电。

- Polarizer on LCD gets scratched easily. If possible, do not remove LCD - 因液晶显示屏表面的偏光片极易划伤，安装完成

protective film until the last step of installation.

之前请尽量不要揭下保护膜。

- When peeling off protective film from LCD, static charge may cause - 请缓慢揭除保护膜，在此过程中液晶显示屏上可

abnormal display pattern. The symptom is normal, and it will turn back to

能会产生静电线，此为正常情况，可在短时间内

normal in a short while.

消失。

- LCD panel has sharp edges, please handle with care.

- 请注意避免被液晶显示屏的边缘割伤。

- Never attempt to disassemble or rework LCD module.

- 请不要试图拆卸或改造液晶显示模块。

- If display panel is damaged and liquid crystal substance leaks out, be - 当液晶显示屏出现破裂, 内部液晶液体可能流出;

sure not to get any in your mouth, if the substance comes into contact

相关液体不可吞吃, 绝对不可接触嘴巴, 如接触

with your skin or clothes promptly wash it off using soap and water.

到皮肤或衣服, 请使用肥皂与清水彻底清洗.

9. TFT QA Standard

9.1 INSPECTION CONDITION 检验条件

Unless otherwise stated ， all the inspections are carryout under the following condition

除非有特别的规定，检验条件按以下执行。

The following standards only apply to the visible area. As long as function good non-visual

area appearance can be ignored. Available deerskin with petroleum ether, a clean stains do not

apply to the exterior standard. If debris in a certain direction is perpendicular to the direction of

three times the length of that line debris; the insulation as granular debris; the silver carbon glue as

a rejection of defects.

以下标准只适用于可视区。只要功能良好非可视区的外观可忽略。可用鹿皮沾石油醚，擦干净

的污渍不适用于该外观标准。如 果杂物某方向的长度是垂直方向的 3 倍则认为是线状杂物；多出的

绝缘点看作粒状杂物；多出的 银碳胶视为拒收缺陷。

No. Items 项目

Conditions 条件

1

Lighting

Illumination: Appearance 300-700Lux

照明

环境亮度在 300~700LUX

2

Inspection Distance

30-40cm form the test sample ， within normal viewing angle

检验距离

眼睛距显示器表面 30~40cm

3

Temperature

Room Temperature (25 ºC), no condensation

环境温度

室温（ 25 度 ±5% ），无凝水

4

Viewing Angle

U/D: 45º/45º, L/R: 45º/45º

视角

前后 45 度角范围内，左右 45 度角范围内

5

Inspection Time

15 seconds

检验时间

15 秒内

6

Defect Allowance

5 max

缺陷总数

允许 5 个

9.2 Display Pattern 显示缺陷

Type 类别

No. Items /Contents 检查项目

MA

MI Standard 标准

Judgment 判定

1

No Display

√

--

Not Allowed

无显示

不允许

2

Line defect

√

--

Not Allowed

缺少行或列

不允许

3

Display abnormally

√

--

Not Allowed

错误的显示

不允许

4

Function Defective

√

--

Not Allowed

缺少功能

不允许

URL: www.topwaydisplay.com

Document Name: LMT056DIDFWD-Manual-Rev0.1.doc

www.topwaysz.com

Page: 12 of 14

TOPWAY

LCD Module User Manual

LMT056DIDFWD

5

Glass Crack

√

--

Not Allowed

玻璃破碎

不允许

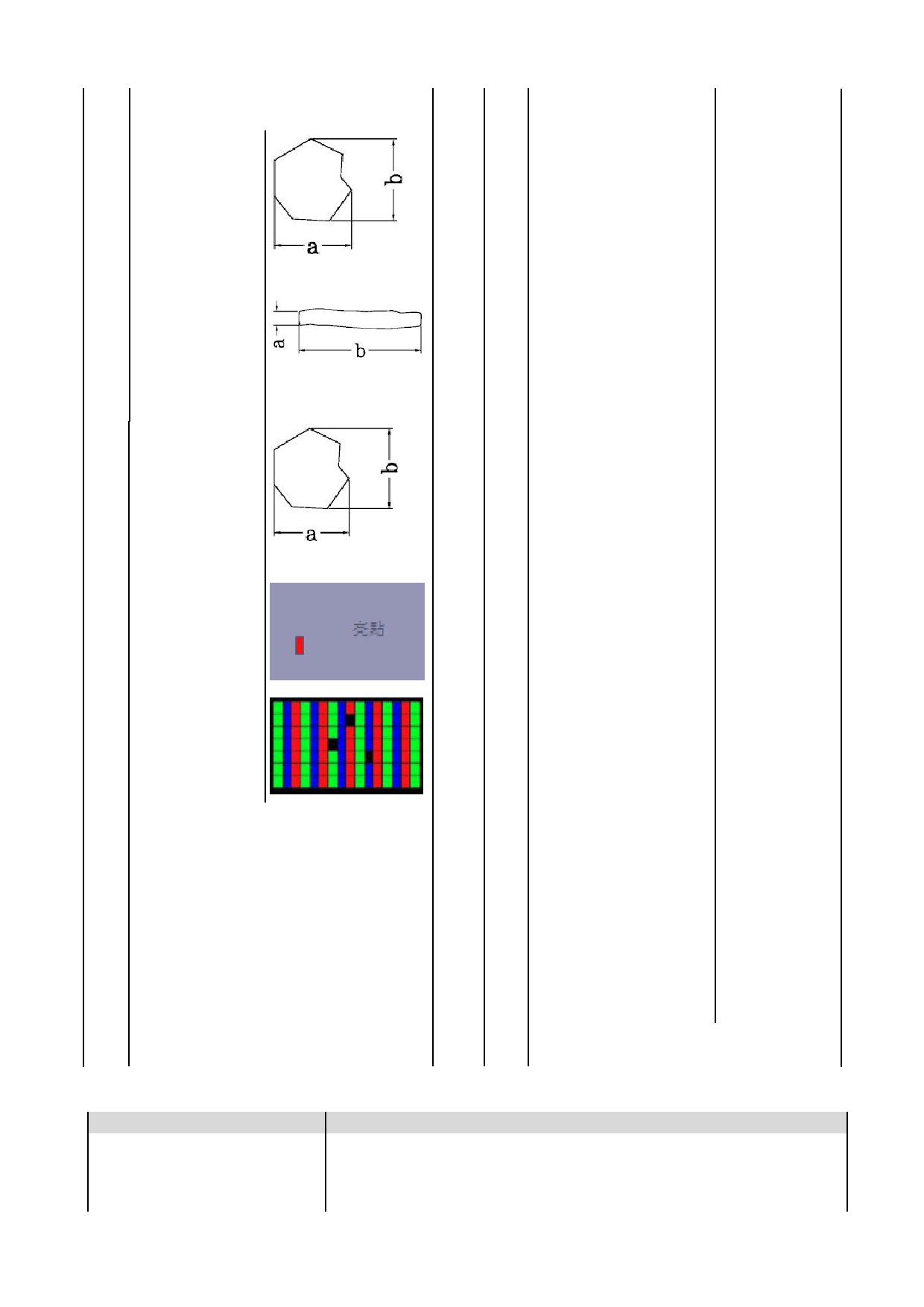

Spot Defect

√

(a+b)/2≤0.25

Allowed

6

Including:

允许

Black spot,

White spot

0.25<(a+b)/2≤0.5

3 max.

Foreign particle,

允许 3 个

Polarizer dirt,

Cell particle

(a+b)/2 ＞ 0.5

Not Allowed

黑点 / 白点

不允许

7

Line Defect

√

a≤0.05

Allowed

Including:

允许

Black line,

0.05<a≤0.08and b≤3

3max.

White line,

允许 3 个

Scratch

Not Allowed

线

a ＞ 0.08 or b ＞ 3

不允许

8

Polarizer

√

(a+b)/2≤0.25

Allowed

Dent/Bubble

允许

偏光片气泡

0.25< (a+b)/2≤0.5

3 max.

允许 3 个

(a+b)/2>0.5

Not Allowed

不允许

9

Bright dot defect

√

Random

2 max.

允许 2 个

亮点

3 consecutive dots

Not Allowed

( 在全黑屏下多像

3 个或以上连续的点

不允许

素点）

10

Dark dot defect

√

Random

3 max.

允许 3 个

暗点

4 consecutive dots

Not Allowed

（在全红或全绿或

4 个或以上连续的点

不允许

全蓝屏下缺像素

点）

13

Bright dot defect + Dark dot defect

√

--

4max.

亮点 + 暗点

允许 4 个

14

FPC or FFC

√

Broken

Not Allowed

FPC/FFC

损坏

不允许

√

naked wire 、 hole

Not Allowed

裸线、孔洞

不允许

√

FPC kink 、 indentation

Lgnore

Top wound 、 scratch

忽略

FPC 折痕、顶伤

15

PCBA defect

--

--

Refer to IPC-A-610

--

PCBA 缺陷

按照 IPC-A-610

16

Bezel scratches,pits,bumps,Don’t try dirt

√

Do not affect dispiay,assembly,ignore

外框划痕，凹点，凸点，赃物

不影响显示，组装则忽略

9.3 Quality Level and Sampling 抽样方法

Items 项目

Standard 标准

Sampling Standard 引用标准

MIL-STD-105E

Sampling Level 抽样等级

Ⅱ

AQL level 合格判定水平

MA: AQL=0.65

MI: AQL=1.0

URL: www.topwaydisplay.com

Document Name: LMT056DIDFWD-Manual-Rev0.1.doc

www.topwaysz.com

Page: 13 of 14

TOPWAY

LCD Module User Manual

LMT056DIDFWD

Warranty

This product has been manufactured to our company’s specifications as a part for use in your company’s general

electronic products. It is guaranteed to perform according to delivery specifications. For any other use apart from

general electronic equipment, we cannot take responsibility if the product is used in medical devices, nuclear power

control equipment, aerospace equipment, fire and security systems, or any other applications in which there is a direct

risk to human life and where extremely high levels of reliability are required. If the product is to be used in any of the

above applications, we will need to enter into a separate product liability agreement.

- We cannot accept responsibility for any defect, which may arise form additional manufacturing of the product

(including disassembly and reassembly), after product delivery.

- We cannot accept responsibility for any defect, which may arise after the application of strong external force to the

product.

- We cannot accept responsibility for any defect, which may arise due to the application of static electricity after the

product has passed our company’s acceptance inspection procedures.

- When the product is in CCFL models, CCFL service life and brightness will vary according to the performance of the

inverter used, leaks, etc. We cannot accept responsibility for product performance, reliability, or defect, which may

arise.

- We cannot accept responsibility for intellectual property of a third part, which may arise through the application of

our product to our assembly with exception to those issues relating directly to the structure or method of

manufacturing of our product.

URL: www.topwaydisplay.com

Document Name: LMT056DIDFWD-Manual-Rev0.1.doc

www.topwaysz.com

Page: 14 of 14
