LMT215FNQFWEA
LCD Module User Manual
Prepared by:
Checked by:
Approved by:
LuoLin
Date: 2026-09-16
Date:
Date:
Rev. Descriptions
Edit
Release Date
0.1
Preliminary
LuoLin
2026-09-16
URL: www.topwaydisplay.com
Document Name: LMT215FNQFWEA-Manual-Rev0.1.doc
Page: 1 of 13
TOPWAY
LCD Module User Manual
LMT215FNQFWEA
Table of Content
1. General Specification........................................................................................................... 3
2. Block Diagram......................................................................................................................3
3. Terminal Function.................................................................................................................4
3.1 K1 TFT Input Terminal( MSBKT2407P30HB or equivalent)........................................... 4
3.2 K2 LED Driver Terminal( MS2426P14RHE or equivalent)............................................. 4
4. Absolute Maximum Ratings..................................................................................................5
5. Electrical Specifications....................................................................................................... 5
5.1 DC Characteristics for Panel Driving..............................................................................5
5.2 BackLight....................................................................................................................... 6
6. Signal Timing Specification.................................................................................................. 6
6.1 Timing (DE mode only).................................................................................................. 6
6.2 LVDS DC characteristics............................................................................................... 6
6.3 LVDS AC characteristics................................................................................................7
6.4 LVDS data mapping.......................................................................................................8
6.5 Recommended Power ON/OFF Sequence....................................................................8
7. Optical Characteristics......................................................................................................... 9
8. LCD Module Design and Handling Precautions................................................................. 11
Warranty................................................................................................................................ . 13
URL: www.topwaydisplay.com
Document Name: LMT215FNQFWEA-Manual-Rev0.1.doc
Page: 2 of 13
TOPWAY
LCD Module User Manual
LMT215FNQFWEA
1. General Specification
Screen Size(Diagonal) :
21.5”
Active Area :
476.06x 267.79(mm)
Number of dots :
1920(RGB) x1080
Pixel Pitch ：
0.24795 x 0.24795(mm)
Color Depth:
16.7M
Signal Interface:
2-port LVDS(6/8bit selectable)
Display Mode:
Normal Black, Transmissive
Outline Dimension:
495.6x292.2x13.99(mm)

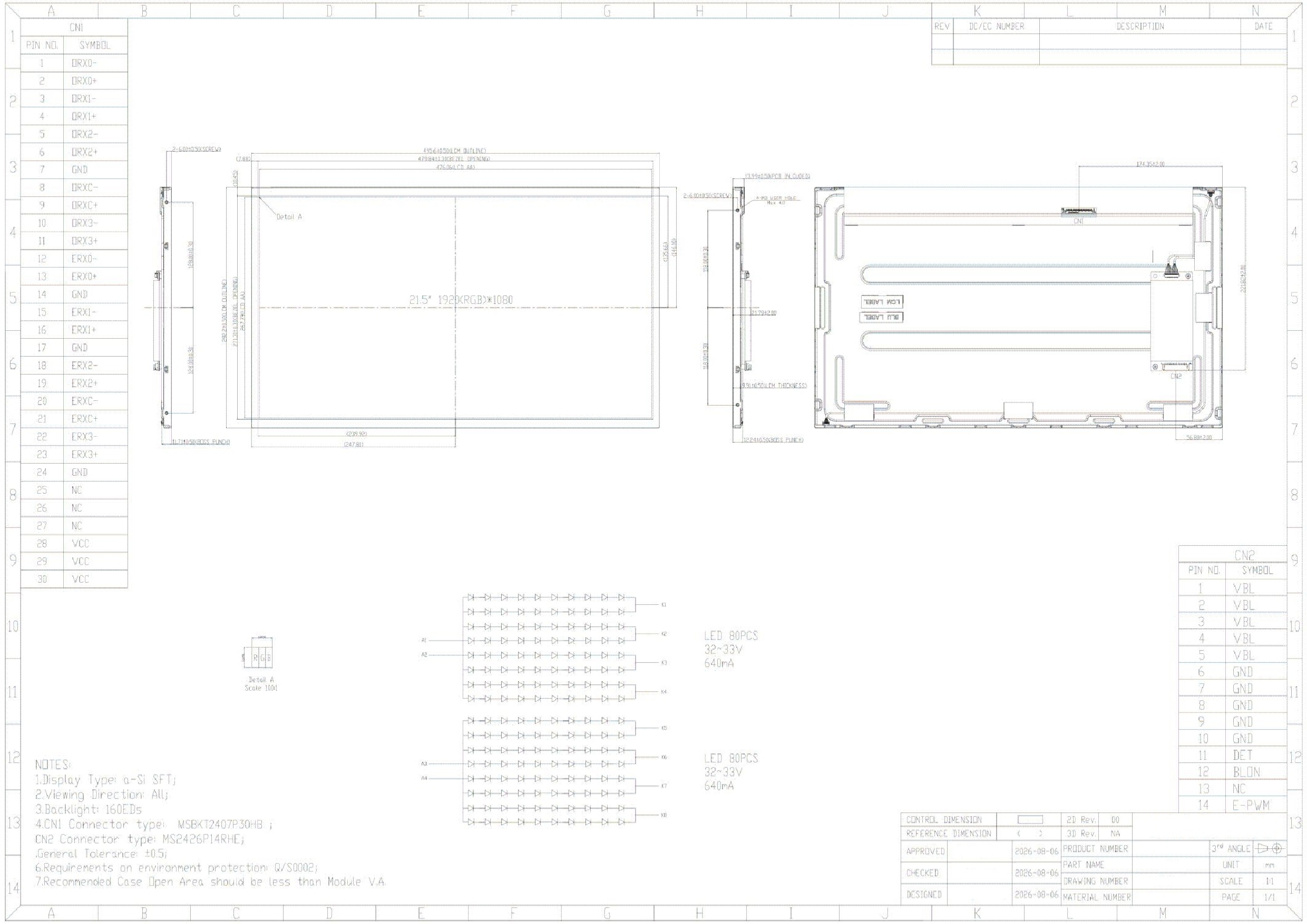

(see outline drawing for details)
Pixel Configuration:
R.G.B. Vertical Stripe
Viewing Direction :
F ull
Backlight :
White LED s
Operating Temperature :
-30 ~ +80°C
Storage Temperature :
-40 ~ +85°C
Note:
*1. Color tone may slightly change by temperature and driving condition.
*2. Acquisition product for UL 62368-1, 4th Ed; CAN/CSA C22.2 No. 62368-1:25, 4th Ed
*3.This product will comply with the European RoHS directive (2011/65/EU) and Delegated Directive
(2015/863/EU, Amending Annex II of 2011/65/EU)

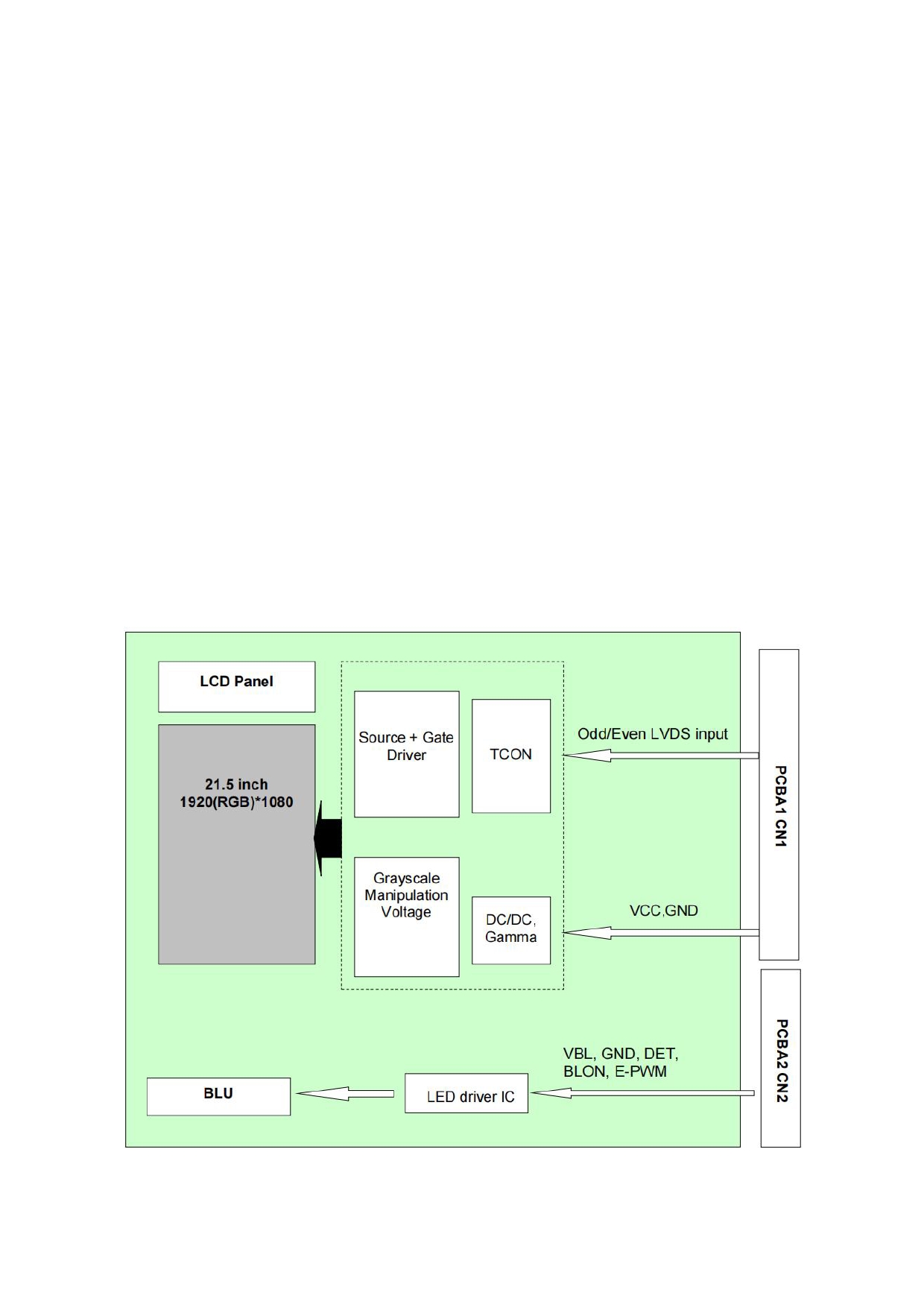

2. Block Diagram
URL: www.topwaydisplay.com
Document Name: LMT215FNQFWEA-Manual-Rev0.1.doc
Page: 3 of 13
TOPWAY
LCD Module User Manual
LMT215FNQFWEA
3. Terminal Function
3.1
K1 TFT Input Terminal( MSBKT2407P30HB or equivalent)
NO
Symbol I/O Description
Comment
1
ORX0-
I
Negative Transmission data of Pixel 0 (ODD)
2
ORX0+
I
Positive Transmission data of Pixel 0 (ODD)
3
ORX1-
I
Negative Transmission data of Pixel 1 (ODD)
4
ORX1+
I
Positive Transmission data of Pixel 1 (ODD)
5
ORX2-
I
Negative Transmission data of Pixel 2 (ODD)
6
ORX2+
I
Positive Transmission data of Pixel 2 (ODD)
7
GND
P
Ground
8
ORXC-
I
Negative Transmission Clock (ODD)
9
ORXC+ I
Positive Transmission Clock (ODD)
10
ORX3-
I
Negative Transmission data of Pixel 3 (ODD)
11
ORX3+
I
Positive Transmission data of Pixel 3 (ODD)
12
ERX0-
I
Negative Transmission data of Pixel 0 (EVEN)
13
ERX0+
I
Positive Transmission data of Pixel 0 (EVEN)
14
GND
P
Ground
15
ERX1-
I
Negative Transmission data of Pixel 1 (EVEN)
16
ERX1+
I
Positive Transmission data of Pixel 1 (EVEN)
17
GND
P
Ground
18
ERX2-
I
Negative Transmission data of Pixel 2 (EVEN)
19
ERX2+
I
Positive Transmission data of Pixel 2 (EVEN)
20
ERXC-
I
Negative Transmission Clock (EVEN)
21
ERXC+
I
Positive Transmission Clock (EVEN)
22
ERX3-
I
Negative Transmission data of Pixel 3 (EVEN)
23
ERX3+
I
Positive Transmission data of Pixel 3 (EVEN)
24
GND
P
Ground
Note 1
25
NC
N
No connection
26
NC
N
No connection
27
NC
N
No connection
28
VDD
P
Power Supply: +5V
29
VDD
P
Power Supply: +5V
30
VDD
P
Power Supply: +5V
Note1: This pin should be connected with GND.
3.2
K2 LED Driver Terminal( MS2426P14RHE or equivalent)
NO
Symbol I/O Description
Comment
1-5
VBL
P
Power supply +24V
6-10
GND
P
Ground
11
DET
O
Fault detect
12
BLON
I
Backlight on/off control input
13
NC
N
No connection
14
E-PWM I
Brightness control input
URL: www.topwaydisplay.com
Document Name: LMT215FNQFWEA-Manual-Rev0.1.doc
Page: 4 of 13
TOPWAY
LCD Module User Manual
LMT215FNQFWEA

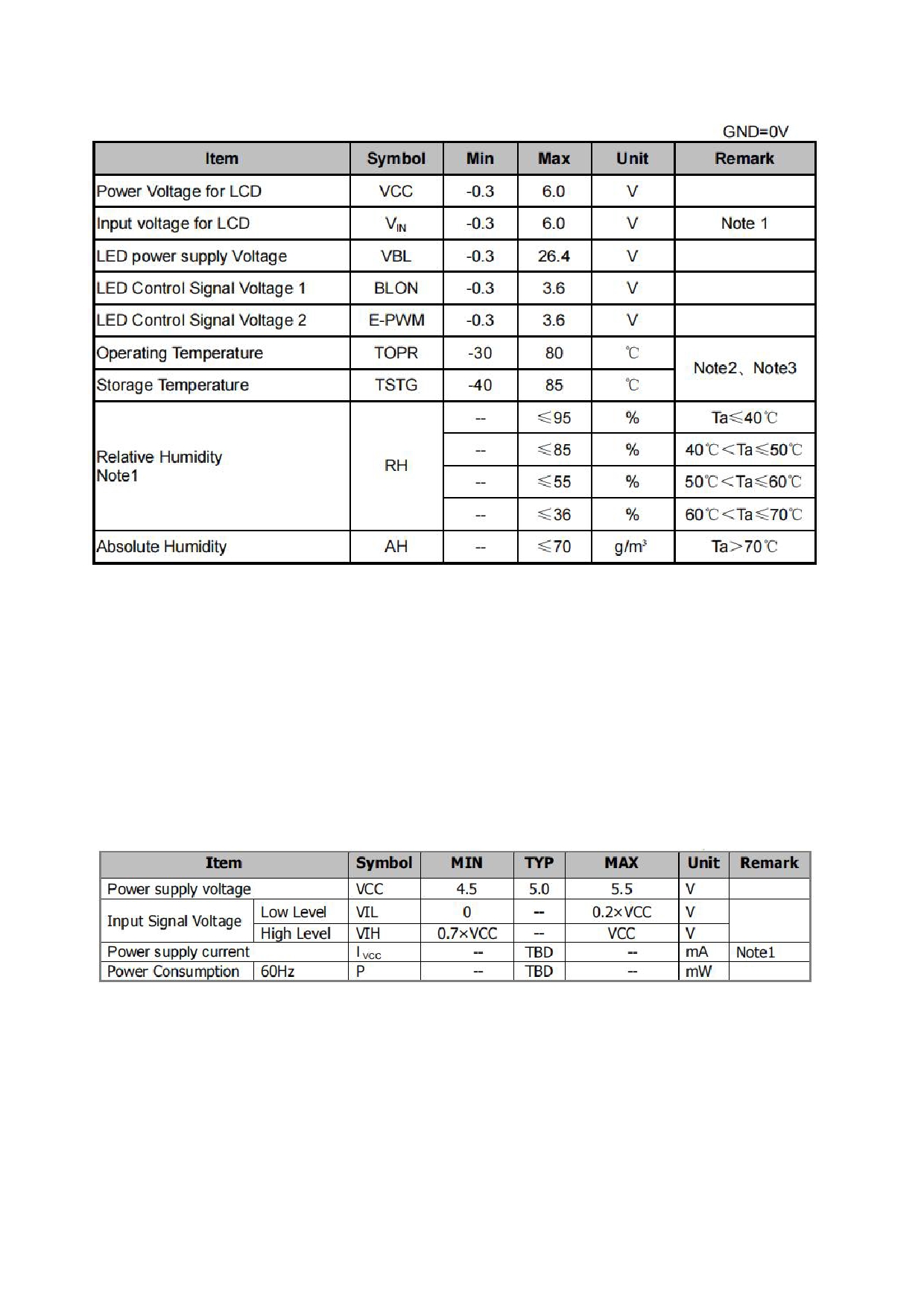

4. Absolute Maximum Ratings
Notes ：
1. Input voltage include REVERSE.
2. Ta means the ambient temperature.
It is necessary to limit the relative humidity to the specified temperature range.
Condensation on the module is not allowed.
3. The absolute maximum rating values of this product are not allowed to be exceeded at any times.
When exceeded the maximum ratings, the characteristics of the module may not be recovered, or
in an extreme condition, the module may be permanently destroyed.
5. Electrical Specifications
5.1
DC Characteristics for Panel Driving
GND=0V,T a =25°C
Notes :
1.Tested with all white pattern.
URL: www.topwaydisplay.com
Document Name: LMT215FNQFWEA-Manual-Rev0.1.doc
Page: 5 of 13
TOPWAY
LCD Module User Manual
LMT215FNQFWEA
5.2
BackLight
Note:
1.Optical performance should be evaluated at Ta=25 ℃ only.
6. Signal Timing Specification
6.1

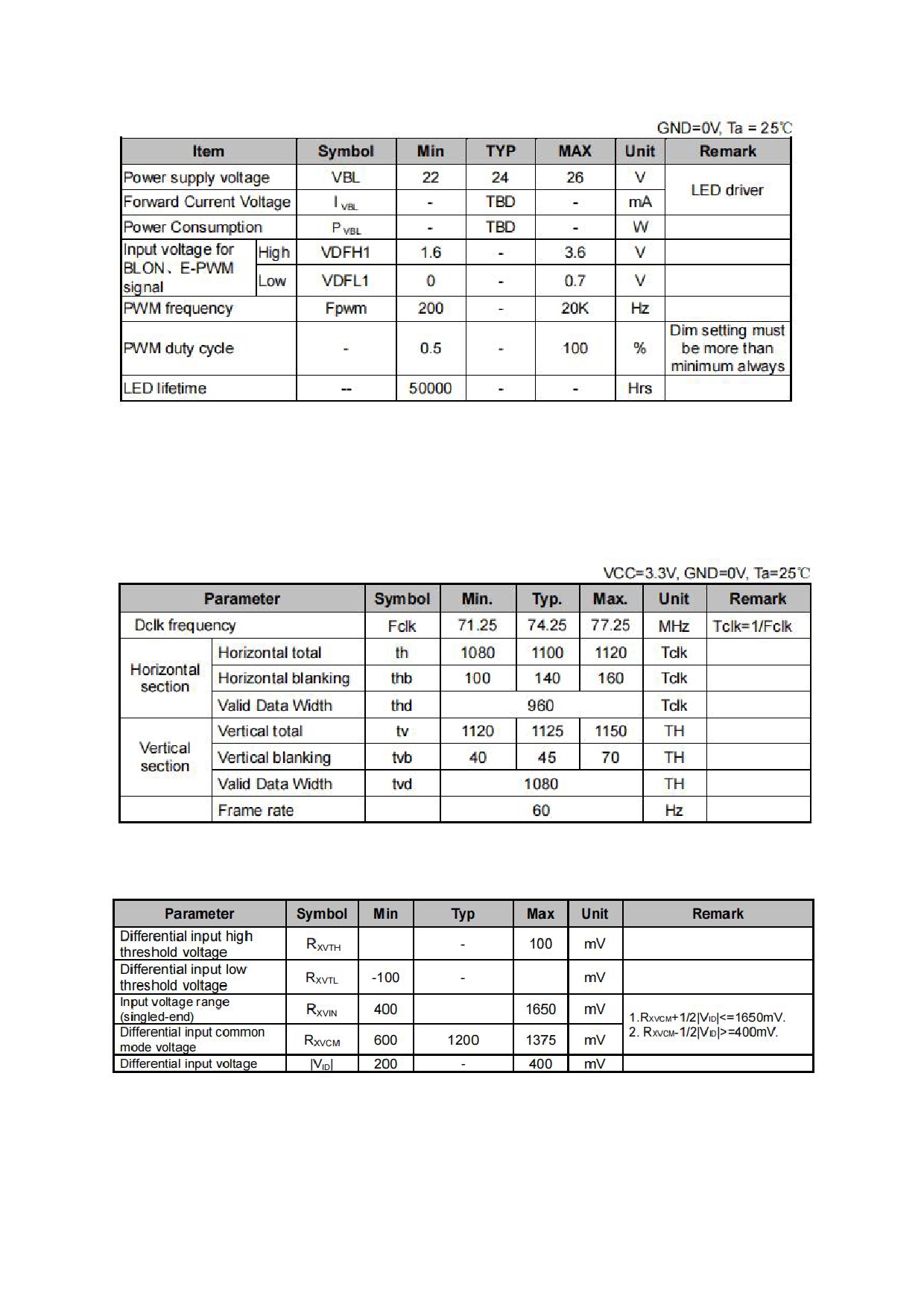

Timing (DE mode only)
6.2
LVDS DC characteristics
URL: www.topwaydisplay.com
Document Name: LMT215FNQFWEA-Manual-Rev0.1.doc
Page: 6 of 13
TOPWAY
LCD Module User Manual
LMT215FNQFWEA
6.3

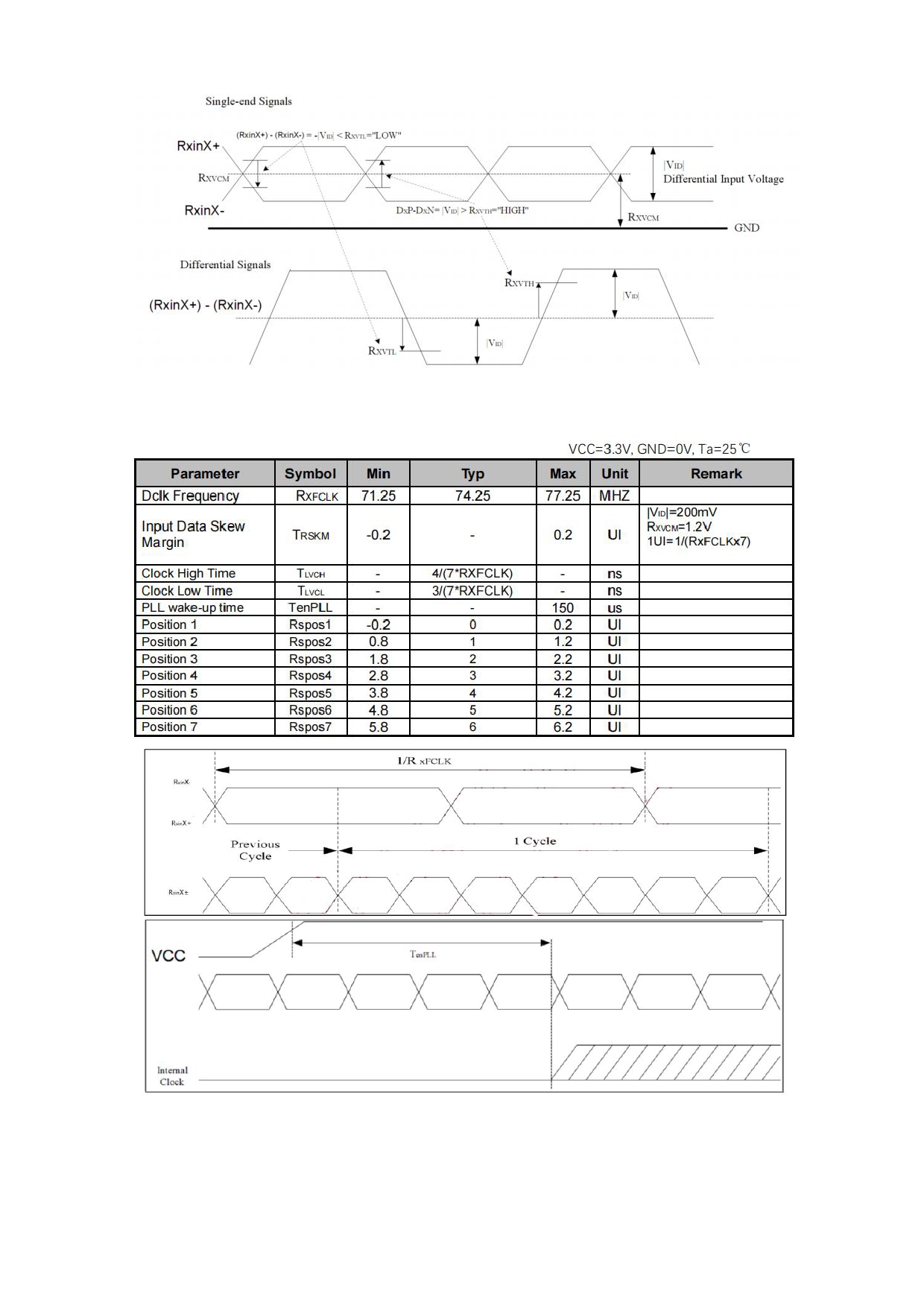

LVDS AC characteristics
URL: www.topwaydisplay.com
Document Name: LMT215FNQFWEA-Manual-Rev0.1.doc
Page: 7 of 13
TOPWAY
LCD Module User Manual
LMT215FNQFWEA
6.4

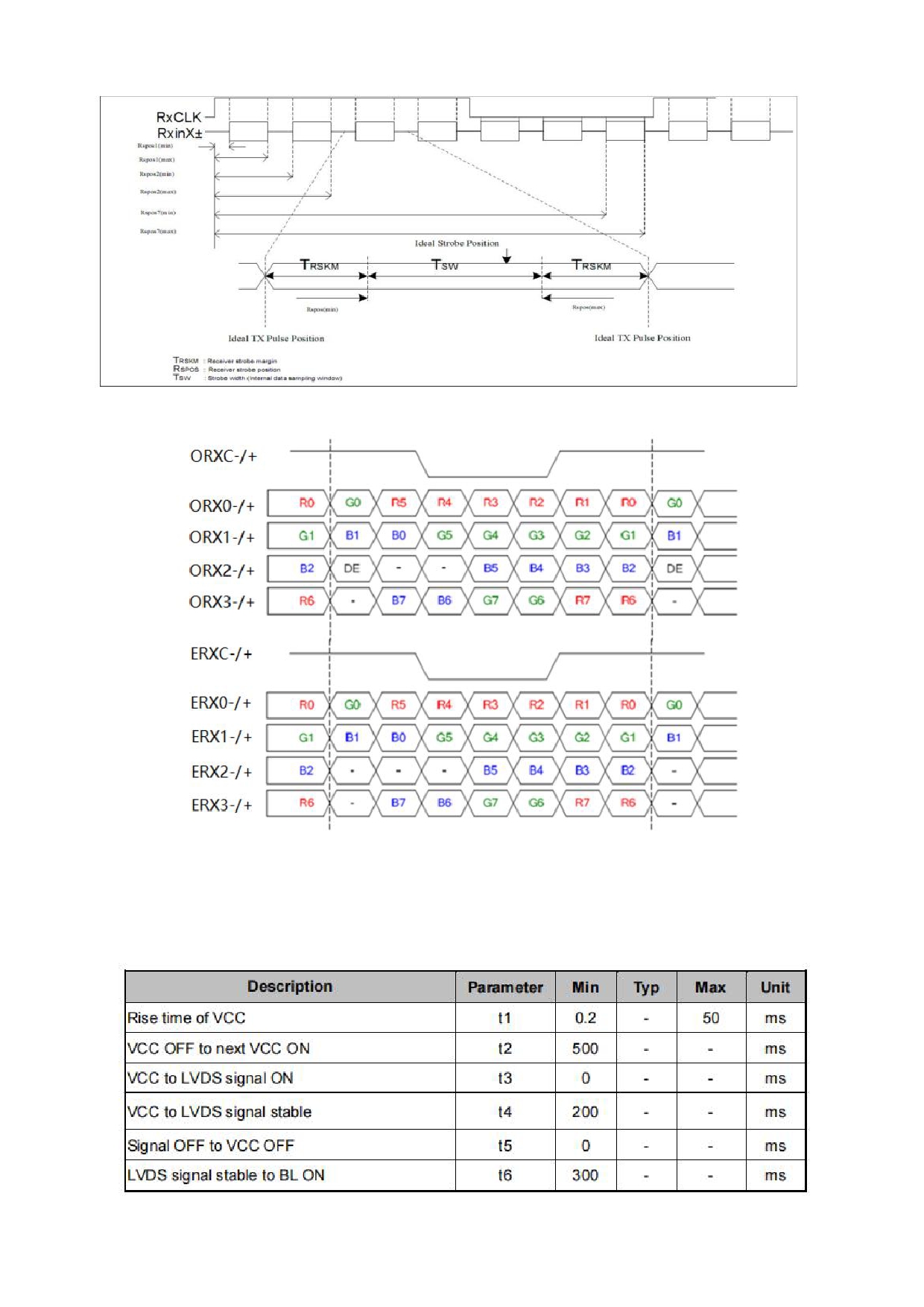

LVDS data mapping
Figure 6.4.1 LVDS 8bit data mapping
6.5

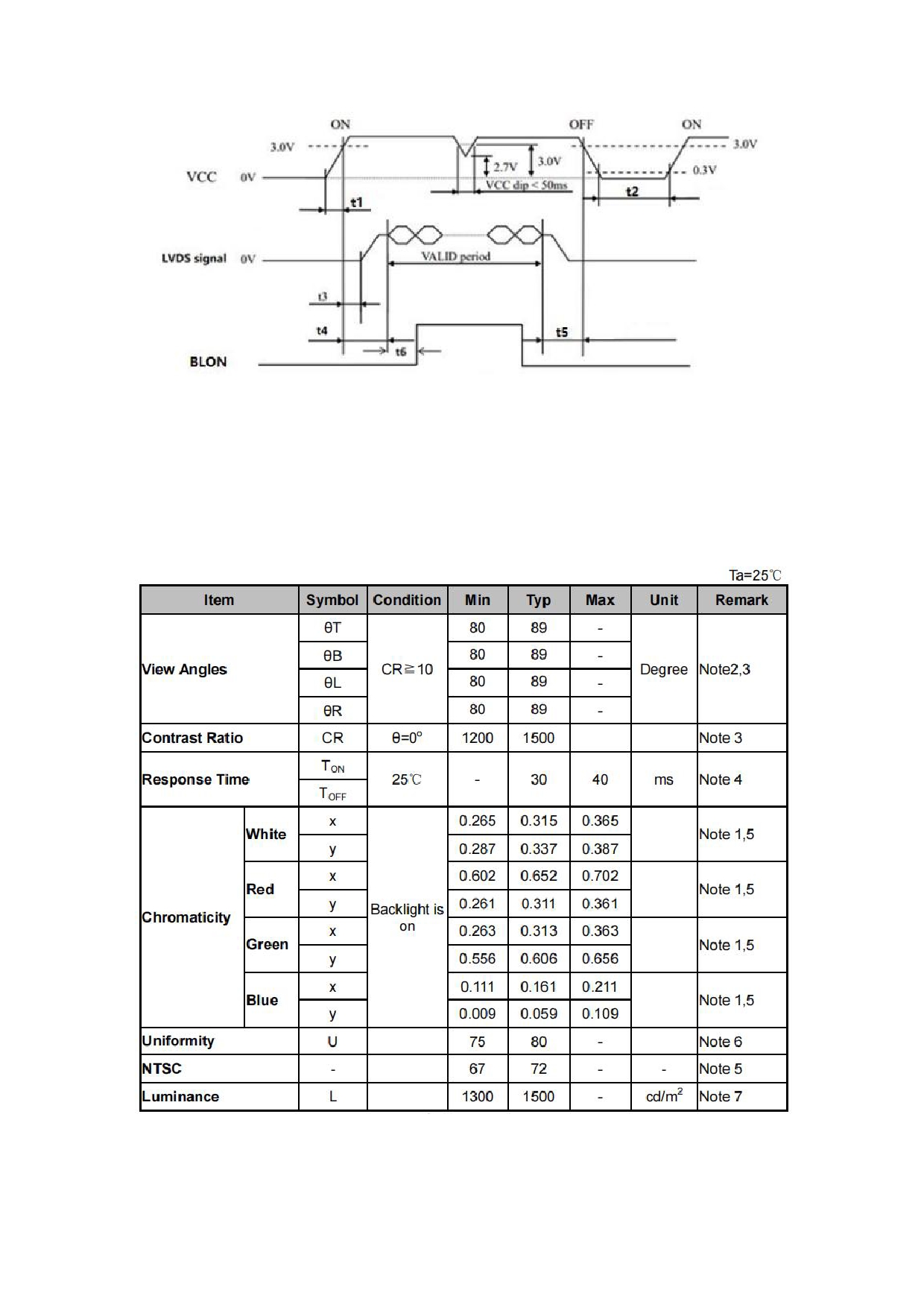

Recommended Power ON/OFF Sequence
URL: www.topwaydisplay.com
Document Name: LMT215FNQFWEA-Manual-Rev0.1.doc
Page: 8 of 13
TOPWAY
LCD Module User Manual
LMT215FNQFWEA
Note ：
1 . The low level of these signals and analog powers are GND level.
2 . All of the power and signals should be kept at GND level before power on. If there are residual voltages
on
them, the LCD might not work properly.
3 . Keep backlight turned off until the display has stabilized.
4 . LED driver input signal should follow VBL→E-PWM→BLON sequence.
7. Optical Characteristics
Test Conditions:
1. The ambient temperature is 25 ℃ .
2. The test systems refer to Note1 and Note2.

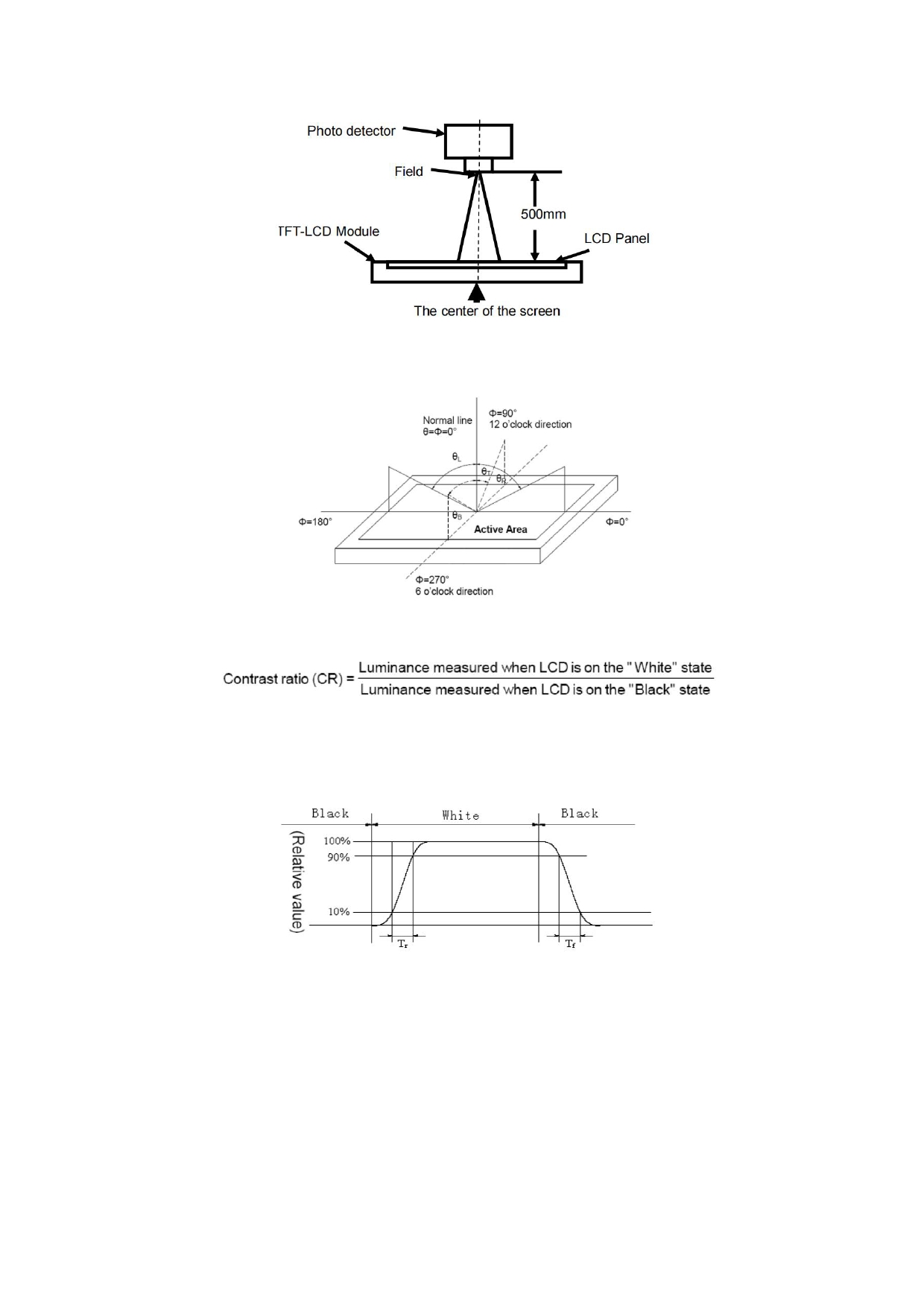

Note1: Definition of optical measurement system.
The optical characteristics should be measured in dark room. After 5 Minutes operation, the optical
URL: www.topwaydisplay.com
Document Name: LMT215FNQFWEA-Manual-Rev0.1.doc
Page: 9 of 13
TOPWAY
LCD Module User Manual
LMT215FNQFWEA
characteristics are measured at the center point of the LCD screen.
Measurement Set Up
Note2: Definition of viewing angle range and measurement system. Viewing angle is measured at the center
point of the LCD 。
Measurement viewing angle
Note3: Definition of contrast ratio
Note4: Definition of Response time
For SFT LCM, the response time is defined as the LCD optical switching time interval between
“ White ” state and “ Black ” state. Rise time (Tr) is the time between photo detector output
intensity changed from 10% to 90%. And fall time (Tf) is the time between photo detector output
intensity changed from 90% to 10%.
Note5: Definition of color chromaticity (CIE1931)
Color coordinates measured at center point of LCD.
Note6: Definition of Luminance Uniformity

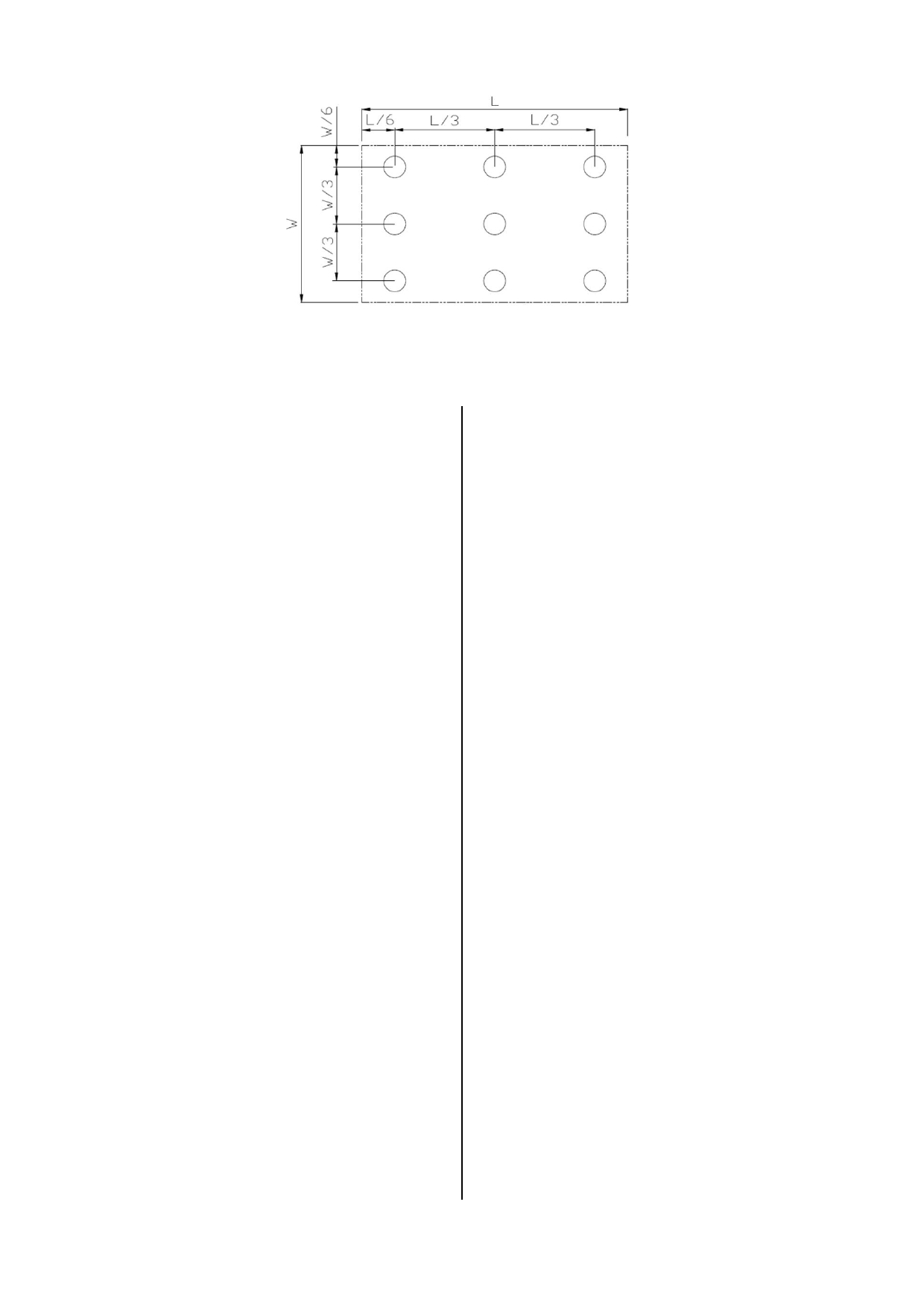

Active area is divided into 9 measuring areas (Refer Fig.5). Every measuring point is placed at the
center of each measuring area.
Luminance Uniformity (U) = Lmin/ Lmax
Lmax: The measured Maximum luminance of all measurement position.
Lmin: The measured Minimum luminance of all measurement position.
L-------Active area length; W----- Active area width
URL: www.topwaydisplay.com
Document Name: LMT215FNQFWEA-Manual-Rev0.1.doc
Page: 10 of 13
TOPWAY
LCD Module User Manual
LMT215FNQFWEA
Note7: Definition of Luminance:
Measure the luminance of white state at center point .
8. LCD Module Design and
8. 液晶显示模块设计和使用须知
Handling Precautions
- Please ensure V0, VCOM is adjustable, to enable LCD - 请注意 V0, VCOM 的设定 , 以确保液晶显示模块在不同
module get the best contrast ratio under different
的使用温度下以及在不同的视角和位置观察模块显
temperatures, view angles and positions.
示，均能达到最佳对比度，请务必将应用电路上设置
为对比度可调。
- Normally display quality should be judged under the - 请注意液晶显示模块的显示品质判定是指在正常对比
best contrast ratio within viewable area. Unexpected
度下以及视窗 (V.A) 范围内进行的，非正常对比度下液
display pattern may com out under abnormal contrast
晶可能会出现非预期的显示不良，应注意区分。
ratio.
- 请勿在最大额定值以外使用液晶显示模块。
- Never operate the LCD module exceed the absolute
maximum ratings.
- 请勿在没有接通电源的条件下，给液晶显示模块输送
- Never apply signal to the LCD module without power
信号。（禁止热插拔）
supply.
- 警告！使用前需评估液晶显示模块的金属框架 / 壳体地
（ No Hot-plugging ）
( 如有 ) 与整机关系和安全性 ( 如：漏电安全性，等 ) 。
- WARNING! Be aware of (if any) frame grounding of the
LCD Module connection with the system which may - 请尽可能缩短信号线的连接，以避免对液晶显示模块
cause safety issue(e.g. electric shock,etc).
的信号干扰。
- Keep signal line as short as possible to reduce external - 集成电路因 IC 芯片 ( 如 TAB 或 COG) 对紫外线极为敏
noise interference.
感，强光环境下可能会引起液晶显示模块功能失效，
- IC chip (e.g. TAB or COG) is sensitive to light. Strong
故应采用不透光的外壳。
light might cause malfunction. Light sealing structure - 请在液晶显示模块与外壳之间保留足够的空间 ( 可使用
casing is recommended.
衬垫 ) ，以缓冲外力对液晶显示模块的损坏或因受力不
均而产生的显示不匀等异常现象。
- Make sure there is enough space (with cushion)
between case and LCD panel, to prevent external force - 避免液晶显示屏在某一画面下长时间点亮，否则有出
passed on to the panel; otherwise that may cause
现残影的风险；请通过软件每隔一段时间改变一次画
damage to the LCD and degrade its display result.
面。
- Avoid showing a display pattern on screen for a long - 液晶显示模块的可靠性可能因温度冲击而降低。
time (continuous ON segment).
- 请勿在阳光直射、高湿、高温或低温下储存和使用液
晶显示模块，这将造成液晶显示模块的损坏或失效。
- LCD module reliability may be reduced by temperature
shock.
- 请勿在极限环境 ( 最大 / 最小存储 / 工作温度 ) 下使用或
- When storing and operating LCD module, avoids
放置液晶显示模块超过 48 小时以上。
exposure to direct sunlight, high humidity, high or low - 液晶显示模块建议存储条件为 : 0 ℃ ~40 ℃ <80%RH 。
temperature. They may damage or degrade the LCD
module.
- 请勿让液晶显示模块存储于带有 酸性 , 碱性 , 有害气
- Never leave LCD module in extreme condition
体环境之中。
(max./min storage/operate temperature) for more than - 在运输过程中 , 请勿让液晶显示模块跌落与猛烈震动 ,
48hr.
同时避免 异常挤压 , 高湿度 , 与 阳光照射
URL: www.topwaydisplay.com
Document Name: LMT215FNQFWEA-Manual-Rev0.1.doc
Page: 11 of 13
TOPWAY
LCD Module User Manual
LMT215FNQFWEA
- Recommend LCD module storage conditions is - 液晶显示模块极易受静电损坏，请务必保证液晶显示
0 ℃ ~40 ℃ <80%RH.
模块在防静电的工作环境中使用或保存。 ( 如 : 烙铁正
- LCD module should be stored in the room without acid,
确接地 , 等 )
alkali and harmful gas.
- 拿取液晶显示模块时需注意操作人员的接地情况。
- Avoid dropping & violent shocking during - 请手持液晶显示模块的边沿取放模块，防止热压纸或
transportation, and no excessive pressure press,
TAB 部位受力。
moisture and sunlight.
- 焊接液晶模块时，请注意控制烙铁的温度、焊接时
- LCD module can be easily damaged by static
间，以免烫坏导光板或偏光片，导致显示不匀等不良
electricity. Please maintain an optimum anti-static
现象发生。
working environment to protect the LCD module. (eg. - 请勿使用洗板水等腐蚀性液体接触液晶模块，以免腐
ground the soldering irons properly)
蚀导光板或模块电路。
- Be sure to ground the body when handling LCD
module.
- 仅可使用柔软的干布 , 异丙醇或乙醇清洁液晶屏表
- Only hold LCD module by its sides. Never hold LCD
面，其他任何溶剂 ( 如 : 水 ) 都有可能损坏液晶模块。
module by applying force on the heat seal or TAB.
- 请勿挤压液晶显示模块上的元器件，以避免产生潜在
- When soldering, control the temperature and duration
的损坏或失效而影响产品可靠性。
avoid damaging the backlight guide or diffuser which - 装配液晶显示模块时，请务必注意避免液晶显示模块
might degrade the display result such as uneven
的扭曲或变形。
display.
- 请勿挤压液晶显示屏表面，这将导致显示颜色的异
- Never let LCD module contact with corrosive liquids,
常。
which might cause damage to the backlight guide or - 液晶屏由玻璃制作而成，任何机械碰撞 ( 如从高处跌
the electric circuit of LCD module.
落 ) 均有可能损坏液晶显示模块。
- Only clean LCD with a soft dry cloth, Isopropyl Alcohol - 液晶屏表面带有保护膜 , 揭除保护膜时需要注意可能
or Ethyl Alcohol. Other solvents (e.g. water) may
产生的静电。
damage the LCD.
- 因液晶显示屏表面的偏光片极易划伤，安装完成之前
- Never add force to components of LCD module. It may
请尽量不要揭下保护膜。
cause invisible damage or degrade the module's - 请缓慢揭除保护膜，在此过程中液晶显示屏上可能会
reliability.
产生静电线，此为正常情况，可在短时间内消失。
- When mounting LCD module, please make sure it is
free from twisting, warping and bending.
- 请注意避免被液晶显示屏的边缘割伤。
- Do not add excessive force on surface of LCD, which - 请不要试图拆卸或改造液晶显示模块。
may cause the display color change abnormally.
- 当液晶显示屏出现破裂 , 内部液晶液体可能流出 ; 相
- LCD panel is made with glass. Any mechanical shock
关液体不可吞吃 , 绝对不可接触嘴巴 , 如接触到皮肤
(e.g. dropping from high place) will damage the LCD
或衣服 , 请使用肥皂与清水彻底清洗 .
module.
- Protective film is attached on LCD screen. Be careful
when peeling off this protective film, since static
electricity may be generated.
- Polarizer on LCD gets scratched easily. If possible, do
not remove LCD protective film until the last step of
installation.
- When peeling off protective film from LCD, static
charge may cause abnormal display pattern. The
symptom is normal, and it will turn back to normal in a
short while.
- LCD panel has sharp edges, please handle with care.
- Never attempt to disassemble or rework LCD module.
- If display panel is damaged and liquid crystal
substance leaks out, be sure not to get any in your
mouth, if the substance comes into contact with your
skin or clothes promptly wash it off using soap and
water.
URL: www.topwaydisplay.com
Document Name: LMT215FNQFWEA-Manual-Rev0.1.doc
Page: 12 of 13
TOPWAY
LCD Module User Manual
LMT215FNQFWEA
Warranty
This product has been manufactured to our company’s specifications as a part for use in your company’s general
electronic products. It is guaranteed to perform according to delivery specifications. For any other use apart from general
electronic equipment, we cannot take responsibility if the product is used in medical devices, nuclear power control
equipment, aerospace equipment, fire and security systems, or any other applications in which there is a direct risk to
human life and where extremely high levels of reliability are required. If the product is to be used in any of the above
applications, we will need to enter into a separate product liability agreement.
- We cannot accept responsibility for any defect, which may arise form additional manufacturing of the product
(including disassembly and reassembly), after product delivery.
- We cannot accept responsibility for any defect, which may arise after the application of strong external force to the
product.
- We cannot accept responsibility for any defect, which may arise due to the application of static electricity after the
product has passed our company’s acceptance inspection procedures.
- When the product is in CCFL models, CCFL service life and brightness will vary according to the performance of the
inverter used, leaks, etc. We cannot accept responsibility for product performance, reliability, or defect, which may
arise.
- We cannot accept responsibility for intellectual property of a third part, which may arise through the application of our
product to our assembly with exception to those issues relating directly to the structure or method of manufacturing of
our product.
URL: www.topwaydisplay.com
Document Name: LMT215FNQFWEA-Manual-Rev0.1.doc
Page: 13 of 13
