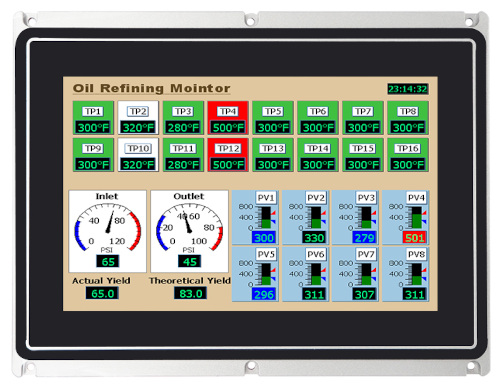

10.1" TFT LCD HMI Display – Built for Professional Applications
High-Performance Display for Industrial, Medical, Retail, and Embedded Systems
Whether you're building a next-generation HMI panel, medical device, or interactive kiosk, our 10.1" TFT LCD is engineered to deliver reliable, vibrant performance — even in demanding environments.
Key Features at a Glance
- Display Size: 10.1 inch diagonal
- Resolution: 1280x800 / 1024x600 options available
- Brightness: Up to 1000 nits for sunlight readability
- Touchscreen Options: Capacitive / Resistive / Non-touch
- Viewing Angle: IPS wide viewing (170°) available
- Interface: LVDS / RGB / HDMI / eDP
- Operating Temp: -20°C to +70°C / extended industrial range available
Designed for Industry, Ready for Integration
Our 10.1” TFT LCD modules are trusted across industries for their rugged reliability, long-term availability, and customization flexibility.

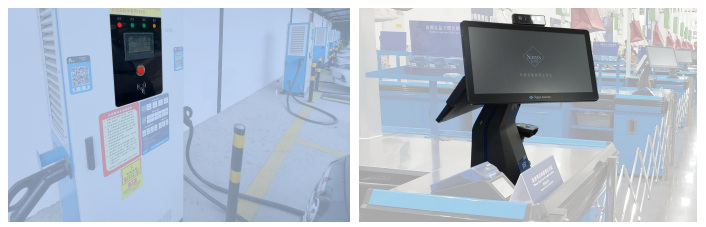

Common Applications
- Industrial HMI panels & automation controls - Used in factory automation, CNC machines, and control panels. Big enough to show multi-layer menus, charts, and diagnostics. Often paired with capacitive or resistive touchscreens.
- Retail POS terminals & digital signage - Widely used in POS terminals, self-service kiosks, and interactive signage. Can show product images, prices, promotions, and transaction info clearly.
- Medical monitors & diagnostic equipment - Integrated into portable diagnostic systems, patient monitors, and infusion pumps. High brightness and wide viewing angles (especially IPS panels) improve readability in clinical settings.
- Smart home / building control units - Acts as a central wall-mounted control unit for lighting, HVAC, and security. Sleek design and touch interface suit modern aesthetics.
- Vehicle and outdoor machine interfaces - Found in public transport ticketing machines, fleet management systems, and in-vehicle infotainment. Ruggedized options with wide temperature range, IK65 IP08 and anti-glare coatings are common.
- Test & Measurement Instruments - Oscilloscopes, signal analyzers, or diagnostic tools use 10.1 inch TFT display to present complex data graphs and controls clearly.
- Agriculture & Heavy Machinery Displays - Mounted in tractors, construction vehicles, and harvesters for telemetry, GPS, and system diagnostics. Needs high brightness (often 800+ nits), sunlight readability, and rugged enclosure.
Why 10.1" TFT Displays Are Popular?
| Feature | Benefit |
|---|---|
| Balanced Size | Big enough for detailed UIs, small enough for integration. |
| Wide Availability | It is a common size with variations: standard, IPS, sunlight-readable, touch or non-touch. |
| Customization Options | Easy to tailor for brightness, interfaces (LVDS, eDP, HDMI, RGB), and cover glass. |
| Cost-Effective | Affordable compared to larger panels, especially in volume. |
| Versatile Interface Support | LVDS, eDP, HDMI, RGB making prototyping and integration easy. |
Why Choose Our 10.1" TFT Displays?
Long-Term Supply & Support
We work closely with Tier-1 panel manufacturers to ensure product longevity, version control, and lifecycle transparency — ideal for long-term industrial projects.
Customization Services
Need a specific FPC layout, anti-glare coating, cover lens printing, or mechanical design? We offer full customization to fit your system needs.
Fast Prototyping & Sample Support
Quick delivery for samples and technical documentation to speed up your R&D timeline.
Global Distribution & Support
Serving clients in North America, Europe, and Asia — with multilingual support and flexible logistics.
Talk to Our Display Experts Today
Ready to evaluate or integrate a 10.1” display into your next project?
Get in touch for technical drawings, datasheets, pricing, and customization consultation.
Contact Us Now or email sales@topwaydisplay.com
Need a Display for Harsh Environments or Medical Certifications?
Ask us about high brightness, optical bonding, and ISO-certified options.
