TFT Touch Display for Scales

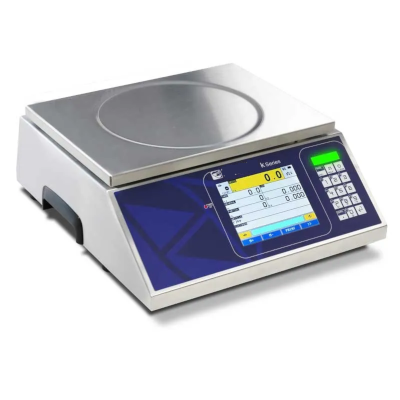

Modern retail and industrial weighing applications demand reliable, easy-to-read interfaces. A TFT touch display for scales can transform user experience, providing sharp graphics and intuitive input where legacy segmented or monochrome displays fall short. The 10.1″ Topway LMT101ENMFWD-NND module, for example, is engineered to meet these demands head-on. It delivers high brightness and contrast, wide viewing angles, rugged construction, and a capacitive touch panel – all optimized for demanding scale environments. In this article, we’ll explore how this tft touch display overcomes common scale challenges (visibility, durability, accuracy) and how its advanced specs (resolution, brightness, temperature range, etc.) translate into real-world benefits for both engineers and end users. We’ll also frame its advantages in human-centered terms – comfort and safety for operators and efficiency for the business.
Why Choose a TFT Touch Display for Scales?
Traditional weighing scales often use simple segment or character displays. In contrast, a TFT (thin-film transistor) LCD can show full-color graphics, text, and intuitive controls. TFT modules have high resolution and color accuracy – “capable of displaying millions of colors” – enabling vivid, detailed images. For scale applications, this means large goods picture, clear digits, icons for units/alarms, and even interactive menus can be shown with ease. Operators instantly recognize a modern, smartphone-like UI.
Equipping a scale with a capacitive touch panel (as in the LMT101ENMFWD-NND) makes the interface feel familiar and easy: taps and gestures replace mechanical keys. This precise capacitive touch recognition ensures quick response and low fatigue, much like using a tablet. For example, a cashier can effortlessly tap to zero the scale or switch units on the fly, without looking for tiny buttons. In contrast to resistive (pressure-based) touchscreens, capacitive panels require no pressure or stylus, improving reliability over time. In short, a TFT touch display helps make scale operation faster and more intuitive – a significant gain in busy retail or industrial settings.
Exceptional Clarity: Brightness, Contrast, and Viewing Angle
An important advantage of the LMT101ENMFWD-NND is its brilliant visual performance. It sports a 1024×600 (WXGA) pixel resolution on a 10.1″ screen, yielding crisp, easy-to-read text and graphics. The LED backlight provides around 300 cd/m² brightness, bright enough for most indoor or moderately lit environments. In practice, this means the display stays visible under fluorescent warehouse lighting or in a retail storefront: operators don’t need to strain their eyes or adjust to dim numbers. A high contrast ratio (500:1) ensures that displayed content stands out clearly. Combined with these specs, the screen’s anti-glare (AG) coating minimizes reflections under overhead lights.
Wide viewing angles further enhance usability. The module is designed with up to 160° total horizontal and vertical viewing ~70° each side, so the weight can be read easily from different positions. And high-contrast, wide-angle screens ensure easy readability in any lighting condition — from bright warehouses to dimly lit shops. This means multiple people (cashier, customers, supervisors) can see the same clear information at once, even if they approach from an angle. In short, the LMT101ENMFWD-NND delivers “precise measurements and clear visibility” with “durable displays for weigh scales, designed for accuracy and reliability”.
Key Visual Specifications: following table highlights the display's core features:
| Specification | Value |
|---|---|
| Size | 10.1 inch |
| Resolution | 1024x600 pixels |
| Contrast Ratio | 500:1 |
| Brightness | 300 cd/m² |
| Viewing Angle | ~160° |
| Surface Treatment | Anti-Glare, Hard coating |
| Viewing Direction | 6 o'clock |
These specifications translate directly into on-the-job advantages. For example, a food-scale operator in a well-lit market will see the weight and price figures clearly on the screen, reducing errors and speeding up checkouts. In factory environments with harsh lighting or dusty conditions, the high brightness and anti-glare surface ensure the display remains legible. Overall, the technical data backs up the promise of a high-performance display for scales of all kinds.
Built for Rugged Environments and Reliability
In industrial and public settings, durability isn’t optional – it’s mandatory. TFT displays must withstand bumps, dust, temperature swings, and long service life without failing. The LMT101ENMFWD-NND addresses this with an industrial-grade design. Its temperature range is -20°C to +70°C
(storage to +80°C), covering freezer storage rooms up to hot factory floors. This far exceeds typical consumer displays (often only 0–50°C), so the scale won’t blink out in extreme heat or chill.
Surface durability is also key. The module’s front is treated with a hard coating (and anti-glare finish), making it scratch-resistant and easy to clean. This prevents everyday wear (from cleaning chemicals, contact with tools or carts) that could otherwise impair the screen. In fact, designers are encouraged to use a gasket and support bracket for added protection, a reminder that the glass panel is built for longevity. Also, the LMT101ENMFWD-NND’s solid construction (LED backlight, no moving parts) and robust mounting make it inherently shock-resistant. In practice, this means the display can survive the knocks and vibrations common around scales (forklifts, conveyor impacts, people bumping into equipment). By meeting these ruggedness requirements, the 10.1″ TFT module helps ensure the scale continues working without surprises, aligning with operators’ safety needs.
Precision Touch Control for Operator Efficiency
A standout feature of this module is its projected capacitive touch panel (CTP). Unlike basic resistive screens, a capacitive touch glass is very precise and responsive. Users simply touch with a finger (or light stylus) – no pressure needed. This accuracy is crucial in scales: it means operators can reliably tap small on-screen buttons to tare, change units, or access functions even in fast-paced scenarios. Because it’s capacitive, the display supports features like multi-touch and swipe gestures (though scale UIs rarely need more than one finger). The touch controller (ILI2511) can interface via USB or I2C, making it easy to connect to modern embedded systems.
The improved touch accuracy directly boosts productivity. For instance, in a busy packing area, a worker can instantly select next item or confirm a weight reading with a tap – operations that might be sluggish on a resistive screen are quick here.
Ease of Integration with Standard Interfaces
Scale engineers will appreciate the module’s standard signal and power requirements. It uses a 24-bit parallel RGB interface – a common digital input for embedded display controllers and GPUs. The data sheets list a 3.3V digital supply (for logic) and 5V for the touch panel and LED backlight, aligning with the voltages already present in most electronic systems. In practice, this means you can power the display from typical 3.3V and 5V rails; no exotic voltages are needed.
Hookup is further simplified by typical 50-pin connectors for the LCD and touch panel (per the manual). For example, the display’s FPC connector carries RGB data, sync signals, and timing. Engineers can follow the standard power-on/off sequences from the datasheet to ensure safe startup. The TFT’s backlight uses white LEDs rated at 20 mA per string (the brightness spec was measured at IF=20mA) – that’s a modest power draw given the screen size. Overall, the consumption is low enough to run off the same 5V supply that might power a controller or other sensors. In short, the module is “plug-and-play” with typical scale electronics.
In practical terms, easy integration means faster development time. A scale manufacturer can swap in this TFT module without redesigning the entire electronics. The module’s slim profile (5 mm thick panel) also helps mechanical design – it will fit standard panel cutouts. Every hour saved in engineering translates into quicker time-to-market for the new scale model.
Conclusion
Integrating a TFT touch display for scales like the Topway LMT101ENMFWD-NND gives designers a competitive edge and makes life easier for end users. Its bright, high-contrast 10.1″ screen ensures weights are seen at a glance; its capacitive touch panel offers modern, responsive control; and its industrial design survives the harshest retail and factory floors. The module’s datasheet-backed specs (1024×600 resolution, 300 cd/m², wide temperature range, etc.) directly address the common pain points of scale applications – visibility, durability, and ease of use.
Topway has been delivering TFT LCD to scale manufacturers for more than 15 years. We have the know-hows and varieties of 10.1 inch displays with different luminance, resolutions and touch technologies for scale application.
