10.1" Color TFT LCD Module LVDS 1280x800
Informations
Resolution
1280x800
Interface
LVDS
Voltage
3.3V
Temperature
-20°C ~ 70°C
Wide Viewing Angle
Yes

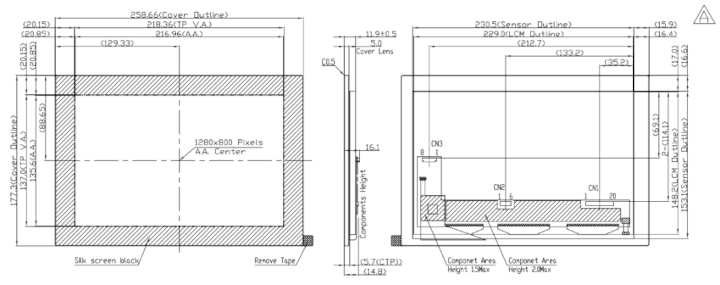

Outline
258.66mm x 177.30mm x 15.45mm
Size
10.1"
Active Area
216.96mm x 135.60mm
Touch Screen
CTP
High Brightness 10.1 Inch TFT LCD
High brightness (850 cd/m²) TFT LCD with heavy duty weather proofed capacitive touchscreen is perfect for outdoor applications. IPS technology provides vivid color in all-around perspective. High-speed LVDS interface enables rich and precise content can be shown on screen. It is good for embedded applications like EV charging pile and medical monitor.
